Genesis 22185009 18/10 Stranded Shielded Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, Gray
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.

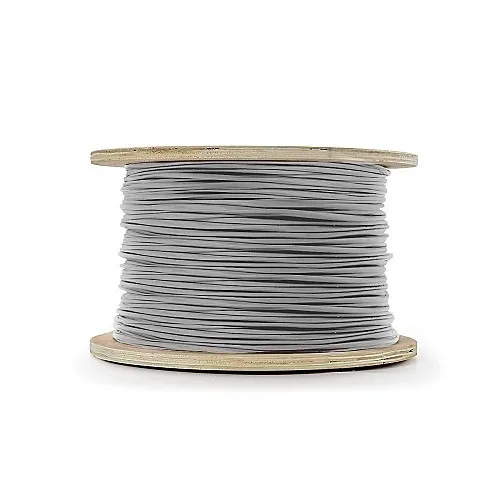

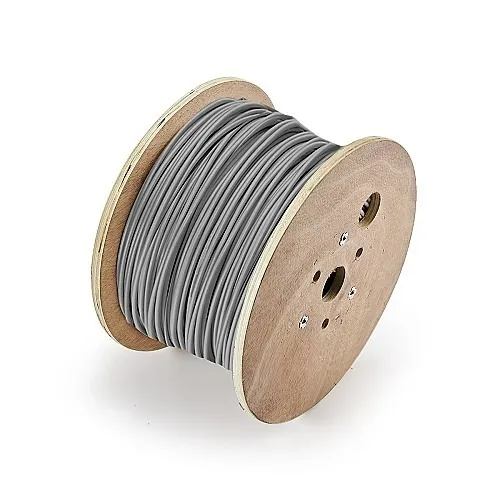

Image of 3
Key Features
- Preserves signal integrity: foil shielding and 18 AWG stranded bare copper reduce EMI/RFI for dependable security and surveillance performance
- Installation-friendly: durable rip cord and countdown length markings speed jacket stripping and jobsite management on a 500' reel
- Riser-rated durability: FT4/CMR PVC jacket and UV resistance ensure safe, code-compliant vertical runs in commercial buildings
- Versatile low-voltage solution: 10 conductors (5 pairs) support audio, access control, monitoring, and other security systems
- Compliance and support: RoHS/REACH and TAA compliant with a 3-year limited warranty for procurement confidence
Quick Specifications
- Product Model
- 22185009
- Brand Name
- Genesis
- Product Name
- 22185009 - 18 AWG 10C STR Shielded Riser, Gray, 500 FT. Reel
- Product Type
- Access & Security Cable
Explore the details
Product information
22185009
Overview
Deliver reliable, low-noise wiring for your security and surveillance systems with the Genesis 22185009 18/10 stranded shielded cable. Designed as a riser (CMR) multi-conductor cable on a 500' reel, this Genesis cable combines a foil shield over all conductors and stranded 18 AWG bare copper to minimize interference and protect sensitive signals used by access control, monitoring, audio, and camera systems. The FT4-rated PVC jacket and sunlight-resistant construction provide durable performance in vertical building runs, while installation features like a durable rip cord and countdown length markings reduce labor time and material waste. Rated for 300 V and operating from -20 °C to 75 °C, this cable suits a wide range of indoor low-voltage applications. TAA and RoHS/REACH compliance plus a 3-year limited warranty make it a practical choice for enterprise and municipal projects. Specify the Genesis 22185009 riser shielded cable when you need interference-resistant, installer-friendly cabling for security, surveillance and access control deployments—order a 500' reel for your next install or retrofit.
Features
- Preserves signal integrity: foil shielding and 18 AWG stranded bare copper reduce EMI/RFI for dependable security and surveillance performance
- Installation-friendly: durable rip cord and countdown length markings speed jacket stripping and jobsite management on a 500' reel
- Riser-rated durability: FT4/CMR PVC jacket and UV resistance ensure safe, code-compliant vertical runs in commercial buildings
- Versatile low-voltage solution: 10 conductors (5 pairs) support audio, access control, monitoring, and other security systems
- Compliance and support: RoHS/REACH and TAA compliant with a 3-year limited warranty for procurement confidence
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 22185009 - 18 AWG 10C STR Shielded Riser, Gray, 500 FT. Reel |
| Product Type | Access & Security Cable |
| Product Model | 22185009 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 22185009 |
| Technical Information | |
| Material | Bare Copper |
| Shielding | Yes |
| Cable Type | Multi-conductor, Multi-pair |
| Jacket Type | FT4, Riser |
| Cable Rating | Riser |
| Conductor Count | 5 |
| Jacket Material | PVC |
| Number of Pairs | 5 |
| Device Supported | Audio Devices, Low Voltage applications, Security |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 10 |
| Connector on First End | Bare Wire |
| Core/Cladding Diameter | 18/10 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Gray |
| Weight | 33.50 lb |
| Cable Length | 500' |
| Package Type | Reel |
| Insulation Material | PP |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
