Genesis 22191009 18/12 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, Gray
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.

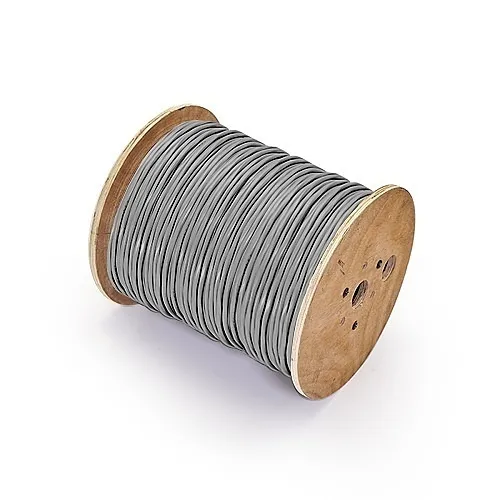

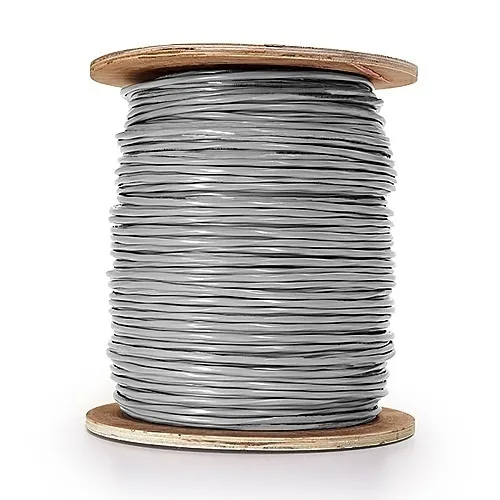

Image of 3
Key Features
- Preserves signal integrity in noisy environments with full foil shielding, reducing interference for security and surveillance systems
- Flexible stranded 18 AWG conductors simplify routing and terminations during installs in tight conduit and racks
- 12-conductor (18/12) design on a 1000' reel gives installers the length and pair count needed for multi-camera, audio or access control runs
- Riser-rated CMR / FT4 jacket and sunlight-resistant PVC provide safe vertical indoor routing and long-term durability
- Installer-friendly features like rip cord and countdown length markings speed deployment and reduce waste on job sites
Quick Specifications
- Product Model
- 22191009
- Brand Name
- Genesis
- Package Type
- Reel/Spool
- Product Name
- 22191009 - 18 AWG 12C STR Shielded Riser, Gray, 1000 FT. Reel
Explore the details
Product information
22191009
Overview
Ensure reliable, interference-free signal transmission for security, surveillance and monitoring systems with the Genesis 22191009 riser shielded cable. This Genesis shielded multiconductor cable combines stranded 18 AWG bare copper conductors and a full foil shield to protect sensitive audio, alarm and video signals from electromagnetic interference — so cameras, access control panels and monitoring equipment perform consistently. Supplied on a 1000' (304.8 m) reel, the 12-conductor (18/12) configuration supports multi-camera or multi-device runs without the need for splices. The CMR/FT4-rated PVC jacket permits safe vertical riser installations in buildings, while sunlight resistance and RoHS/TAA compliance ensure long-term, code-friendly deployments. Installer-focused details — including a durable rip cord and countdown length markings — cut installation time and material waste. Backed by a 3-year limited warranty, the Genesis 22191009 is ideal for CCTV, access control, paging and other low-voltage security applications. Order a reel today or contact our sales team to specify this cable for your next security or monitoring project.
Features
- Preserves signal integrity in noisy environments with full foil shielding, reducing interference for security and surveillance systems
- Flexible stranded 18 AWG conductors simplify routing and terminations during installs in tight conduit and racks
- 12-conductor (18/12) design on a 1000' reel gives installers the length and pair count needed for multi-camera, audio or access control runs
- Riser-rated CMR / FT4 jacket and sunlight-resistant PVC provide safe vertical indoor routing and long-term durability
- Installer-friendly features like rip cord and countdown length markings speed deployment and reduce waste on job sites
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Package Type | Reel/Spool |
| Product Name | 22191009 - 18 AWG 12C STR Shielded Riser, Gray, 1000 FT. Reel |
| Product Type | Security & Control Cables |
| Product Model | 22191009 |
| Country of Origin | US |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 22191009 |
| Technical Information | |
| Armored | No |
| Shielding | Yes |
| Jacket Type | FT4, TC |
| Cable Rating | Riser |
| Conductor Count | 6 |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 12 |
| Core/Cladding Diameter | 18/12 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Gray |
| Weight | 79.40lb |
| Cable Length | 1000.00' |
| Jacket Material | PVC |
| Insulation Material | PP |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmental Certification | RoHS |
