Genesis 22211009 16/2 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, Gray

SKU: 22211009 Genesis

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Genesis 22211009 16/2 Stranded Shielded Riser Cable, 1000' (304.8m) Reel, Gray

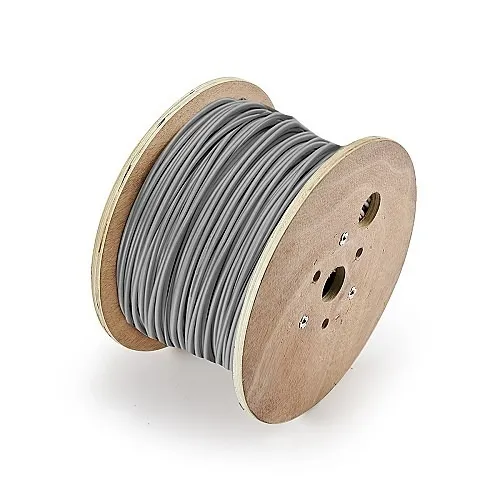

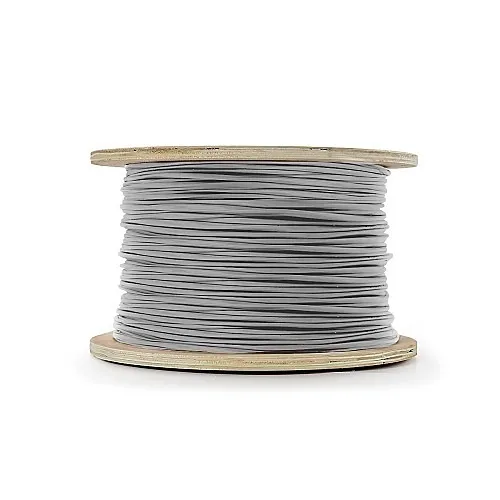

Product images for Genesis 22211009 16/2 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Reel, Gray. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Reduces electrical noise and crosstalk to preserve clear, reliable signals for security, surveillance and monitoring systems
  • Flexible 16 AWG stranded bare copper conductors for easier pulls and dependable low-voltage power delivery
  • Foil shield and PVC jacket with CMR/FT4 riser rating for code-compliant building riser installations
  • 1000' reel with countdown length markings and rip cord speeds installation and inventory management
  • UV and temperature rated materials with RoHS/TAA compliance and a 3-year limited warranty for long-term project confidence

Quick Specifications

Product Model
22211009
Brand Name
Genesis
Product Name
22211009 - 16 AWG 2C STR Riser, Gray, 1000 FT. Reel
Product Type
Access & Security Cable
View Full Technical Specifications

Product Information Tabs

Overview

Deliver clean, dependable signal and power for your security and surveillance installs with the Genesis 22211009 shielded riser cable. Designed as a professional access & security cable, this 16 AWG 2-conductor stranded cable uses bare copper conductors and a continuous foil shield to minimize interference and maintain signal integrity in monitoring and low-voltage systems. The CMR/FT4-rated PVC jacket makes it suitable for riser spaces between floors, while the 1000' gray reel and countdown markings streamline pulls and jobsite inventory. Installers appreciate the stranded flexibility, durable rip cord for fast jacket removal, and UV/temperature resistance for consistent performance. TAA and RoHS compliant construction plus a 3-year limited warranty help keep projects on spec and on schedule. Ideal for CCTV, access control, alarm and other structured low-voltage applications, the Genesis 22211009 offers a cost-effective way to protect sensitive security signals from electrical noise. Order this Genesis riser shielded cable for reliable, code-compliant runs in commercial and multi-tenant buildings, or contact our sales team for bulk and project quoting.

Features

  • Reduces electrical noise and crosstalk to preserve clear, reliable signals for security, surveillance and monitoring systems
  • Flexible 16 AWG stranded bare copper conductors for easier pulls and dependable low-voltage power delivery
  • Foil shield and PVC jacket with CMR/FT4 riser rating for code-compliant building riser installations
  • 1000' reel with countdown length markings and rip cord speeds installation and inventory management
  • UV and temperature rated materials with RoHS/TAA compliance and a 3-year limited warranty for long-term project confidence
General Information
Brand Name Genesis
Manufacturer Genesis Cable
Product Name 22211009 - 16 AWG 2C STR Riser, Gray, 1000 FT. Reel
Product Type Access & Security Cable
Product Model 22211009
Packaged Quantity 1
Manufacturer Part Number 22211009
Technical Information
Material Bare Copper
Shielding Yes
Cable Type Multi-conductor, Multi-pair
Jacket Type FT4, Riser
Cable Rating Riser
Conductor Count 1
Jacket Material PVC
Number of Pairs 1
Solid or Stranded Stranded
Conductor Material Bare Copper
American Wire Gauge 16AWG
Number of Conductors 2
Connector on First End Bare Wire
Core/Cladding Diameter 16/2
Connector on Second End Bare Wire
Certifications
TAA Compliant Yes
Others
Model Number Replaces 12211009
Physical Characteristics
Color Gray
Weight 26.20 lb
Cable Length 1000'
Package Type Reel
Insulation Material PP
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Stranded
Indoor/Outdoor Indoor
Country of Origin US
Environmentally Friendly Yes
Environmental Certification RoHS
