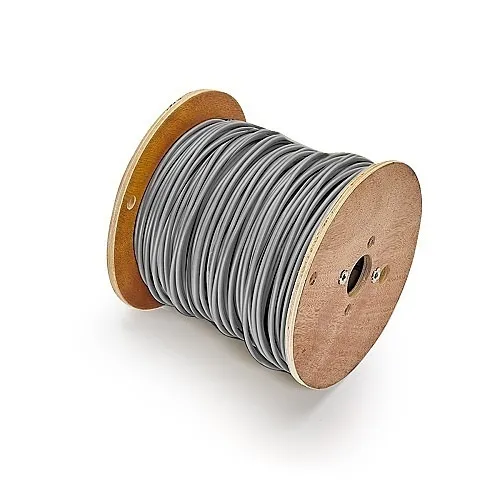

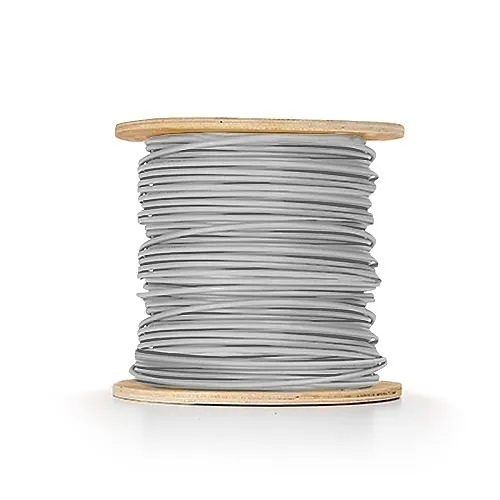

Genesis 22215009 16/2 Stranded Shielded Cable, Riser, CMR, FT4, 500' (152.4 m) Reel, Gray
Image of 3
Key Features
- Minimizes electrical noise and interference to ensure reliable video, alarm and access-control signals
- Durable stranded bare copper for flexible runs and low voltage drop over long 500' installations
- Foil shield plus PVC jacket for consistent protection in riser (CMR) pathways and FT4 vertical shafts
- Built-in rip cord and countdown length markings speed installation and reduce labor time on reels
- Sunlight-resistant, RoHS-compliant construction with a 3-year limited warranty for long-term performance
Quick Specifications
- Product Model
- 22215009
- Brand Name
- Genesis
- Product Name
- 22215009 - 16 AWG 2C STR Riser, Gray, 500 FT. Reel
- Product Type
- Access & Security Cable
Explore the details
Product information
22215009
Overview
Built for dependable security and surveillance installations, the Genesis 22215009 16/2 stranded shielded riser cable delivers clean, interference-free signal runs for CCTV, alarm, access control and monitoring systems. This Genesis riser cable combines a foil shield over the conductors with stranded bare copper (16 AWG, 2 conductors) to reduce EMI and maintain signal integrity across long distances. Supplied on a 500' (152.4 m) reel and rated CMR/FT4, it installs neatly in riser shafts and vertical pathways where fire and safety ratings matter.
Installers will appreciate practical features that save time: a durable rip cord for fast jacket removal and countdown length markings for accurate measuring during deployment. The PVC jacket is sunlight resistant for added durability in exposed indoor areas, and the cable is RoHS/REACH compliant and rated for 300V operation. Ideal for monitoring, surveillance and security system cabling, this Genesis shielded multi-conductor cable balances performance, flexibility and code-compliant protection. Order the 22215009 reel for your next security or access-control project and streamline installations with consistent, low-noise signal runs.
Features
- Minimizes electrical noise and interference to ensure reliable video, alarm and access-control signals
- Durable stranded bare copper for flexible runs and low voltage drop over long 500' installations
- Foil shield plus PVC jacket for consistent protection in riser (CMR) pathways and FT4 vertical shafts
- Built-in rip cord and countdown length markings speed installation and reduce labor time on reels
- Sunlight-resistant, RoHS-compliant construction with a 3-year limited warranty for long-term performance
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 22215009 - 16 AWG 2C STR Riser, Gray, 500 FT. Reel |
| Product Type | Access & Security Cable |
| Product Model | 22215009 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 22215009 |
| Technical Information | |
| Material | Bare Copper |
| Shielding | Yes |
| Cable Type | Multi-conductor, Multi-pair |
| Jacket Type | FT4, Riser |
| Cable Rating | Riser |
| Conductor Count | 1 |
| Jacket Material | PVC |
| Number of Pairs | 1 |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 16AWG |
| Number of Conductors | 2 |
| Connector on First End | Bare Wire |
| Core/Cladding Diameter | 16/2 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Gray |
| Cable Length | 500' |
| Package Type | Reel |
| Insulation Material | PP |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
