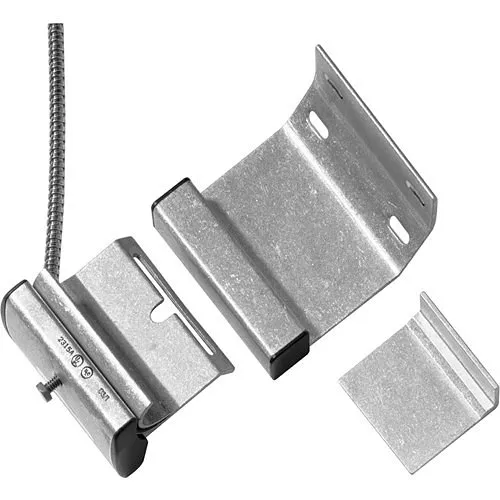

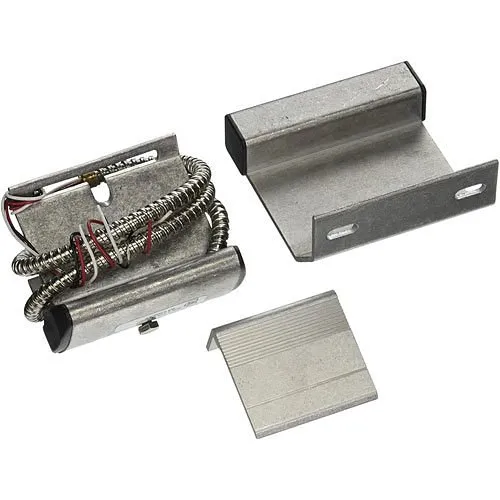

Edwards Signaling 2300 Series Panel Door Magnetic Contact, IP67, -40 to 150 temp range, aluminum housing, 100V op voltage, 0.5A, 7.5W/VA, normally open, track mount 18 in SS armored lead, 3" gap
Image of 1
Key Features
- Durable, weatherproof design (IP67) keeps overhead door sensors reliable in harsh environments, reducing downtime and false alarms
- Track-mount design positions the magnet off the floor to prevent damage and minimize service calls on sectional/panel doors
- Rugged extruded aluminum housing with 18" stainless-steel armored lead for corrosion resistance and long service life
- Wide operating range (-40 to 150°F) and 3" sensing gap ensure dependable performance in cold storerooms to hot loading docks
- Quick, tool-free installation and integrated adjustable bracket save labor and speed deployment for security and access control projects
- Normally-open contact with up to 100V/0.5A rating supports integration with fire, security, and monitoring systems
Quick Specifications
- Product Model
- 2325A-L
- Brand Name
- Edwards Signaling
- Product Name
- 2325A-L Magnetic Contact
- Product Type
- Magnetic Contact
Frequently Bought Together
Edwards Signaling 2300 Series Panel Door Magnetic Contact, IP67, -40 to 150 temp range, aluminum housing, 100V op voltage, 0.5A, 7.5W/VA, normally open, track mount 18 in SS armored lead, 3" gap
$88.50
3 items selected
Total: $231.02
Explore the details
Product information
2325A-L
Overview
For reliable, low-maintenance door monitoring on panel or sectional overhead doors, choose the Edwards Signaling 2300 Series panel door magnetic contact. This purpose-built magnetic contact provides rugged IP67 protection and a corrosion-resistant aluminum housing so security and surveillance systems stay online even in wet, dusty, or corrosive environments. The track-mount design places the magnet vertically on the door—off the floor and out of harm’s way—reducing false alarms and costly service calls caused by floor-mounted contacts. With a wide operating temperature range (-40 to 150°F), a generous 3" operating gap, and an 18" stainless-steel armored lead, the unit is ideal for warehouses, loading docks, and exterior access points. The normally-open contact is rated for up to 100V and 0.5A, making it compatible with most access control, alarm panel, and monitoring systems. Fast, tool-free installation and an adjustable mounting bracket minimize labor time for installers and integrators. Upgrade your perimeter and door security with this durable Edwards Signaling magnetic contact—perfect for commercial security, monitoring, and access control applications. Contact us to specify or order.
Features
- Durable, weatherproof design (IP67) keeps overhead door sensors reliable in harsh environments, reducing downtime and false alarms
- Track-mount design positions the magnet off the floor to prevent damage and minimize service calls on sectional/panel doors
- Rugged extruded aluminum housing with 18" stainless-steel armored lead for corrosion resistance and long service life
- Wide operating range (-40 to 150°F) and 3" sensing gap ensure dependable performance in cold storerooms to hot loading docks
- Quick, tool-free installation and integrated adjustable bracket save labor and speed deployment for security and access control projects
- Normally-open contact with up to 100V/0.5A rating supports integration with fire, security, and monitoring systems
| General Information | |
|---|---|
| Brand Name | Edwards Signaling |
| Manufacturer | Kidde Fire and Safety |
| Product Name | 2325A-L Magnetic Contact |
| Product Type | Magnetic Contact |
| Product Model | 2325A-L |
| Product Series | 2300 |
| Country of Origin | MX |
| Manufacturer Part Number | 2325A-L |
| Technical Information | |
| Armored | Yes |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Color | Silver |
| Depth | 2.70" |
| Width | 3.30" |
| Height | 3.80" |
| Material | Aluminum |
| Power Description | |
| Power Source | AC Power, DC Power |
| Product Information | |
| Contact Type | Closed Loop, NO (Normally Open) |
| Installation Type | Commercial |
