Belden 2413 010Z1000 CAT6 Plus Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, FT6, 1000' (304.8m), Black

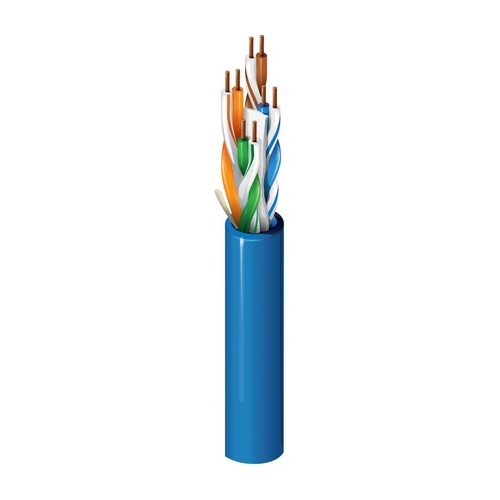

Image of 1
Key Features
- Deliver consistent, high-bandwidth connectivity for enterprise networks and IP security systems, reducing packet loss and downtime.
- CMP plenum-rated jacket allows safe installation in air-handling spaces while meeting strict fire and low-smoke requirements.
- 23 AWG 4-pair solid bare copper conductors provide stable signal integrity and dependable performance for long horizontal runs.
- Supports Gigabit Ethernet and PoE/PoE+/PoE++ for powering cameras, access control and other security devices without separate power wiring.
- 1000' spool minimizes joins and terminations on large installs, saving labor and simplifying cable management for IT and security teams.
Quick Specifications
- Product Model
- 2413 010Z1000
- Brand Name
- Belden
- Product Name
- 2413 Multi-Conductor - Enhanced Category 6 Nonbonded-Pair Cables
- Product Type
- Network Cable
Explore the details
Product information
2413 010Z1000
Overview
Deliver reliable, high-bandwidth Ethernet and power to your enterprise and security infrastructure with the Belden Category 6 Network Cable (2413). Designed for premise horizontal cabling and IP surveillance, this CAT6 Plus U/UTP cable features 4 pairs of 23 AWG solid bare copper conductors and operates to 350 MHz to support Gigabit Ethernet and advanced PoE devices. The CMP plenum-rated jacket and low-smoke materials make it ideal for commercial buildings and air-handling spaces where safety and code compliance matter.
Installers and network managers will appreciate the 1000' spool that reduces splices and speeds deployment, while the cable’s improved crosstalk performance helps maintain video clarity for monitoring and surveillance systems. Use this Belden cable for data centers, enterprise LANs, security camera feeds, access control, VoIP and building automation projects. Specify the 2413 for dependable, future-ready connectivity that simplifies installs and supports demanding security and monitoring applications — order the 1000' spool for your next installation.
Features
- Deliver consistent, high-bandwidth connectivity for enterprise networks and IP security systems, reducing packet loss and downtime.
- CMP plenum-rated jacket allows safe installation in air-handling spaces while meeting strict fire and low-smoke requirements.
- 23 AWG 4-pair solid bare copper conductors provide stable signal integrity and dependable performance for long horizontal runs.
- Supports Gigabit Ethernet and PoE/PoE+/PoE++ for powering cameras, access control and other security devices without separate power wiring.
- 1000' spool minimizes joins and terminations on large installs, saving labor and simplifying cable management for IT and security teams.
| General Information | |
|---|---|
| Brand Name | Belden |
| Manufacturer | Belden CDT, Inc |
| Product Name | 2413 Multi-Conductor - Enhanced Category 6 Nonbonded-Pair Cables |
| Product Type | Network Cable |
| Application/Usage | Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE, PoE+, PoE++, Premise Horizontal Cable |
| Manufacturer Part Number | 2413 010Z1000 |
| Technical Information | |
| Shielding | No |
| Cable Type | Category 6 |
| Jacket Type | Plenum Duplex Zip |
| Cable Rating | Plenum |
| Conductor Count | 8 |
| Number of Pairs | 4 |
| Device Supported | Network Device |
| Solid or Stranded | Solid |
| Conductor Material | Bare Copper |
| American Wire Gauge | 23AWG |
| Number of Conductors | 8 |
| Environmental Conditions | |
| Storage Temperature (T-T) | -20-75°C |
| Operating Temperature (T-T) | -20-75°C |
| Media & Performance | |
| Data Transfer Rate | 100Mbps |
| Physical Characteristics | |
| Color | Black |
| Material | LS PVC |
| Cable Length | 1000.00' |
| Jacket Material | PVC |
| Miscellaneous | |
| Features | Bendable, PoE, PoE+, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT) |
| Indoor/Outdoor | Indoor |
| Environmentally Friendly | Yes |
| Environmental Certification | China RoHS, ELV, EU RoHS, RoHS, RoHS 2, WEEE |
