Vanco 280568 4x4 HMDI to Coaxial Matrix Switcher
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features
- Extend HDMI up to 328' over a single RG6 coaxial cable to reduce cable runs and installation time

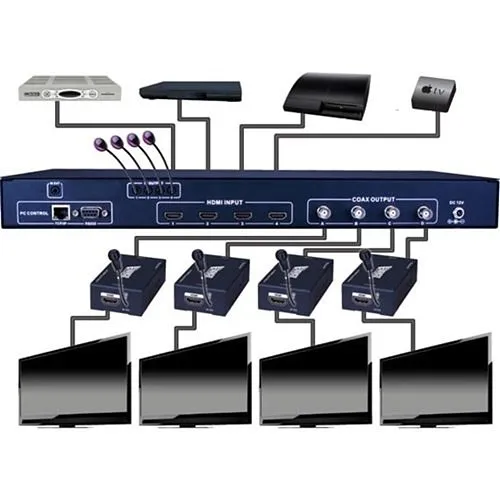

- Distribute 4 HDMI sources to 4 displays simultaneously for centralized AV and surveillance monitoring
- Maintains full 1080P HD video and audio with HDSDI for clear security and signage playback
- Smart EDID management and RS-232 control improve device compatibility and simplify integration
- Multiple control options (RS-232, TCP/IP, IR, on-panel) and included receivers for fast, reliable deployment
Quick Specifications
- Product Model
- 280568
- Brand Name
- Vanco
- Product Name
- 4×4 HDMI to Coaxial Matrix Switcher
- Product Type
- Audio/Video Switchbox
Frequently Bought Together
Vanco 280568 4x4 HMDI to Coaxial Matrix Switcher
$1,321.70
6 items selected
Total: $1,858.28
Explore the details
Product information
280568
Overview

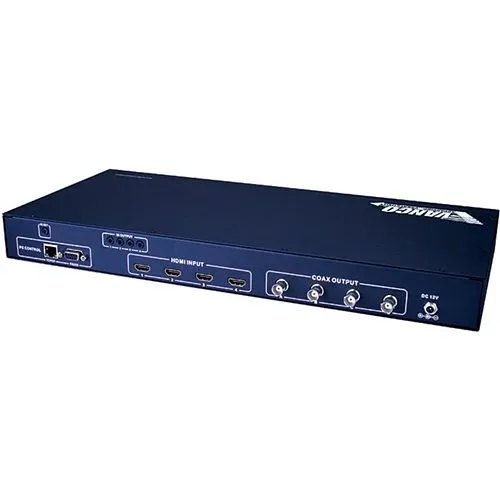

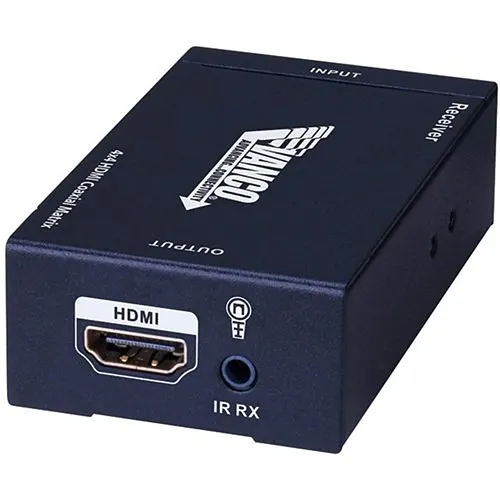

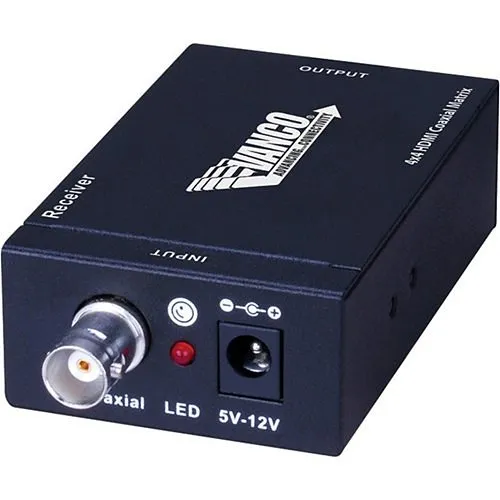

Distribute and extend HDMI reliably across large AV or security installations with the Vanco 280568 4x4 HDMI to Coaxial Matrix Switcher. This plug-and-play HDMI matrix switcher lets you send up to four HDMI sources to four displays simultaneously while extending signals up to 328 feet over a single RG6 coax cable—minimizing infrastructure cost and simplifying wiring for surveillance, monitoring, digital signage, and corporate AV systems. Delivering full 1080P HD video and audio via HDSDI, the unit preserves image clarity for security feeds and mission-critical monitoring. Built for integrators, it includes smart EDID management via RS-232 to ensure compatibility across displays and sources, and offers flexible control through RS-232, TCP/IP, IR and manual panel operation. The Quick Install kit ships with the matrix unit, four receivers and UL-listed power supplies for dependable 24/7 performance. Ideal for security rooms, retail video walls, and commercial AV racks, the Vanco 280568 streamlines multi-display distribution while reducing points of failure. Upgrade your AV/security setup—add this matrix switcher to your next install to improve reliability and simplify management.
Features
- Extend HDMI up to 328' over a single RG6 coaxial cable to reduce cable runs and installation time
- Distribute 4 HDMI sources to 4 displays simultaneously for centralized AV and surveillance monitoring
- Maintains full 1080P HD video and audio with HDSDI for clear security and signage playback
- Smart EDID management and RS-232 control improve device compatibility and simplify integration
- Multiple control options (RS-232, TCP/IP, IR, on-panel) and included receivers for fast, reliable deployment
| General Information | |
|---|---|
| Brand Name | Vanco |
| Manufacturer | Vanco International, Inc |
| Product Name | 4×4 HDMI to Coaxial Matrix Switcher |
| Product Type | Audio/Video Switchbox |
| Country of Origin | CN |
| Manufacturer Part Number | 280568 |
| Technical Information | |
| Device Supported | Display |
| Media Type Supported | Coaxial, Twisted Pair |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 328.00' |
| Number of Input Devices Supported | 4 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Number of HDMI Inputs | 4 |
| Number of Connectivity (RJ-45) Ports | 1 |
| Physical Characteristics | |
| Depth | 7.90" |
| Width | 17.30" |
| Height | 1.80" |
| Product Information | |
| Number of Displays Supported | 4 |
| Video | |
| Graphics Mode | Full HD |
