2GIG TS2-E Wireless 900MHz Touchscreen Keypad for GC2e Panels, 900 MHz

SKU: 2GIG-TS2-E 2GIG

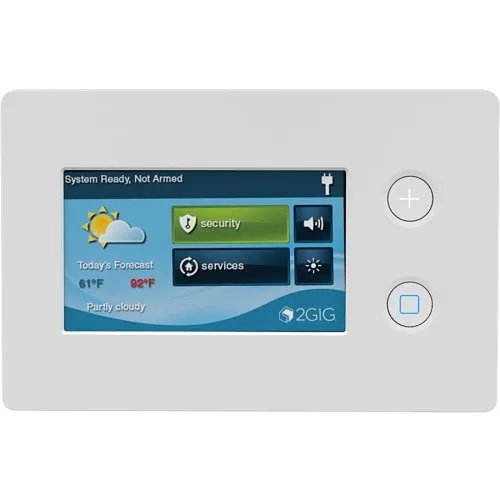

2GIG TS2 Wireless Touchscreen Keypad for GC2e Panels, 900MHz
Product images for 2GIG TS2-E Wireless 900MHz Touchscreen Keypad for GC2e Panels, 900 MHz. 2 image(s) available. Click on image to view full size.

Key Features

  • Extends GC2e control to convenient locations with a responsive full-color touchscreen for faster arming, disarming and system monitoring
  • Reliable 900 MHz FHSS bi-directional communication with up to 500 ft open-air range for consistent security signaling across large properties
  • Built-in access to Z-Wave smart home controls to operate lights, locks and thermostats directly from the keypad, simplifying automation and surveillance workflows
  • Supports up to four TS2-E keypads per system and receives over-the-air firmware updates for streamlined maintenance and future-proof performance
  • Sleek wall-mount, plug-in design with audible chimes and idle dimming for professional installs and clear occupant alerts

Quick Specifications

Product Model
2GIG-TS2-E
Brand Name
2GIG
Product Name
Wireless Touchscreen Keypad
Product Type
Keypads
View Full Technical Specifications

Explore the details

Product information

2GIG-TS2-E

Overview

Put system control where teams and occupants need it most. The 2GIG TS2-E Wireless 900MHz Touchscreen Keypad provides a sleek, full-color secondary interface for 2GIG GC2e panels so security managers and staff can arm/disarm, monitor zones, and manage smart devices without returning to the main panel. Built on 900 MHz frequency-hopping spread-spectrum communication, the TS2-E delivers dependable bi-directional signaling with up to 500 ft open-air range for reliable alarm and status reporting across large properties. Beyond basic arming, the keypad exposes the GC2e's integrated Z-Wave smart home functions, enabling quick control of lights, locks, and thermostats at the wall—streamlining automation, access control and surveillance workflows. Installers benefit from a tidy wall-mount, plug-in design that supports up to four TS2-E keypads per system and receives over-the-air firmware updates from the GC2e panel for easy maintenance. Ideal for commercial offices, multi-room residential builds, and managed properties requiring centralized monitoring and clear occupant alerts, the 2GIG TS2-E enhances situational awareness and occupant safety. Add TS2-E keypads to your specification to streamline security monitoring and smart-device integration.

Features

  • Extends GC2e control to convenient locations with a responsive full-color touchscreen for faster arming, disarming and system monitoring
  • Reliable 900 MHz FHSS bi-directional communication with up to 500 ft open-air range for consistent security signaling across large properties
  • Built-in access to Z-Wave smart home controls to operate lights, locks and thermostats directly from the keypad, simplifying automation and surveillance workflows
  • Supports up to four TS2-E keypads per system and receives over-the-air firmware updates for streamlined maintenance and future-proof performance
  • Sleek wall-mount, plug-in design with audible chimes and idle dimming for professional installs and clear occupant alerts
23 of 23 specifications
Technical specifications for 2GIG TS2-E Wireless 900MHz Touchscreen Keypad for GC2e Panels, 900 MHz
General Information
Brand Name 2GIG
Manufacturer Nice S.p.A.
Product Name Wireless Touchscreen Keypad
Product Type Keypads
Product Model 2GIG-TS2-E
Product Series GC2e
Country of Origin MY
Manufacturer Part Number 2GIG-TS2-E
Technical Information
Connectivity Technology Wireless
Maximum Operating Range 500.00'
Display & Graphics
Display Type Touchscreen
Network & Communication
Maximum Operating Frequency 900.00MHz
Physical Characteristics
Color White
Depth 4.30"
Width 6.70"
Height 0.90"
Power Description
Input Voltage 14V DC
Product Information
Display Screen Type LCD (Liquid Crystal Display)
Product Replacements & Other Alternatives
Model Number Replaces 2GIG-TS1-E
Warranty
Limited Warranty 1-Year
Wireless Specifications
Z-Wave Yes
Miscellaneous
Features Touchscreen, Z-Wave
Environmental Certification FCC
