Genesis 31151012 18/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural

SKU: 31151012 Genesis
Image of WG-31151012

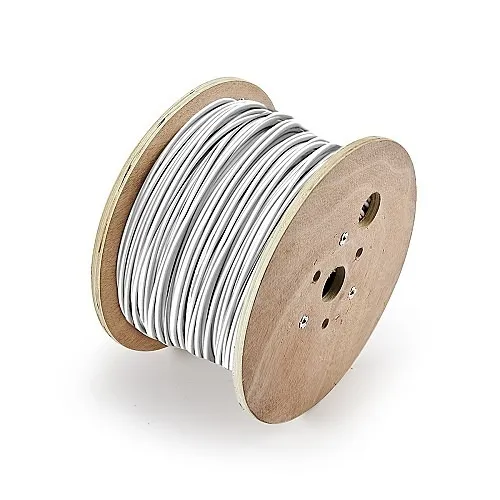

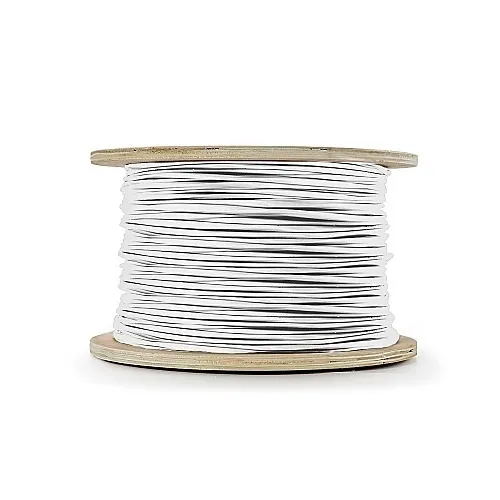

Product images for Genesis 31151012 18/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Plenum-rated CMP/FT6 construction delivers low-smoke, fire-safe signal runs in occupied and air-handling spaces for code-compliant security and surveillance installations
  • Stranded 18 AWG bare copper conductors offer superior conductivity and flexibility for reliable alarm, access control and monitoring circuits
  • 1000' reel with countdown length markings reduces waste and speeds installation planning on large projects
  • LS-PVC plenum jacket plus durable rip cord enables fast, clean jacket removal and long-term protection in conduit and tray
  • TAA and RoHS compliant with a 3-year limited warranty for procurement confidence and enterprise deployments

Quick Specifications

Product Model
31151012
Brand Name
Genesis
Product Name
31151012 Control Cable
Product Type
Access & Security Cable
View Full Technical Specifications

Product Information Tabs

Overview

Built for professional security and low-voltage contractors, the Genesis 31151012 18/4 stranded unshielded plenum cable provides safe, dependable signal transmission for alarm, access control, phone and surveillance systems. This Genesis plenum unshielded cable combines stranded 18 AWG bare copper conductors for excellent conductivity and flexibility with a CMP/FT6-rated LS-PVC jacket to meet plenum airspace fire and low-smoke requirements. Supplied on a 1000' reel and featuring countdown length markings plus a rip cord for quick jacket stripping, it streamlines long runs and reduces installation time and material waste. Rated to 300 V and built for indoor plenum applications, the cable supports monitoring and security circuits where fire codes and performance matter. TAA and RoHS compliant and backed by a 3-year limited warranty, it’s an economical choice for commercial, institutional and government installations. Add Genesis 18/4 plenum cable to your next project to ensure reliable, code-compliant wiring for surveillance and monitoring systems.

Features

  • Plenum-rated CMP/FT6 construction delivers low-smoke, fire-safe signal runs in occupied and air-handling spaces for code-compliant security and surveillance installations
  • Stranded 18 AWG bare copper conductors offer superior conductivity and flexibility for reliable alarm, access control and monitoring circuits
  • 1000' reel with countdown length markings reduces waste and speeds installation planning on large projects
  • LS-PVC plenum jacket plus durable rip cord enables fast, clean jacket removal and long-term protection in conduit and tray
  • TAA and RoHS compliant with a 3-year limited warranty for procurement confidence and enterprise deployments
General Information
Brand Name Genesis
Manufacturer Genesis Cable
Product Name 31151012 Control Cable
Product Type Access & Security Cable
Product Model 31151012
Packaged Quantity 1
Manufacturer Part Number 31151012
Technical Information
Material Bare Copper
Impedance 58 ohms
Shielding No
Cable Type Multi-conductor, Multi-pair
Jacket Type FT6, Plenum
Cable Rating Plenum
Conductor Count 2
Jacket Material LS PVC
Number of Pairs 2
Device Supported Alarm, Phone
Solid or Stranded Stranded
Conductor Material Bare Copper
American Wire Gauge 18AWG
Number of Conductors 4
Core/Cladding Diameter 18/4
Certifications
TAA Compliant Yes
Physical Characteristics
Color Natural
Weight 28.70 lb
Cable Length 1000'
Package Type Reel
Insulation Material LS-PVC
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Stranded, Unshielded
Indoor/Outdoor Indoor
Country of Origin US
Environmental Certification RoHS
