Genesis 31165512 18/6 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural

SKU: 31165512 Genesis
Image of WG-31165512

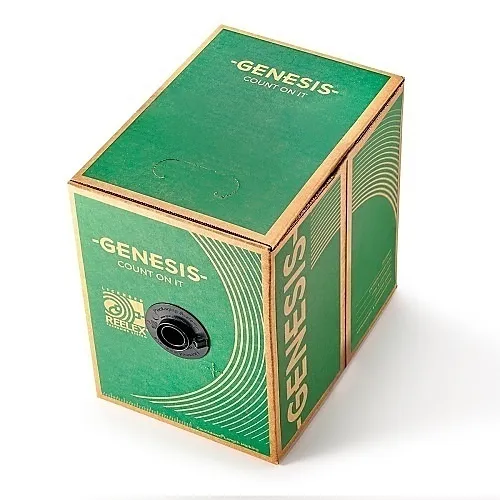

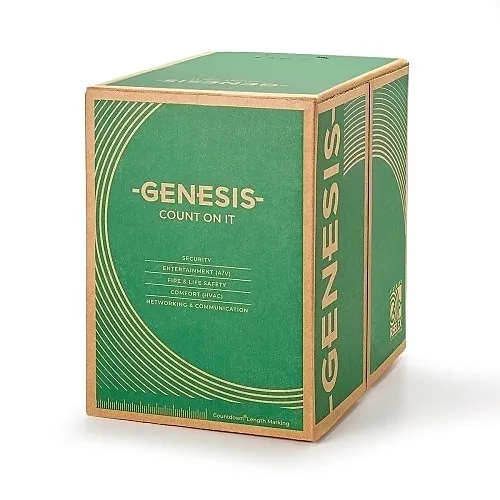

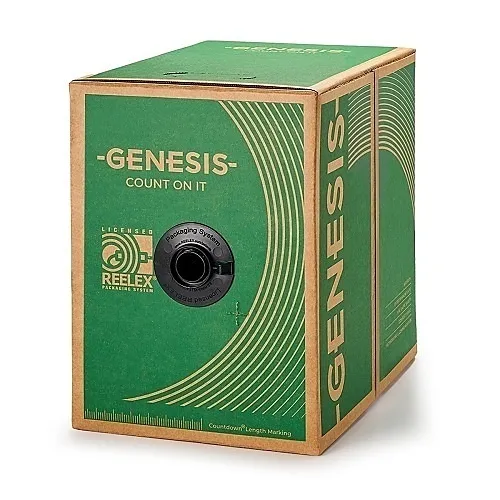

Product images for Genesis 31165512 18/6 Stranded Unshielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural. 4 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Plenum-rated CMP/FT6 jacket reduces smoke and flame risk in air handling spaces, keeping installations code-compliant and safer for occupants
  • Stranded 18 AWG bare copper conductors provide reliable signal integrity with the flexibility needed for neat routing and retrofits
  • 500' pull box with countdown length markings and rip cord speeds installation, minimizes waste and reduces labor time on large security and AV runs
  • Low-smoke PVC insulation and RoHS/TAA compliance support commercial and government projects with cleaner, compliant installations
  • Optimized for alarm, access control, surveillance and intercom systems to maintain consistent monitoring and audio performance over long runs

Quick Specifications

Product Model
31165512
Brand Name
Genesis
Product Name
31165512 Control Cable
Product Type
Access & Security Cable
View Full Technical Specifications

Product Information Tabs

Overview

For secure, code-compliant wiring of security, surveillance and access control systems, the Genesis 31165512 18/6 Stranded Unshielded Plenum Cable delivers dependable performance where it matters most. This Genesis plenum unshielded cable features stranded 18 AWG bare copper conductors and a CMP/FT6-rated plenum jacket, giving installers a balance of signal integrity and flexibility for tight, above-ceiling or air-handling spaces. The 500' pull box with countdown length markings and integrated rip cord reduces install time and cable waste on large deployments. Low-smoke PVC insulation improves occupant safety in plenum environments while RoHS and TAA compliance simplify procurement for commercial and government projects. Rated for common devices like burglar alarms, intercoms, phones and speakers, this cable minimizes voltage drop and keeps monitoring and audio systems reliable. Backed by Genesis quality and a 3-year limited warranty, the 31165512 cable is engineered for professional security and AV installers who need consistent, high-performance cabling. Order the 500' pull box today for faster runs and code-compliant, long-term system reliability.

Features

  • Plenum-rated CMP/FT6 jacket reduces smoke and flame risk in air handling spaces, keeping installations code-compliant and safer for occupants
  • Stranded 18 AWG bare copper conductors provide reliable signal integrity with the flexibility needed for neat routing and retrofits
  • 500' pull box with countdown length markings and rip cord speeds installation, minimizes waste and reduces labor time on large security and AV runs
  • Low-smoke PVC insulation and RoHS/TAA compliance support commercial and government projects with cleaner, compliant installations
  • Optimized for alarm, access control, surveillance and intercom systems to maintain consistent monitoring and audio performance over long runs
General Information
Brand Name Genesis
Manufacturer Genesis Cable
Product Name 31165512 Control Cable
Product Type Access & Security Cable
Product Model 31165512
Packaged Quantity 1
Manufacturer Part Number 31165512
Technical Information
Material Bare Copper
Shielding No
Cable Type Multi-conductor, Multi-pair
Jacket Type Riser
Cable Rating Plenum
Conductor Count 3
Jacket Material LS PVC
Number of Pairs 3
Device Supported Burglar Alarm, Intercom, Phone, Speaker
Solid or Stranded Stranded
Conductor Material Bare Copper
American Wire Gauge 18AWG
Number of Conductors 6
Certifications
TAA Compliant Yes
Others
Model Number Replaces 31166112
Physical Characteristics
Color Natural
Weight 20.70 lb
Cable Length 500'
Package Type Pull Box
Insulation Material LS-PVC
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Stranded, Unshielded
Indoor/Outdoor Indoor
Country of Origin US
Environmental Certification RoHS
