Warehouse: United States

Genesis 31181012 18/10 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural

SKU: 31181012 Genesis

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

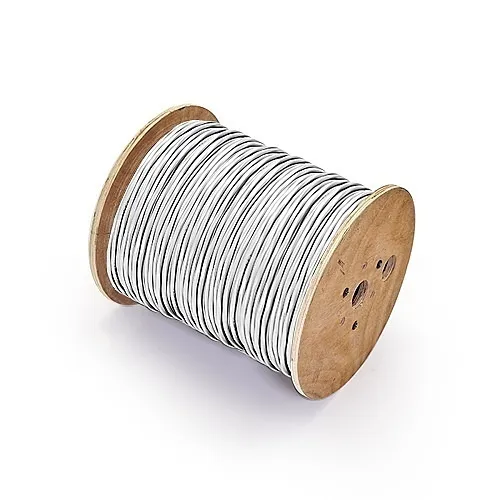

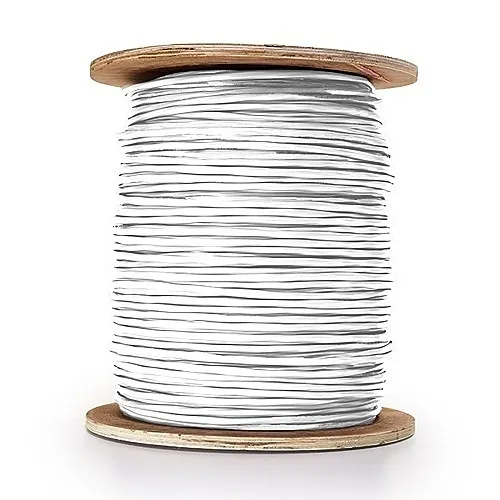

Image of WG-31181012
Product images for Genesis 31181012 18/10 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Reliable, low-loss signal transmission for security and surveillance systems thanks to bare copper conductors
  • Plenum CMP rating and low-smoke LS-PVC jacket for safe installations in air-handling spaces and code compliance
  • Flexible 18/10 stranded construction simplifies routing in tight conduit and reduces breakage during installation
  • 1000' reel with countdown length markings minimizes splices and helps manage long runs for large sites
  • Built-in rip cord and easy-strip design speed termination and save installer time on CCTV, access control, and monitoring projects
  • RoHS/REACH compliant materials and a 3-year limited warranty provide long-term reliability and regulatory peace of mind

Quick Specifications

Product Model
31181012
Brand Name
Genesis
Product Name
Plenum Rated Security & Control Cable
Product Type
Access & Security Cable
View Full Technical Specifications

Product Information Tabs

Overview

Ensure dependable wiring for critical security, surveillance and monitoring systems with the Genesis plenum-rated Unshielded Multiconductor Cable. This Plenum Unshielded Cable (model 31181012) is designed for installers who need safe, long runs in air-handling spaces—offering CMP plenum rating and a low-smoke LS-PVC jacket for reduced fumes and code compliance. The 18/10 stranded conductors (10 cores / 5 pairs) deliver excellent conductivity and flexibility, while the 1000' reel and countdown length markings minimize splices and speed large installations. Built with bare copper conductors and a rated 300V insulation, this cable supports low-voltage security devices, audio connections, access control and surveillance cameras with consistent performance. Installation-friendly features like a durable rip cord and stranded construction reduce labor time and rework. Ideal for integrators and facility managers specifying reliable, plenum-rated wiring for monitoring, access control and CCTV systems—order a reel today to streamline your next security deployment.

Features

  • Reliable, low-loss signal transmission for security and surveillance systems thanks to bare copper conductors
  • Plenum CMP rating and low-smoke LS-PVC jacket for safe installations in air-handling spaces and code compliance
  • Flexible 18/10 stranded construction simplifies routing in tight conduit and reduces breakage during installation
  • 1000' reel with countdown length markings minimizes splices and helps manage long runs for large sites
  • Built-in rip cord and easy-strip design speed termination and save installer time on CCTV, access control, and monitoring projects
  • RoHS/REACH compliant materials and a 3-year limited warranty provide long-term reliability and regulatory peace of mind
General Information
Brand Name Genesis
Manufacturer Genesis Cable
Product Name Plenum Rated Security & Control Cable
Product Type Access & Security Cable
Product Model 31181012
Packaged Quantity 1
Manufacturer Part Number 31181012
Technical Information
Material Bare Copper
Shielding No
Cable Type Multi-conductor, Multi-pair
Jacket Type Riser
Cable Rating Plenum
Conductor Count 5
Jacket Material LS PVC
Number of Pairs 5
Device Supported Audio Applications, Low Voltage applications, Security Device
Solid or Stranded Stranded
Conductor Material Bare Copper
American Wire Gauge 18AWG
Number of Conductors 10
Core/Cladding Diameter 18/10
Certifications
TAA Compliant Yes
Physical Characteristics
Color Natural
Cable Length 1000'
Package Type Reel
Insulation Material LS-PVC
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Stranded
Indoor/Outdoor Indoor
Country of Origin US
Environmentally Friendly Yes
Environmental Certification RoHS
