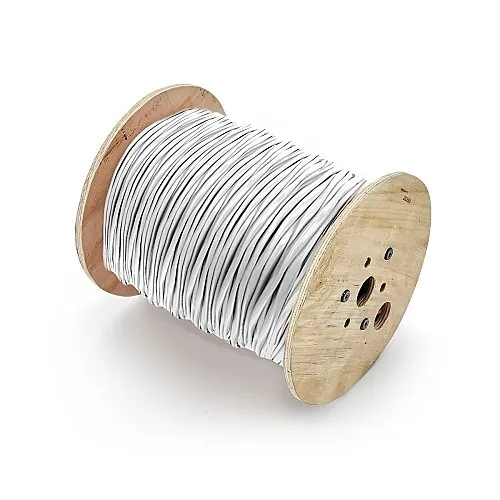

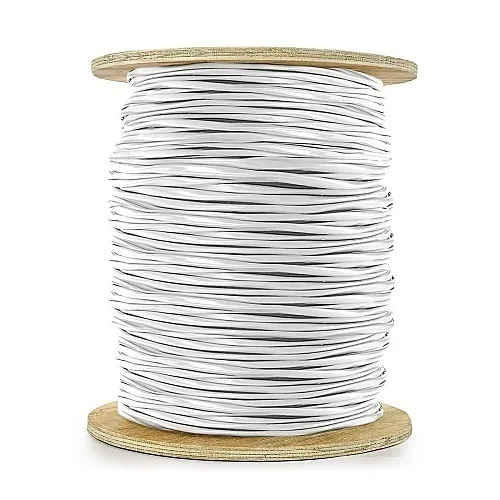

Genesis 31221012 16/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural

SKU: 31221012 Genesis
Image of WG-31221012
Product images for Genesis 31221012 16/4 Stranded Unshielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Plenum-rated CMP construction reduces smoke and toxic fumes for code-compliant installations in air-handling spaces
  • Bare 16 AWG copper conductors deliver reliable, low-voltage drop performance for security, alarm and audio systems
  • Stranded design improves flexibility for easy routing and termination in tight conduit and cable trays
  • 1000' reel with countdown length markings saves time, reduces waste and speeds large installations
  • Durable LS-PVC insulation and rip cord enable fast, clean jacket removal and long service life
  • TAA and RoHS compliant with a 3-year limited warranty for procurement confidence and regulatory compliance

Quick Specifications

Product Model
31221012
Brand Name
Genesis
Product Name
31221012 Control Cable
Product Type
Access & Security Cable
View Full Technical Specifications

Product Information Tabs

Overview

When you need dependable, code-compliant wiring for security and monitoring systems, the Genesis 31221012 16/4 stranded plenum unshielded cable delivers. Designed for installations in air-handling plenum spaces, this CMP-rated cable minimizes smoke and toxic gases while providing consistent signal and limited-power transmission. The bare 16 AWG copper conductors offer low voltage drop and reliable connectivity for alarms, access control, surveillance cameras, speakers and phone lines. Supplied on a 1000' reel with countdown length markings, the cable streamlines long runs and inventory tracking on commercial deployments. Stranded construction gives extra flexibility for pull-through installs and frequent terminations, while LS-PVC insulation and a durable rip cord make stripping fast and clean. TAA and RoHS compliance, plus a 3-year limited warranty, make this Genesis plenum unshielded cable a practical choice for integrators and contractors specifying secure, high-performing cabling for AV, monitoring and security projects. Order the Genesis 31221012 16/4 plenum cable to ensure safe, reliable wiring on your next surveillance or access control installation.

Features

  • Plenum-rated CMP construction reduces smoke and toxic fumes for code-compliant installations in air-handling spaces
  • Bare 16 AWG copper conductors deliver reliable, low-voltage drop performance for security, alarm and audio systems
  • Stranded design improves flexibility for easy routing and termination in tight conduit and cable trays
  • 1000' reel with countdown length markings saves time, reduces waste and speeds large installations
  • Durable LS-PVC insulation and rip cord enable fast, clean jacket removal and long service life
  • TAA and RoHS compliant with a 3-year limited warranty for procurement confidence and regulatory compliance
General Information
Brand Name Genesis
Manufacturer Genesis Cable
Product Name 31221012 Control Cable
Product Type Access & Security Cable
Product Model 31221012
Packaged Quantity 1
Manufacturer Part Number 31221012
Technical Information
Material Bare Copper
Shielding No
Cable Type Multi-conductor, Multi-pair
Jacket Type Riser
Cable Rating Plenum
Conductor Count 2
Jacket Material LS PVC
Number of Pairs 2
Device Supported Burglar Alarm, Phone, Speaker
Solid or Stranded Solid
Conductor Material Bare Copper
American Wire Gauge 16AWG
Number of Conductors 4
Core/Cladding Diameter 16/4
Certifications
TAA Compliant Yes
Physical Characteristics
Color Natural
Cable Length 1000'
Package Type Reel
Insulation Material LS-PVC
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Stranded, Unshielded
Indoor/Outdoor Indoor
Country of Origin US
Environmental Certification RoHS
