Genesis 31231012 14/2 Stranded Unshielded Cable, Plenum, CL3P, FT6, 1000' (304.8 m) Reel, Natural

SKU: 31231012 Genesis

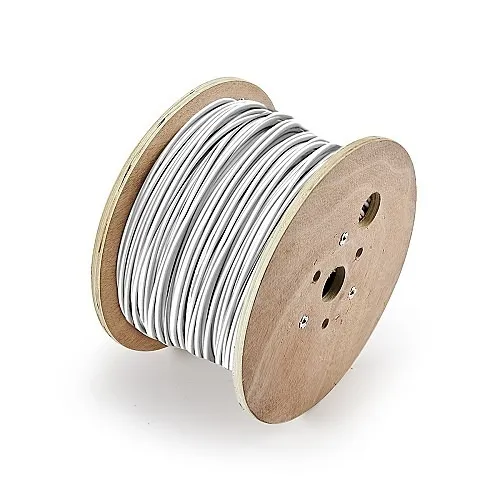

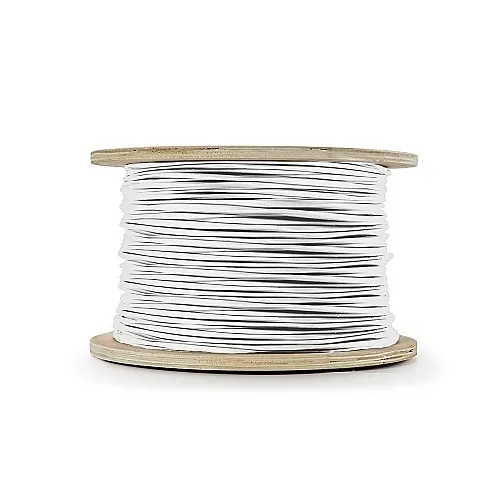

Image of WG-31231012
Product images for Genesis 31231012 14/2 Stranded Unshielded Cable, Plenum, CL3P, FT6, 1000' (304.8 m) Reel, Natural. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Plenum-rated construction (CL3P/FT6) provides low-smoke, fire-safe performance for installations in air-handling spaces
  • Flexible 14 AWG stranded bare copper conductors deliver reliable signal and low voltage drop for security, alarm and access-control devices
  • 1000' reel with countdown length markings and rip cord speeds installation and reduces waste on job sites
  • LS-PVC jacket and insulation minimize smoke and toxic fumes for safer commercial and multi-tenant environments
  • TAA and RoHS compliant with a 3-year limited warranty to support procurement and long-term system reliability

Quick Specifications

Product Model
31231012
Brand Name
Genesis
Product Name
31231012 Control Cable
Product Type
Access & Security Cable
View Full Technical Specifications

Product Information Tabs

Overview

Deliver consistent, fire-safe performance for security, surveillance and low-voltage communications with the Genesis 31231012 14/2 Stranded Unshielded Cable. Designed as a plenum unshielded cable, this Genesis product combines 14 AWG stranded bare copper conductors with LS-PVC insulation and a plenum PVC jacket (CL3P, FT6) to provide low-smoke, low-toxicity protection in air-handling spaces. The 1000' reel format and countdown length markings simplify staging and reduce installation time, while the included rip cord makes jacket removal fast and clean on every pull. Rated for 300 V and operating between -20 °C to 75 °C, this cable is ideal for burglar alarms, access control, phone and speaker connections in commercial installations and multi-tenant buildings. TAA and RoHS compliance plus a 3-year limited warranty help meet procurement and regulatory requirements. Specify the Genesis 14/2 plenum cable for reliable monitoring and surveillance system wiring—order now for safer, faster installations.

Features

  • Plenum-rated construction (CL3P/FT6) provides low-smoke, fire-safe performance for installations in air-handling spaces
  • Flexible 14 AWG stranded bare copper conductors deliver reliable signal and low voltage drop for security, alarm and access-control devices
  • 1000' reel with countdown length markings and rip cord speeds installation and reduces waste on job sites
  • LS-PVC jacket and insulation minimize smoke and toxic fumes for safer commercial and multi-tenant environments
  • TAA and RoHS compliant with a 3-year limited warranty to support procurement and long-term system reliability
General Information
Brand Name Genesis
Manufacturer Genesis Cable
Product Name 31231012 Control Cable
Product Type Access & Security Cable
Product Model 31231012
Packaged Quantity 1
Manufacturer Part Number 31231012
Technical Information
Material Bare Copper
Shielding No
Cable Type Multi-conductor, Multi-pair
Jacket Type Riser
Cable Rating Plenum
Conductor Count 1
Jacket Material LS PVC
Number of Pairs 1
Device Supported Burglar Alarm, Phone, Speaker
Solid or Stranded Stranded
Conductor Material Bare Copper
American Wire Gauge 14AWG
Number of Conductors 2
Core/Cladding Diameter 14/2
Certifications
TAA Compliant Yes
Others
Model Number Replaces 31235012, 725140L1W
Physical Characteristics
Color Natural
Weight 35.40 lb
Cable Length 1000'
Package Type Reel
Insulation Material LS-PVC
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Stranded, Unshielded
Indoor/Outdoor Indoor
Country of Origin US
Environmental Certification RoHS
