Genesis 31965001 22/6 Stranded Shielded + 22/4 Stranded + 22/2 Stranded + 18/4 Stranded Composite Access Control Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, White

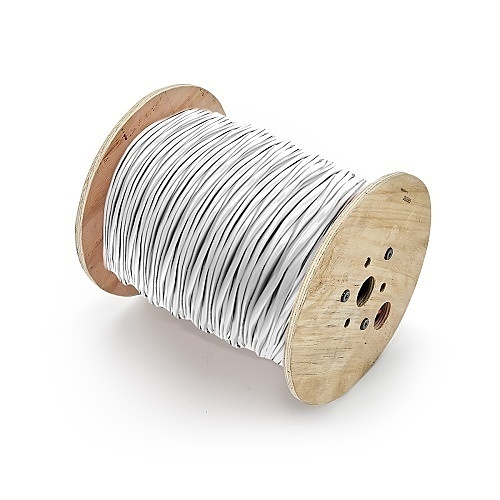

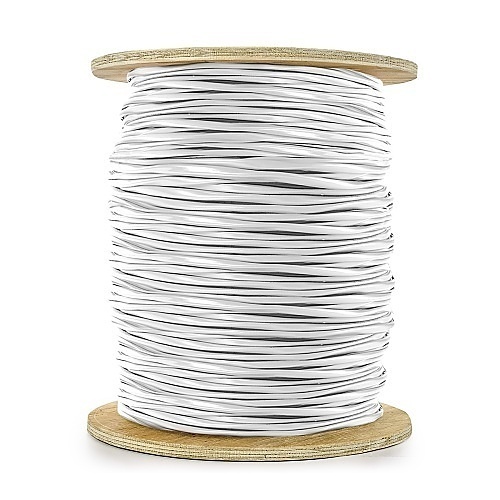

Image of 3
Key Features
- Simplifies installation by combining lock power, door contacts, card readers and REX into one easy-to-pull composite bundle
- Plenum-rated (CMP/FT6) white jacket and low-smoke LS-PVC reduce fire risk and comply with building air-space requirements
- Shielded card reader pair minimizes EMI for reliable credential reads and cleaner signals to access control panels
- Stranded bare-copper conductors (22/6, 22/4, 22/2, 18/4) provide flexible routing and low voltage drop for consistent lock/sensor performance
- Installer-friendly features: durable rip cord for fast jacket removal, countdown length markings, and a 500' reel to speed large deployments
- TAA and RoHS compliant for commercial procurement and environmentally conscious projects
Quick Specifications
- Product Model
- 31965001
- Brand Name
- Genesis
- Package Type
- Reel/Spool
- Product Name
- 31965001 - Plenum Composite Access Control, White, 500 ft. Reel
Explore the details
Product information
31965001
Overview
Speed deployments and reduce labor with the Genesis 31965001 Composite Access Control Cable — engineered to consolidate multiple access control runs into a single, plenum-rated assembly. Ideal for commercial security, surveillance and monitoring installations, this Genesis composite cable combines 22/6 stranded, 22/4 stranded, 22/2 stranded and 18/4 stranded conductors on a 500' reel to handle lock power, door contacts, card readers and request-to-exit devices without multiple pulls. The card reader pair is shielded to cut EMI and ensure reliable credential reads, while stranded bare copper conductors deliver flexibility and low voltage drop for consistent device operation.
Designed for plenum spaces, the CMP/FT6-rated LS-PVC jacket offers low-smoke performance and meets building code requirements for air-handling areas. Installer-focused details — including a rip cord for fast stripping and countdown length markings — reduce install time and material waste. With TAA and RoHS compliance and a 3-year limited warranty, this access & security cable supports procurement standards for enterprise projects. Use it for access control panels, integrated security systems and surveillance sensor wiring — order Genesis plenum composite cable for your next secure installation.
Features
- Simplifies installation by combining lock power, door contacts, card readers and REX into one easy-to-pull composite bundle
- Plenum-rated (CMP/FT6) white jacket and low-smoke LS-PVC reduce fire risk and comply with building air-space requirements
- Shielded card reader pair minimizes EMI for reliable credential reads and cleaner signals to access control panels
- Stranded bare-copper conductors (22/6, 22/4, 22/2, 18/4) provide flexible routing and low voltage drop for consistent lock/sensor performance
- Installer-friendly features: durable rip cord for fast jacket removal, countdown length markings, and a 500' reel to speed large deployments
- TAA and RoHS compliant for commercial procurement and environmentally conscious projects
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Package Type | Reel/Spool |
| Product Name | 31965001 - Plenum Composite Access Control, White, 500 ft. Reel |
| Product Type | Security & Control Cables |
| Product Model | 31965001 |
| Country of Origin | US |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 31965001 |
| Technical Information | |
| Armored | No |
| Shielding | Yes |
| Jacket Type | Plenum Duplex Zip |
| Cable Rating | Plenum |
| Conductor Count | 16 |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 22AWG |
| Number of Conductors | 16 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 44.30lb |
| Cable Length | 500.00' |
| Jacket Material | LS-PVC |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmental Certification | RoHS |
