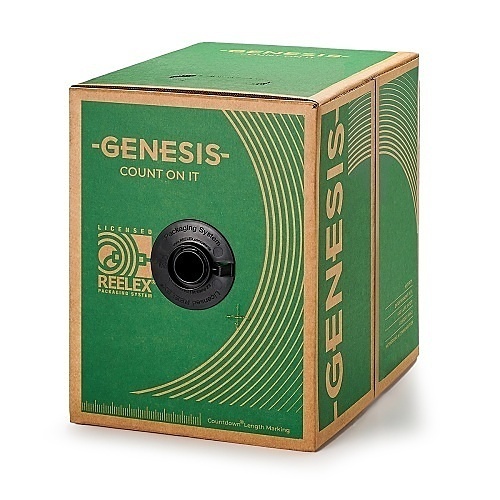

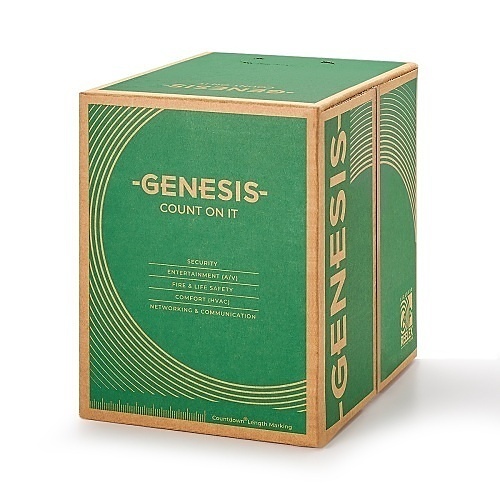

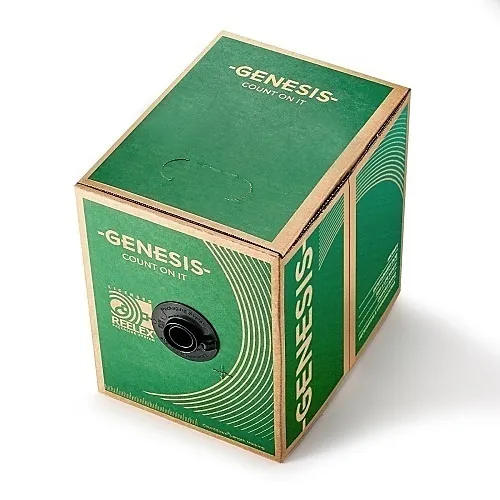

Genesis 32045512 22/4 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Pull Box, Natural
Image of 4
Key Features
- Protects sensitive security and surveillance signals from electrical noise with a full foil shield for dependable monitoring performance
- CMP plenum-rated jacket and low-smoke PVC minimize fire risk in air-handling spaces while meeting code requirements for commercial installs
- Flexible 22 AWG stranded bare copper conductors simplify routing in tight spaces and around conduits for faster installation
- 500' pull box with countdown length markings and rip cord speeds deployment and reduces waste on large projects
- Built for access control, burglar alarm, intercom and speaker systems with 4 conductors (22/4) and 300V rating for versatile low-voltage use
- RoHS/TAA compliant and backed by a 3-year limited warranty for long-term reliability and procurement compliance
Quick Specifications
- Product Model
- 32045512
- Brand Name
- Genesis
- Package Type
- REELEX Pull Box
- Product Name
- 32045512 Control Cable
Explore the details
Product information
32045512
Overview
Designed to preserve signal integrity in demanding low-voltage applications, the Genesis 32045512 22/4 Stranded Shielded Cable, Plenum delivers interference-free performance for security, surveillance and monitoring systems. This Genesis plenum shielded cable pairs stranded 22 AWG bare copper conductors with a continuous foil shield to reduce electromagnetic and radio-frequency interference, ensuring crisp audio, reliable alarm signals and stable intercom/phone connections. The CMP-rated LS-PVC jacket makes it safe for installation in plenum air-handling spaces, while the 500' pull box with countdown markings and integrated rip cord speeds up large commercial deployments. Rated to 300V and engineered to operate from -20 °C to 75 °C, this 4-conductor (22/4) cable is ideal for access control, burglar alarm, speaker and monitoring installations where code compliance and signal quality matter. TAA and RoHS compliant, it supports procurement requirements and sustainable practices. For contractors and integrators specifying plenum-rated security cabling, the Genesis 32045512 offers a balanced mix of durability, flexibility and EMI protection — order a pull box today to streamline your next security or surveillance deployment.
Features
- Protects sensitive security and surveillance signals from electrical noise with a full foil shield for dependable monitoring performance
- CMP plenum-rated jacket and low-smoke PVC minimize fire risk in air-handling spaces while meeting code requirements for commercial installs
- Flexible 22 AWG stranded bare copper conductors simplify routing in tight spaces and around conduits for faster installation
- 500' pull box with countdown length markings and rip cord speeds deployment and reduces waste on large projects
- Built for access control, burglar alarm, intercom and speaker systems with 4 conductors (22/4) and 300V rating for versatile low-voltage use
- RoHS/TAA compliant and backed by a 3-year limited warranty for long-term reliability and procurement compliance
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Package Type | REELEX Pull Box |
| Product Name | 32045512 Control Cable |
| Product Type | Security & Control Cables |
| Product Model | 32045512 |
| Country of Origin | US |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 32045512 |
| Technical Information | |
| Armored | No |
| Shielding | Yes |
| Jacket Type | Plenum Duplex Zip |
| Cable Rating | Plenum |
| Conductor Count | 2 |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 22AWG |
| Number of Conductors | 4 |
| Core/Cladding Diameter | 22/4 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Clear |
| Weight | 17.00lb |
| Cable Length | 500.00' |
| Jacket Material | LS-PVC |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmental Certification | RoHS |
