Genesis 32061108 22/6 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Black
Image of 4
Key Features
- Protects sensitive signals with foil shielding to reduce EMI and ensure reliable security and surveillance performance
- CMP plenum-rated jacket for code-compliant installations in air-handling spaces and high-density commercial environments
- 22 AWG stranded bare copper conductors in a 6-conductor 22/6 configuration for flexible routing and consistent low-voltage transmission

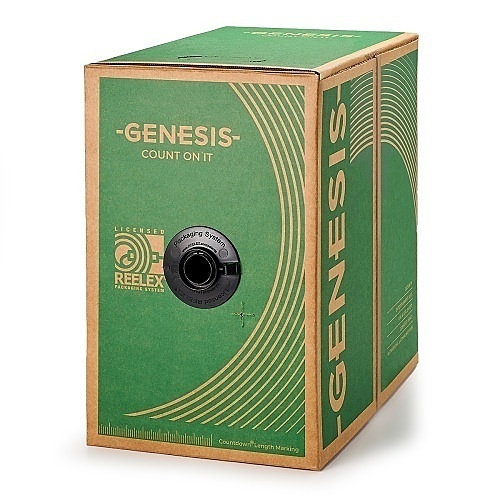

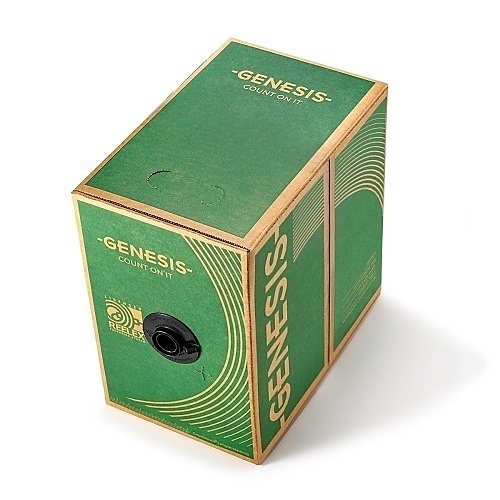

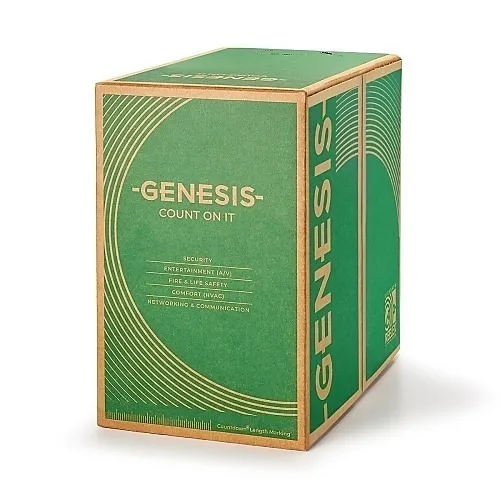

- 1000' pull box with countdown markings and rip cord speeds installation and inventory management on large projects
- Low-smoke, LS-PVC jacket and REACH/RoHS compliance support safer deployments and regulatory peace of mind
Quick Specifications
- Brand Name
- Genesis
- Manufacturer
- Genesis Cable
- Product Name
- Bare Wire Control Cable
- Product Type
- Access & Security Cable
Product Information Tabs
Overview
Optimize your low-voltage runs with the Genesis 22/6 stranded shielded plenum cable — engineered for dependable security, surveillance and audio/monitoring systems in commercial buildings. This Genesis plenum shielded cable combines a foil shield over all conductors and bare copper 22 AWG stranded conductors to minimize electrical noise and preserve signal integrity across access control, CCTV and monitoring installations. The CMP-rated plenum jacket (plenum PVC/LS-PVC) meets air-handling space codes for clean, code-compliant deployments while the 1000' pull box with countdown length markings and built-in rip cord reduces install time and waste on long runs. Rated for -20 °C to 75 °C and 300 V, this 6-conductor (22/6) cable is versatile for audio, low-voltage power and security device connections where interference mitigation and fire-safety ratings matter. TAA and RoHS/REACH compliance plus a 3-year limited warranty give contractors and integrators added confidence. Specify Genesis plenum shielded cable for mission-critical installations — order a 1000' pull box for your next access control, CCTV or facility monitoring project.
Features
- Protects sensitive signals with foil shielding to reduce EMI and ensure reliable security and surveillance performance
- CMP plenum-rated jacket for code-compliant installations in air-handling spaces and high-density commercial environments
- 22 AWG stranded bare copper conductors in a 6-conductor 22/6 configuration for flexible routing and consistent low-voltage transmission
- 1000' pull box with countdown markings and rip cord speeds installation and inventory management on large projects
- Low-smoke, LS-PVC jacket and REACH/RoHS compliance support safer deployments and regulatory peace of mind
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | Bare Wire Control Cable |
| Product Type | Access & Security Cable |
| Product Model | 32061108 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 32061108 |
| Technical Information | |
| Material | Bare Copper |
| Shielding | Yes |
| Cable Type | Multi-conductor, Multi-pair |
| Jacket Type | Riser |
| Cable Rating | Plenum |
| Conductor Count | 3 |
| Jacket Material | LS PVC |
| Number of Pairs | 3 |
| Device Supported | Audio Applications, Low Voltage applications, Security Device |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 22AWG |
| Number of Conductors | 6 |
| Core/Cladding Diameter | 22/6 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Black |
| Cable Length | 1000' |
| Package Type | Pull Box |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmental Certification | RoHS |
