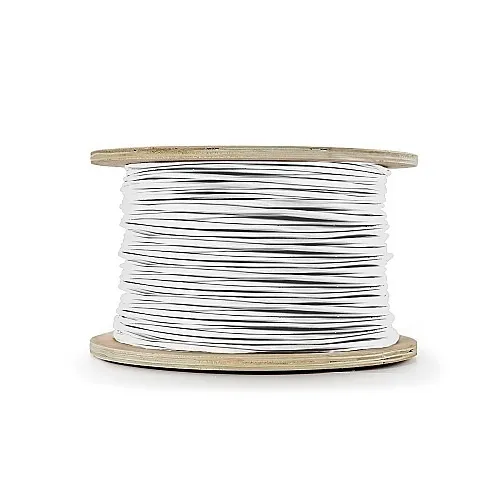

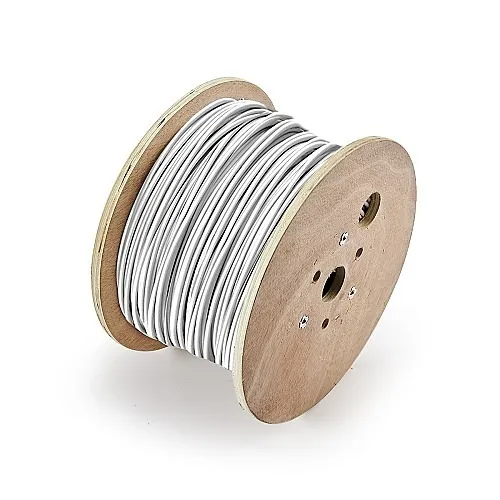

Genesis 32141012 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural
Image of 3
Key Features
- Minimizes electrical interference and crosstalk to protect security, surveillance and monitoring signals
- CMP/FT6 plenum-rated LS-PVC jacket for safe installation in air-handling spaces
- Stranded bare copper 18 AWG conductors and foil shield deliver reliable, low-loss transmission
- 1000' reel with countdown markings and rip cord speeds installation and reduces labor time
- RoHS/REACH compliant, TAA eligible and backed by a 3-year limited warranty for enterprise deployments
Quick Specifications
- Product Model
- 32141012
- Brand Name
- Genesis
- Product Name
- 32141012 Control Cable
- Product Type
- Access & Security Cable
Explore the details
Product information
32141012
Overview
Ensure reliable, interference-free signal transmission for security, surveillance and monitoring systems with the Genesis 32141012 plenum shielded cable. This Genesis plenum shielded cable (18/2 stranded, 18 AWG) pairs stranded bare copper conductors with a foil shield to minimize EMI and preserve signal integrity over long runs. The CMP/FT6 plenum-rated LS-PVC jacket permits safe routing in air-handling spaces while meeting low-smoke and flame-resistant requirements for commercial and institutional buildings.
Engineered for installers, the 1000' reel includes countdown length markings and a durable rip cord for fast, accurate deployment and jacket removal—reducing install time on alarm, phone and access control projects. Rated to 300 V and -20 °C to 75 °C operating range, this multi-conductor cable performs reliably in varied indoor environments. Manufactured in the US, RoHS/REACH compliant and TAA eligible, it’s supported by a 3-year limited warranty for government and enterprise procurement.
Choose the Genesis 32141012 18/2 plenum shielded cable to improve signal integrity and speed installations on critical security, monitoring and surveillance infrastructure. Order now to outfit your next project.
Features
- Minimizes electrical interference and crosstalk to protect security, surveillance and monitoring signals
- CMP/FT6 plenum-rated LS-PVC jacket for safe installation in air-handling spaces
- Stranded bare copper 18 AWG conductors and foil shield deliver reliable, low-loss transmission
- 1000' reel with countdown markings and rip cord speeds installation and reduces labor time
- RoHS/REACH compliant, TAA eligible and backed by a 3-year limited warranty for enterprise deployments
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 32141012 Control Cable |
| Product Type | Access & Security Cable |
| Product Model | 32141012 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 32141012 |
| Technical Information | |
| Material | Bare Copper |
| Shielding | Yes |
| Cable Type | Multi-conductor, Multi-pair |
| Jacket Type | Riser |
| Cable Rating | Plenum |
| Conductor Count | 1 |
| Jacket Material | LS PVC |
| Number of Pairs | 1 |
| Device Supported | Alarm, Phone |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 2 |
| Core/Cladding Diameter | 18/2 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Natural |
| Cable Length | 1000' |
| Package Type | Reel |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
