Genesis 32142103 18/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Orange
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 4
Key Features
- Superior signal integrity: foil-shielded 18/2 stranded conductors reduce EMI/RFI for clear transmission in security and surveillance systems
- Plenum-rated protection: CMP/FT6 LS-PVC jacket allows safe installation in air-handling spaces and commercial buildings

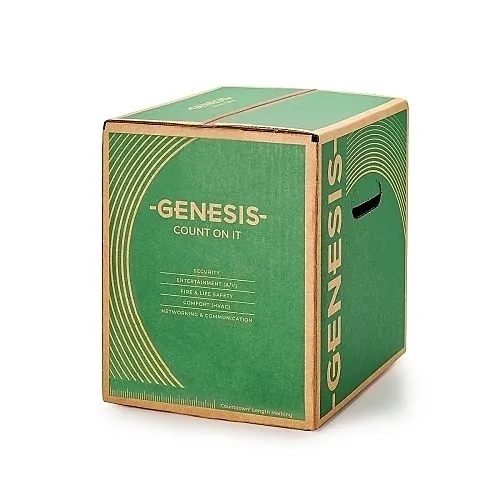

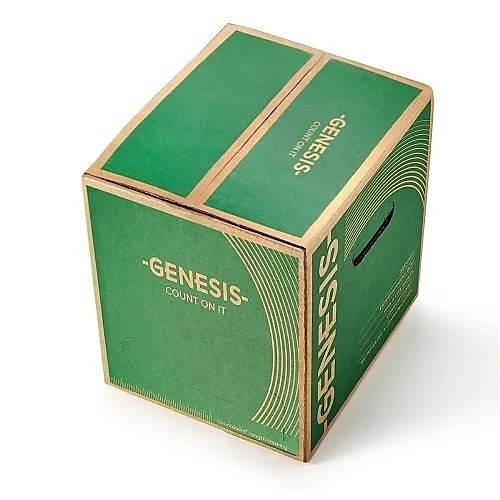

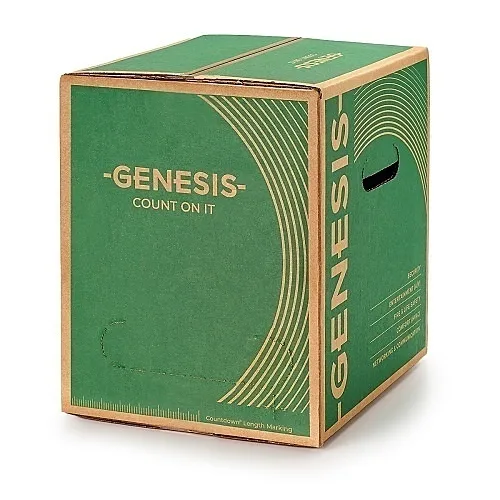

- Ready-to-install packaging: 1000' reel-in-a-box with countdown markings and rip cord speeds up pulls and reduces waste
- Durable, low-voltage performance: bare copper conductors deliver low voltage drop and reliable connections for access control and monitoring
- Code-compliant and eco-friendly: RoHS/REACH compliant and TAA-compliant manufacturing for corporate procurement needs
Quick Specifications
- Product Model
- 32142103
- Brand Name
- Genesis
- Product Name
- Control Cable
- Product Type
- Security & Control Cables
Product Information Tabs
Overview
When reliable signal performance matters in security, surveillance and access control, Genesis 18/2 Plenum Shielded Cable delivers consistent, low-noise transmission where you need it most. This Genesis plenum shielded cable features 18/2 stranded bare copper conductors with a foil shield to minimize EMI/RFI, ensuring cameras, sensors and monitoring equipment operate without interference. The CMP/FT6 plenum-rated LS-PVC jacket permits installation in air-handling plenums and other commercial spaces while meeting strict safety codes.
Packaged on a 1000' reel-in-a-box with countdown length markings and a built-in rip cord, this cable reduces installation time and material waste for contractors and integrators. Rated for -20°C to 75°C and 300 volts, it supports a wide range of low-voltage security and networked monitoring applications. Backed by Genesis quality and a 3-year limited warranty, it fits projects that demand dependable, code-compliant cabling.
Specify Genesis 18/2 plenum shielded cable for cleaner signal paths in CCTV, access control, intrusion detection and building monitoring — order the reel-in-a-box for your next installation.
Features
- Superior signal integrity: foil-shielded 18/2 stranded conductors reduce EMI/RFI for clear transmission in security and surveillance systems
- Plenum-rated protection: CMP/FT6 LS-PVC jacket allows safe installation in air-handling spaces and commercial buildings
- Ready-to-install packaging: 1000' reel-in-a-box with countdown markings and rip cord speeds up pulls and reduces waste
- Durable, low-voltage performance: bare copper conductors deliver low voltage drop and reliable connections for access control and monitoring
- Code-compliant and eco-friendly: RoHS/REACH compliant and TAA-compliant manufacturing for corporate procurement needs
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | Control Cable |
| Product Type | Security & Control Cables |
| Product Model | 32142103 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 32142103 |
| Technical Information | |
| Armored | No |
| Shielding | Yes |
| Jacket Type | FT6, Plenum |
| Cable Rating | Plenum |
| Conductor Count | 1 |
| Jacket Material | LS-PVC |
| Number of Pairs | 1 |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 2 |
| Core/Cladding Diameter | 18/2 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Orange |
| Cable Length | 1000' |
| Package Type | Reel-in-a-Box |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmental Certification | RoHS |
