Genesis 32152103 18/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Orange
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 4
Key Features
- Minimizes electrical noise and crosstalk to protect sensitive security and surveillance signals
- Plenum-rated CMP construction lets you run cable in air-handling spaces for code-compliant installations
- 18/4 stranded conductors on a 1000' reel provide flexibility and long runs for access control, monitoring, and alarm systems

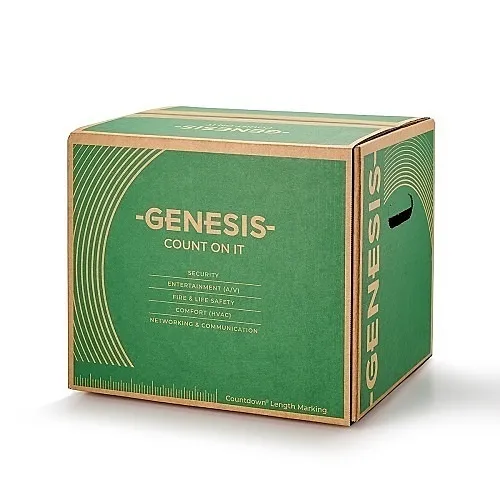

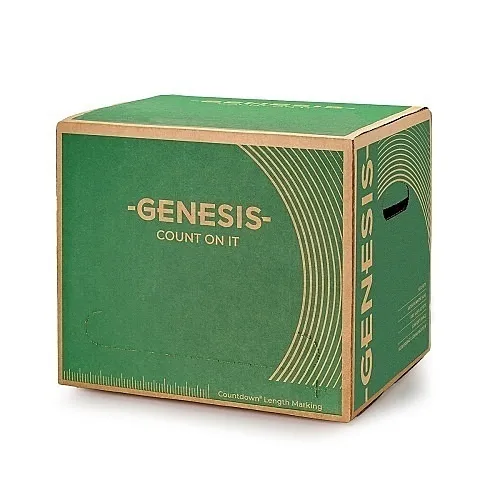

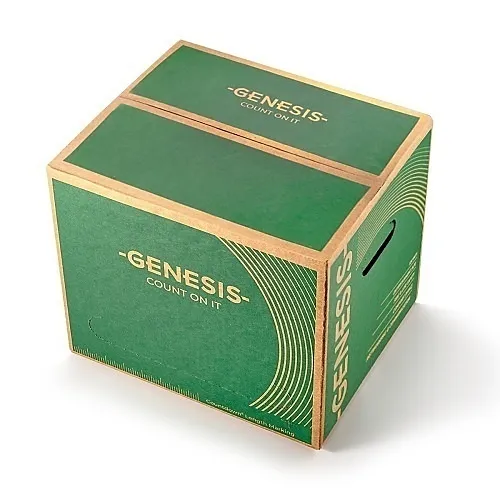

- Reel-in-a-box design with rip cord and countdown markings speeds installation and reduces waste
- Durable LS-PVC jacket and foil shielding deliver reliable performance in commercial low-voltage environments
Quick Specifications
- Product Model
- 32152103
- Brand Name
- Genesis
- Product Name
- Control Cable
- Product Type
- Security & Control Cables
Product Information Tabs
Overview
Ideal for secure, low-voltage signal runs in air-handling spaces, the Genesis 32152103 18/4 Stranded Shielded Cable delivers interference-free connectivity for security, surveillance, access control and monitoring systems. This Genesis plenum shielded cable combines a foil shield and stranded 18 AWG bare copper conductors to preserve signal integrity across long runs while minimizing electrical noise and crosstalk. CMP-rated construction and low-smoke PVC (LS-PVC) jacket allow safe installation in plenum spaces to meet building codes and reduce smoke risk in occupied areas. The 1000' reel-in-a-box format, integrated rip cord and countdown length markings make deployment faster and more accurate on large jobs, saving labor and material costs. Rated to 300V and designed for commercial control and security devices, this cable is TAA-compliant and RoHS/REACH-friendly for government and enterprise projects. Backed by a 3-year limited warranty, it’s a dependable choice for CCTV, access control wiring, alarm sensors and other monitoring applications. Specify the Genesis 18/4 plenum shielded cable for code-compliant, low-noise installations and order a reel today.
Features
- Minimizes electrical noise and crosstalk to protect sensitive security and surveillance signals
- Plenum-rated CMP construction lets you run cable in air-handling spaces for code-compliant installations
- 18/4 stranded conductors on a 1000' reel provide flexibility and long runs for access control, monitoring, and alarm systems
- Reel-in-a-box design with rip cord and countdown markings speeds installation and reduces waste
- Durable LS-PVC jacket and foil shielding deliver reliable performance in commercial low-voltage environments
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | Control Cable |
| Product Type | Security & Control Cables |
| Product Model | 32152103 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 32152103 |
| Technical Information | |
| Armored | No |
| Shielding | Yes |
| Jacket Type | Riser |
| Cable Rating | Plenum |
| Conductor Count | 1 |
| Jacket Material | LS-PVC |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 4 |
| Core/Cladding Diameter | 18/4 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Orange |
| Cable Length | 1000' |
| Package Type | Reel-in-a-Box |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmental Certification | RoHS |
