Genesis 32152106 18/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Blue
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 4
Key Features
- Ensures clean, reliable signal transmission for security, surveillance and access control systems by minimizing electromagnetic interference with a full foil shield.
- Plenum-rated CMP (FT6) jacket allows safe installation in air-handling spaces and simplifies code compliance for commercial buildings.
- Flexible 18/4 stranded bare copper conductors deliver excellent conductivity with easier pulls and long runs in conduit and cable trays.

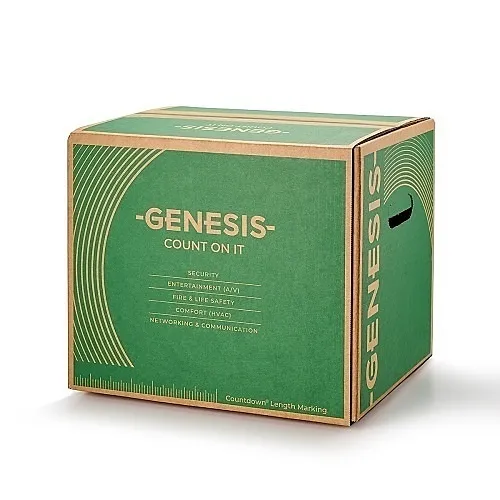

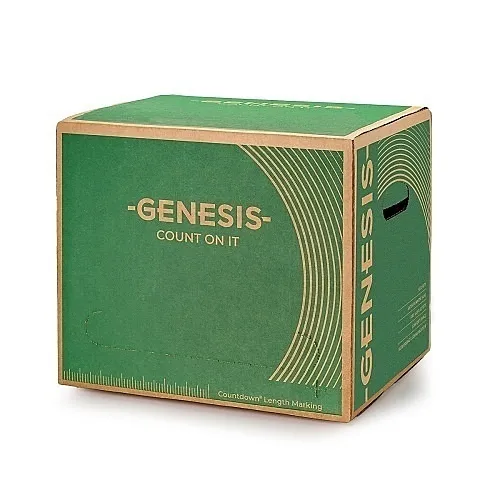

- Installer-friendly Reel-in-a-Box with countdown length markings and rip cord speeds up deployments and reduces waste on the jobsite.
- Durable, low-smoke LS-PVC jacket and RoHS/REACH compliance protect equipment while meeting environmental and safety standards.
Quick Specifications
- Product Model
- 32152106
- Brand Name
- Genesis
- Product Name
- Plenum Rated Security & Control Cable
- Product Type
- Security & Control Cables
Product Information Tabs
Overview
Optimize signal integrity for your security, surveillance and monitoring installations with the Genesis 32152106 plenum shielded cable. This Genesis plenum shielded cable (18/4 stranded) combines a continuous foil shield and bare copper conductors to reduce electrical noise and preserve sensitive control and camera signals across long runs. The CMP (FT6) plenum rating permits safe routing through air-handling spaces, helping you meet fire-code requirements in commercial and multi-tenant buildings. At 1000' on a convenient Reel-in-a-Box, the blue 18AWG 4-conductor cable delivers the flexibility installers need for access control panels, alarm systems, and video deployments. Countdown length markings, a rip cord for fast jacket removal, and a low-smoke LS-PVC jacket speed installation and minimize downtime on-site. TAA, RoHS-compliant construction and a 3-year limited warranty provide long-term reliability and regulatory peace of mind. For secure, low-voltage projects where interference suppression and plenum compliance matter, choose Genesis plenum shielded cable to streamline installs and protect your system performance. Order the 1000' reel for next commercial security or monitoring project.
Features
- Ensures clean, reliable signal transmission for security, surveillance and access control systems by minimizing electromagnetic interference with a full foil shield.
- Plenum-rated CMP (FT6) jacket allows safe installation in air-handling spaces and simplifies code compliance for commercial buildings.
- Flexible 18/4 stranded bare copper conductors deliver excellent conductivity with easier pulls and long runs in conduit and cable trays.
- Installer-friendly Reel-in-a-Box with countdown length markings and rip cord speeds up deployments and reduces waste on the jobsite.
- Durable, low-smoke LS-PVC jacket and RoHS/REACH compliance protect equipment while meeting environmental and safety standards.
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | Plenum Rated Security & Control Cable |
| Product Type | Security & Control Cables |
| Product Model | 32152106 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 32152106 |
| Technical Information | |
| Armored | No |
| Shielding | Yes |
| Jacket Type | Riser |
| Cable Rating | Plenum |
| Conductor Count | 1 |
| Jacket Material | LS-PVC |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 4 |
| Core/Cladding Diameter | 18/4 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Blue |
| Cable Length | 1000' |
| Package Type | Reel-in-a-Box |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmental Certification | RoHS |
