Genesis 32152112 18/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Natural

SKU: 32152112 Genesis
Image of WG-32152112
Product images for Genesis 32152112 18/4 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Natural. 4 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Minimizes signal interference with full-coverage foil shield to protect sensitive security and surveillance signals
  • CMP plenum-rated jacket for safe installation in air-handling spaces and compliance with building codes
  • Stranded 18 AWG bare copper conductors deliver reliable conductivity and easier termination for control, alarm and speaker runs

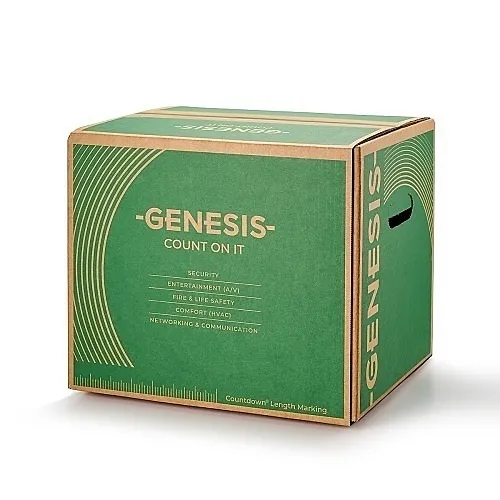

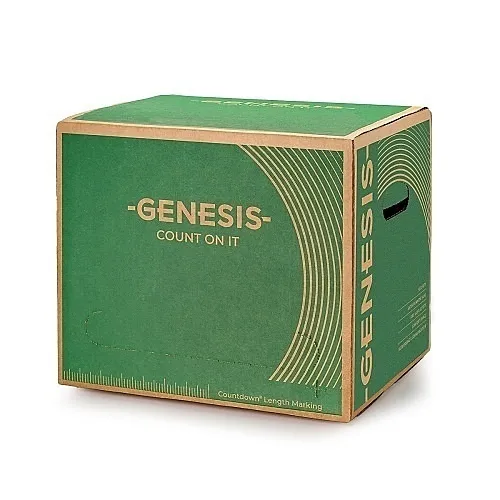

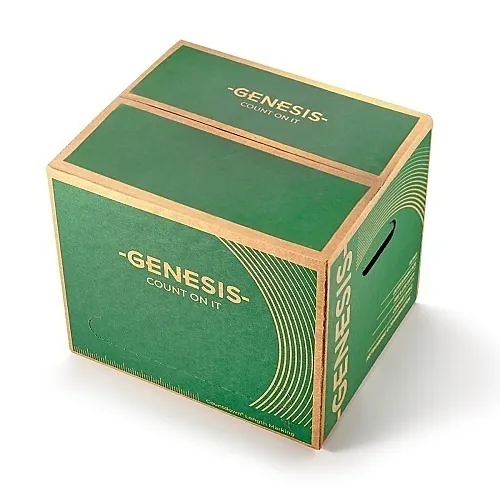

  • 1000' reel-in-a-box with countdown length markings speeds installation and reduces waste on large projects
  • Durable LS-PVC jacket and rip cord allow fast, clean jacket removal and dependable performance in commercial environments

Quick Specifications

Product Model
32152112
Brand Name
Genesis
Product Name
32152112 Control Cable
Product Type
Access & Security Cable
View Full Technical Specifications

Product Information Tabs

Overview

Optimize your security and AV installations with the Genesis 32152112 18/4 stranded shielded cable — a purpose-built plenum solution for surveillance, monitoring and access control systems. This Genesis plenum shielded cable combines stranded 18 AWG bare copper conductors with a continuous foil shield to reduce EMI/RFI and preserve signal integrity for burglar alarms, intercoms, speakers and low-voltage control circuits. The CMP-rated plenum jacket meets strict fire and smoke requirements for installation in air-handling spaces, while the 1000' reel-in-a-box format with countdown length markings speeds deployment on large builds and service jobs. Installers benefit from a flexible stranded construction that’s easier to pull and terminate, plus a rip cord and LS-PVC jacket that simplify cable preparation. TAA compliant and RoHS/REACH certified, this cable is engineered for reliable, code-compliant performance in commercial and enterprise environments. Choose the Genesis 32152112 for cleaner signals and faster installs — order now for your next security, surveillance or monitoring project.

Features

  • Minimizes signal interference with full-coverage foil shield to protect sensitive security and surveillance signals
  • CMP plenum-rated jacket for safe installation in air-handling spaces and compliance with building codes
  • Stranded 18 AWG bare copper conductors deliver reliable conductivity and easier termination for control, alarm and speaker runs
  • 1000' reel-in-a-box with countdown length markings speeds installation and reduces waste on large projects
  • Durable LS-PVC jacket and rip cord allow fast, clean jacket removal and dependable performance in commercial environments
General Information
Brand Name Genesis
Manufacturer Genesis Cable
Product Name 32152112 Control Cable
Product Type Access & Security Cable
Product Model 32152112
Packaged Quantity 1
Manufacturer Part Number 32152112
Technical Information
Material Bare Copper
Shielding Yes
Cable Type Multi-conductor, Multi-pair
Jacket Type Riser
Cable Rating Plenum
Conductor Count 1
Jacket Material LS PVC
Number of Pairs 1
Device Supported Burglar Alarm, Intercom, Speaker
Solid or Stranded Stranded
Conductor Material Bare Copper
American Wire Gauge 18AWG
Number of Conductors 4
Certifications
TAA Compliant Yes
Others
Model Number Replaces 911804SD-1000B
Physical Characteristics
Color Natural
Cable Length 1000'
Package Type Reel-in-a-Box
Insulation Material LS-PVC
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Stranded
Indoor/Outdoor Indoor
Country of Origin US
Environmentally Friendly Yes
Environmental Certification RoHS
