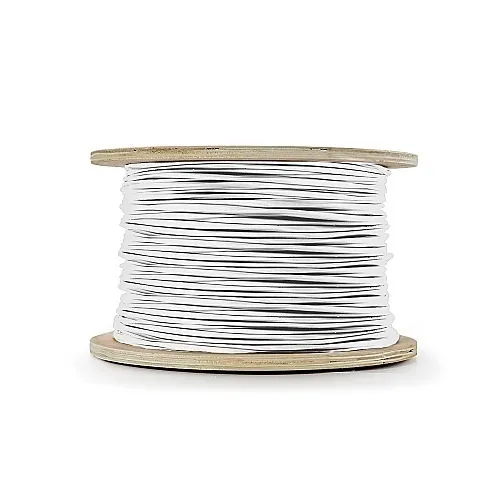

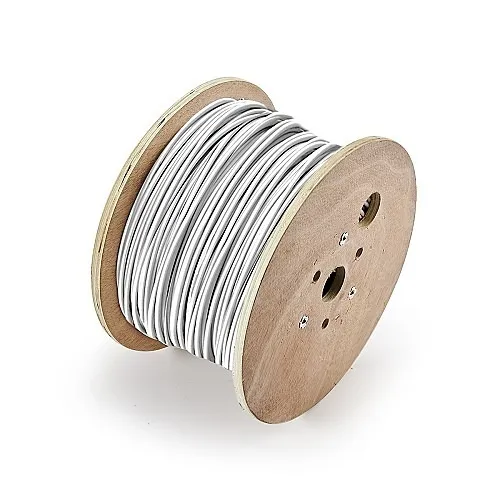

Genesis 32165012 18/6 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Natural
Image of 3
Key Features
- Minimizes electrical interference for clear, reliable signals in security, surveillance and monitoring systems
- CMP-rated plenum construction for safe, code-compliant installations in air-handling spaces
- Stranded 18 AWG bare copper conductors deliver low voltage drop and flexible routing for easy installation
- 500' reel reduces splices and saves installation time on large runs
- Installer-friendly rip cord and countdown length markings speed termination and reduce waste
- TAA and RoHS/REACH compliant with a 3-year limited warranty for procurement confidence
Quick Specifications
- Product Model
- 32165012
- Brand Name
- Genesis
- Product Name
- 32165012 Control Cable
- Product Type
- Access & Security Cable
Product Information Tabs
Overview
Optimized for low-voltage security, surveillance and monitoring systems, the Genesis 32165012 18/6 Stranded Shielded Cable delivers dependable, low-noise signal transmission in plenum environments. This Genesis plenum shielded cable uses foil shielding over stranded 18 AWG bare copper conductors to reduce EMI/RFI and preserve audio, data and control signal integrity over long runs. The CMP-rated LS-PVC jacket and 500' reel make it ideal for commercial and institutional projects where air-handling space compliance matters.
Installers benefit from flexible stranded construction, an integrated rip cord for fast jacket removal, and countdown length markings that speed deployment and reduce waste. Rated for 300V and a -20 °C to 75 °C operating range, the cable supports burglar alarms, intercoms, phones, speakers and access control devices. TAA and RoHS/REACH compliances plus a 3-year limited warranty provide procurement reliability for large-scale security and monitoring deployments. Choose Genesis 18/6 shielded plenum cable to improve system reliability and simplify installation on your next security or surveillance project.
Features
- Minimizes electrical interference for clear, reliable signals in security, surveillance and monitoring systems
- CMP-rated plenum construction for safe, code-compliant installations in air-handling spaces
- Stranded 18 AWG bare copper conductors deliver low voltage drop and flexible routing for easy installation
- 500' reel reduces splices and saves installation time on large runs
- Installer-friendly rip cord and countdown length markings speed termination and reduce waste
- TAA and RoHS/REACH compliant with a 3-year limited warranty for procurement confidence
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 32165012 Control Cable |
| Product Type | Access & Security Cable |
| Product Model | 32165012 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 32165012 |
| Technical Information | |
| Material | Bare Copper |
| Shielding | Yes |
| Cable Type | Multi-conductor, Multi-pair |
| Jacket Type | Riser |
| Cable Rating | Plenum |
| Conductor Count | 1 |
| Jacket Material | LS PVC |
| Number of Pairs | 1 |
| Device Supported | Burglar Alarm, Intercom, Phone, Speaker |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 6 |
| Core/Cladding Diameter | 18/6 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Natural |
| Weight | 22.30 lb |
| Cable Length | 500' |
| Package Type | Reel |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
