AKG 3220H00010 D12 VR Large-Diaphragm Cardioid Dynamic Microphone

SKU: 3220H00010 AKG by Harman

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Image of A4-3220H0010

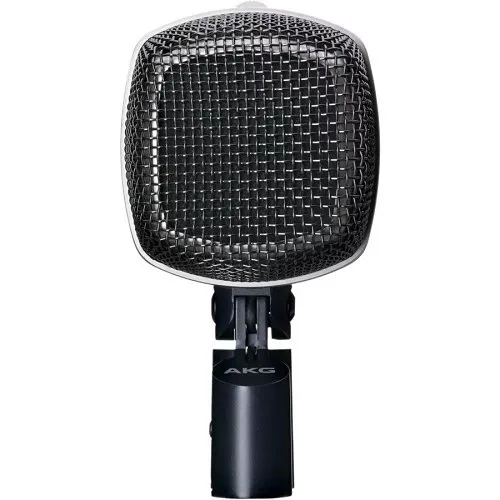

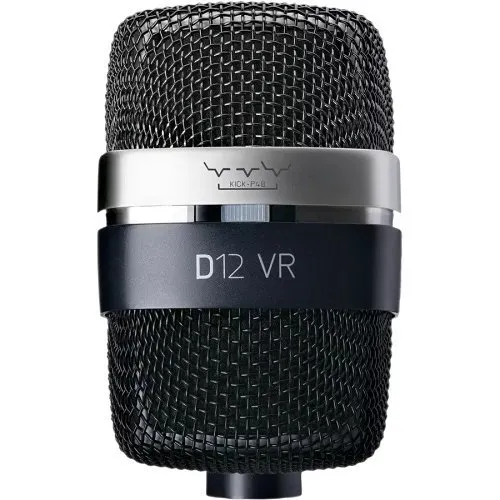

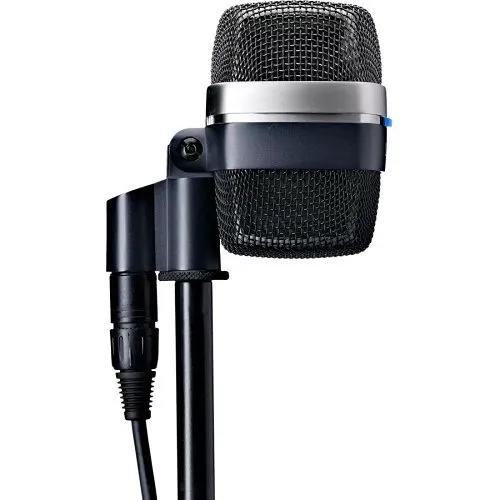

Product images for AKG 3220H00010 D12 VR Large-Diaphragm Cardioid Dynamic Microphone. 5 image(s) available. Click on image to view full size.

Key Features

  • Delivers punchy, controlled low-end for kick drums and bass instruments—produces consistent, warm tone even at high SPLs
  • Three onboard filter presets and automatic -10 dB attenuation let you shape attack and resonance quickly for different drum shells or room acoustics
  • Cardioid polar pattern reduces bleed and stage noise for cleaner close-miking in studio, live sound, and monitoring applications
  • Wired XLR connection and robust metal construction provide reliable, long-lasting performance for pro touring, broadcast, or security audio capture
  • Passive operation without phantom power keeps the mic usable in legacy rigs and simple surveillance/monitoring setups

Quick Specifications

Product Model
D12 VR
Brand Name
AKG by Harman
Product Name
D12 VR Reference Large-diaphragm Dynamic Microphone
Product Type
Microphone
View Full Technical Specifications

Explore the details

Product information

3220H00010

Overview

Designed for kick-drum specialists and pro studios, the AKG by Harman D12 VR large-diaphragm dynamic microphone brings focused, warm low-end that translates into punchy, musical recordings and reliable live sound reinforcement. This reference dynamic mic combines a thin diaphragm and the original C414 transformer to preserve low-frequency detail across a 17 Hz–17 kHz range while handling high signal levels without distortion. The cardioid polar pattern rejects off-axis bleed, delivering cleaner close-miked tracks for drum kits, broadcast, and monitoring chains. Three active filter presets—switchable on the mic body—allow fast tonal shaping, and an automatic -10 dB pad ensures headroom for aggressive playing. Wired XLR connectivity and a rugged metal body make the D12 VR a dependable choice for pro touring, studio sessions, and even security or surveillance audio capture where accurate low-frequency monitoring matters. Whether you’re recording in a home studio, tracking drums in a professional room, or adding a dedicated mic to a monitoring or surveillance feed, the AKG D12 VR gives you the control and sonic weight needed to elevate your low end. Add it to your rig and start dialing in a tighter, fuller kick sound today.

Features

  • Delivers punchy, controlled low-end for kick drums and bass instruments—produces consistent, warm tone even at high SPLs
  • Three onboard filter presets and automatic -10 dB attenuation let you shape attack and resonance quickly for different drum shells or room acoustics
  • Cardioid polar pattern reduces bleed and stage noise for cleaner close-miking in studio, live sound, and monitoring applications
  • Wired XLR connection and robust metal construction provide reliable, long-lasting performance for pro touring, broadcast, or security audio capture
  • Passive operation without phantom power keeps the mic usable in legacy rigs and simple surveillance/monitoring setups
21 of 21 specifications
Technical specifications for AKG 3220H00010 D12 VR Large-Diaphragm Cardioid Dynamic Microphone
General Information
Brand Name AKG by Harman
Manufacturer Harman International Industries, Inc
Product Name D12 VR Reference Large-diaphragm Dynamic Microphone
Product Type Microphone
Product Model D12 VR
Application/Usage Drum, Home Studio, Live Streaming, Recording
Country of Origin AT
Packaged Quantity 1
Manufacturer Part Number 3220H00010
Technical Information
Impedance 1.00kO
Polar Pattern Cardioid
Host Interface XLR
Connectivity Technology Wired
Audio
Maximum Frequency Response 17.0kHz
Minimum Frequency Response 17.0000Hz
Microphone
Microphone Type Dynamic
Microphone Technology Dynamic
Physical Characteristics
Width 2.60"
Height 4.90"
Material Metal
Product Information
Length 4.00"
