Genesis 32211012 16/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural

SKU: 32211012 Genesis

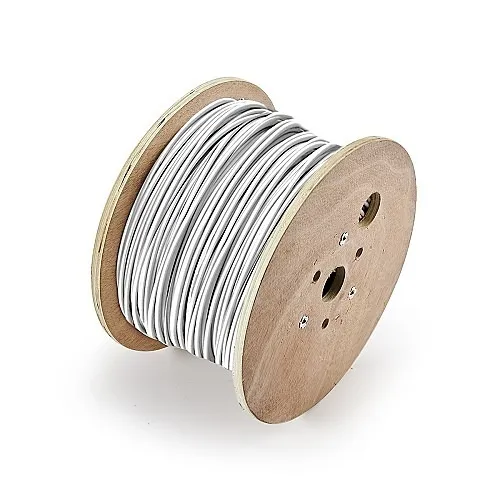

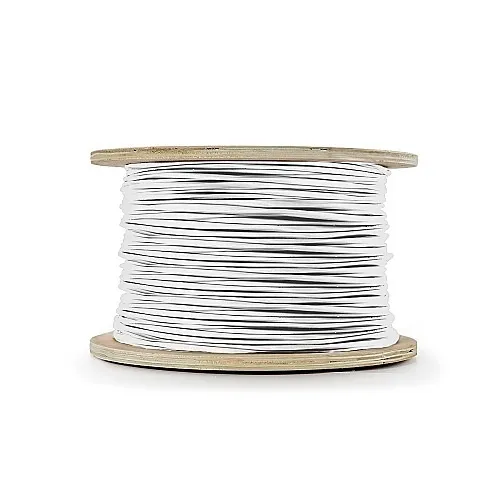

Image of WG-32211012
Product images for Genesis 32211012 16/2 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, Natural. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Ensures clean, interference-free signals for security and surveillance systems with continuous foil shielding
  • Plenum-rated CMP/FT6 jacket for safe, code-compliant installations in air-handling spaces
  • 16 AWG stranded bare copper conductors deliver reliable low-voltage performance and easier terminations
  • 1000' reel with countdown length markings reduces wasted cable and speeds large deployments
  • Installer-friendly design: low-smoke PVC insulation and rip cord for fast, damage-free jacket removal

Quick Specifications

Product Model
32211012
Brand Name
Genesis
Product Name
32211012 Control Cable
Product Type
Access & Security Cable
View Full Technical Specifications

Product Information Tabs

Overview

Ensure dependable, noise-free performance for security and monitoring installations with the Genesis 32211012 16/2 Stranded Shielded Cable. This plenum shielded cable is designed for security, surveillance, access control and other low-voltage systems that demand signal integrity. Featuring 16 AWG stranded bare copper conductors and a continuous foil shield, it minimizes electrical interference for clear transmissions to alarms, phones, speakers and monitoring devices. The CMP/FT6 plenum LS-PVC jacket meets air-handling space requirements and supports compliance in commercial environments, while the 1000' reel and countdown length markings simplify large-scale deployments and inventory tracking. Installer-focused details—low-smoke insulation, a durable rip cord for quick jacket stripping, and stranded conductors for easier terminations—cut labor time and reduce installation errors. Rated to 300 V and built for -20 °C to 75 °C operation, this Genesis plenum shielded cable offers reliable, long-term performance and comes with TAA and RoHS compliance plus a 3-year limited warranty. Order a 1000' reel today for secure, code-compliant monitoring and access control installations.

Features

  • Ensures clean, interference-free signals for security and surveillance systems with continuous foil shielding
  • Plenum-rated CMP/FT6 jacket for safe, code-compliant installations in air-handling spaces
  • 16 AWG stranded bare copper conductors deliver reliable low-voltage performance and easier terminations
  • 1000' reel with countdown length markings reduces wasted cable and speeds large deployments
  • Installer-friendly design: low-smoke PVC insulation and rip cord for fast, damage-free jacket removal
General Information
Brand Name Genesis
Manufacturer Genesis Cable
Product Name 32211012 Control Cable
Product Type Access & Security Cable
Product Model 32211012
Packaged Quantity 1
Manufacturer Part Number 32211012
Technical Information
Material Bare Copper
Shielding Yes
Cable Type Multi-conductor, Multi-pair
Jacket Type FT6, Plenum
Cable Rating Plenum
Conductor Count 1
Jacket Material LS PVC
Number of Pairs 1
Device Supported Burglar Alarm, Phone, Speaker
Solid or Stranded Stranded
Conductor Material Bare Copper
American Wire Gauge 16AWG
Number of Conductors 2
Core/Cladding Diameter 16/2
Certifications
TAA Compliant Yes
Physical Characteristics
Color Natural
Weight 28 lb
Cable Length 1000'
Package Type Reel
Insulation Material LS-PVC
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Stranded
Indoor/Outdoor Indoor
Country of Origin US
Environmentally Friendly Yes
Environmental Certification RoHS
