Genesis 32265012 18/3 Stranded Shielded Cable, Plenum, CMP, FT6, 500' (152.4 m) Reel, Natural
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

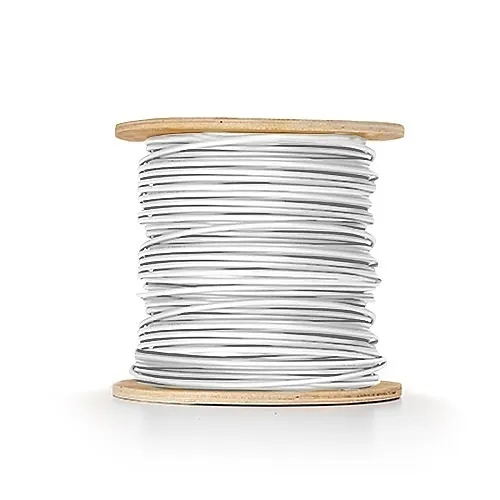

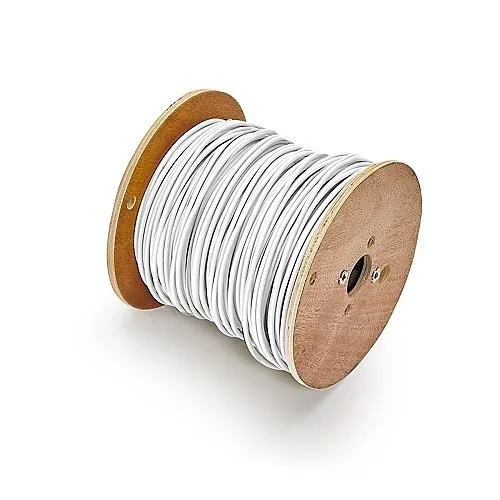

Image of 3
Key Features
- Minimizes interference for clearer signals in security, surveillance and monitoring systems
- Plenum-rated CMP construction and low-smoke jacket for safe installations in air-handling spaces
- Stranded 18 AWG bare copper conductors on a 500' reel for flexible runs and reliable conductivity
- Foil shield plus LS-PVC jacket and countdown markings speed installation and protect signal integrity
- Installer-friendly rip cord and durable jacket reduce labor time; RoHS/TAA compliant with a 3-year warranty
Quick Specifications
- Product Model
- 32265012
- Brand Name
- Genesis
- Product Name
- 32265012 Control Cable
- Product Type
- Access & Security Cable
Product Information Tabs
Overview
Deliver reliable, low-noise signal transmission for security and low-voltage systems with the Genesis 32265012 Plenum Shielded Cable. Built as part of Genesis Plenum Shielded Cables, this 18/3 stranded (18 AWG) cable on a 500' reel is optimized for surveillance camera runs, access control and alarm wiring where signal integrity matters. A full foil shield and bare copper conductors reduce electromagnetic interference and maintain clear audio/video and data paths, while the CMP plenum-rated, low-smoke PVC jacket meets code for air-handling spaces in commercial installations. Installers benefit from durable rip cord jacket-stripping and countdown length markings that speed pulls and reduce waste. Rated for 300V and a wide temperature range (-20 °C to 75 °C), the cable supports speakers, intercoms, phones, burglar alarms and other monitoring equipment. Environmentally conscious purchasers will appreciate RoHS/REACH compliance and TAA status, plus a 3-year limited warranty for added confidence. Choose Genesis for dependable, code-compliant plenum wiring on your next security or surveillance project—order a 500' reel for fast, professional installation.
Features
- Minimizes interference for clearer signals in security, surveillance and monitoring systems
- Plenum-rated CMP construction and low-smoke jacket for safe installations in air-handling spaces
- Stranded 18 AWG bare copper conductors on a 500' reel for flexible runs and reliable conductivity
- Foil shield plus LS-PVC jacket and countdown markings speed installation and protect signal integrity
- Installer-friendly rip cord and durable jacket reduce labor time; RoHS/TAA compliant with a 3-year warranty
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 32265012 Control Cable |
| Product Type | Access & Security Cable |
| Product Model | 32265012 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 32265012 |
| Technical Information | |
| Material | Bare Copper |
| Shielding | Yes |
| Cable Type | Multi-conductor, Multi-pair |
| Jacket Type | Riser |
| Cable Rating | Plenum |
| Conductor Count | 1 |
| Jacket Material | LS PVC |
| Number of Pairs | 1 |
| Device Supported | Burglar Alarm, Intercom, Phone, Speaker |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 3 |
| Core/Cladding Diameter | 18/3 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Natural |
| Cable Length | 500' |
| Package Type | Reel |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
