Genesis 33202103 22/1-Pair Stranded Shielded RS485 Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel-in-a-Box, Orange
Image of 4
Key Features
- Ensures reliable, low-noise RS‑485 communications for security and building automation networks with foil shielding and 120 Ω impedance
- CMP/FT6 plenum rating allows safe installation in air-handling spaces and compliance with strict commercial building codes
- 22 AWG stranded bare copper conductors and FEP insulation deliver consistent signal integrity and flexibility for tight pathways

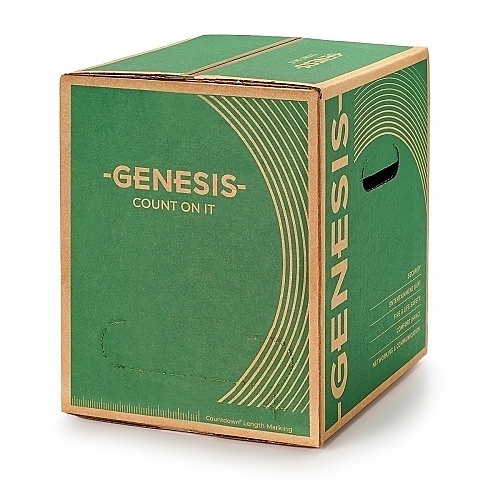

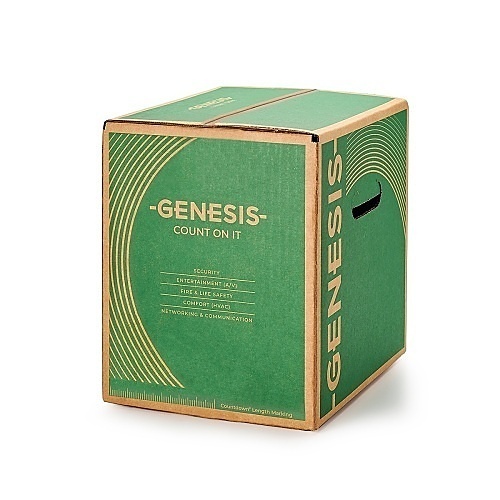

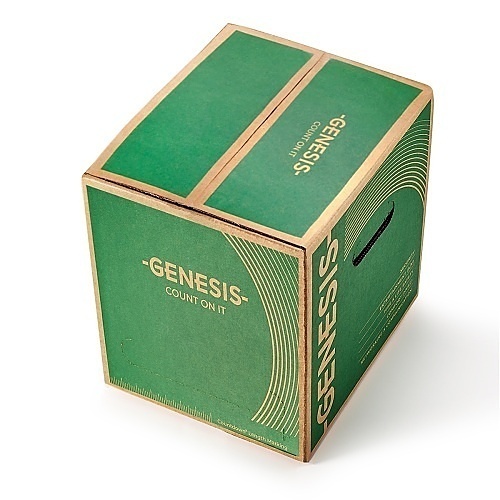

- 1000' reel-in-a-box with countdown length markings and rip cord speeds installation and inventory management on large jobs
- Orange jacket improves visibility in racks and conduits, simplifying maintenance for surveillance, access control, and monitoring systems
- TAA and RoHS compliant construction supports procurement requirements and environmental standards
Quick Specifications
- Product Model
- 33202103
- Brand Name
- Genesis
- Product Name
- 33202103 - 22 Awg 1P Str Shielded Plenum, Orange, 1000 Ft. Reel-In-Box
- Product Type
- Security & Control Cables
Explore the details
Product information
33202103
Overview
Deliver dependable, low-noise communications for security, surveillance and building automation with the Genesis 33202103 22/1‑pair stranded shielded RS485 cable. Designed for RS‑485 networks, this multipair cable combines stranded 22 AWG bare copper conductors, FEP insulation and a continuous foil shield to maintain signal integrity and minimize EMI in crowded conduit runs. Rated CMP/FT6 for plenum use, the orange jacket meets commercial fire-safety requirements for installation in air-handling spaces while remaining easy to identify during maintenance.
Supplied on a 1000' Reel‑in‑a‑Box with countdown length markings and a built-in rip cord, this cable reduces install time and waste on large projects. With a characteristic impedance of 120 ohms and stranded construction for added flexibility, it’s engineered for critical monitoring, access control, and security sensor lines where consistent data and uptime matter. Genesis' plenum-rated RS‑485 cable is also TAA and RoHS compliant to support enterprise procurement policies.
Ideal for security, surveillance, access control and building automation deployments—order the Genesis RS485 plenum cable to streamline installations and protect your network performance.
Features
- Ensures reliable, low-noise RS‑485 communications for security and building automation networks with foil shielding and 120 Ω impedance
- CMP/FT6 plenum rating allows safe installation in air-handling spaces and compliance with strict commercial building codes
- 22 AWG stranded bare copper conductors and FEP insulation deliver consistent signal integrity and flexibility for tight pathways
- 1000' reel-in-a-box with countdown length markings and rip cord speeds installation and inventory management on large jobs
- Orange jacket improves visibility in racks and conduits, simplifying maintenance for surveillance, access control, and monitoring systems
- TAA and RoHS compliant construction supports procurement requirements and environmental standards
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 33202103 - 22 Awg 1P Str Shielded Plenum, Orange, 1000 Ft. Reel-In-Box |
| Product Type | Security & Control Cables |
| Product Model | 33202103 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 33202103 |
| Technical Information | |
| Armored | No |
| Impedance | 120 ohms |
| Shielding | Yes |
| Jacket Type | Riser |
| Cable Rating | Plenum |
| Conductor Count | 1 |
| Jacket Material | LS-PVC |
| Number of Pairs | 1 |
| Solid or Stranded | Stranded |
| Conductor Material | Bare Copper |
| American Wire Gauge | 22AWG |
| Number of Conductors | 2 |
| Core/Cladding Diameter | 22/1 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Orange |
| Weight | 19.70 lb |
| Cable Length | 1000' |
| Package Type | Reel-in-a-Box |
| Insulation Material | FEP |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmental Certification | RoHS |
