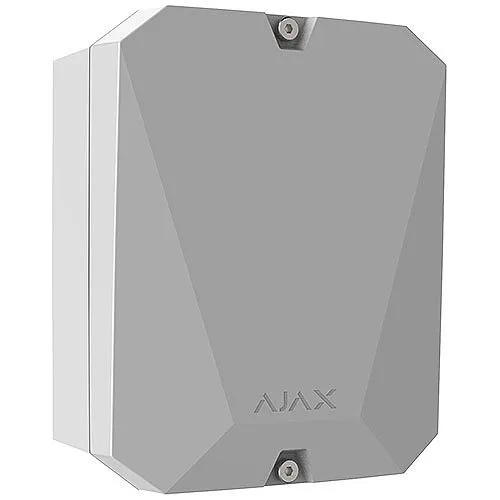

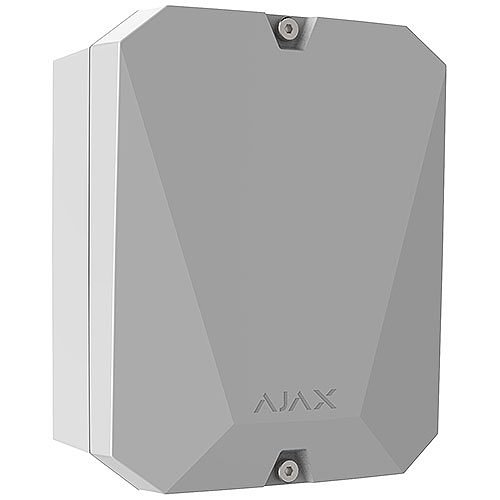

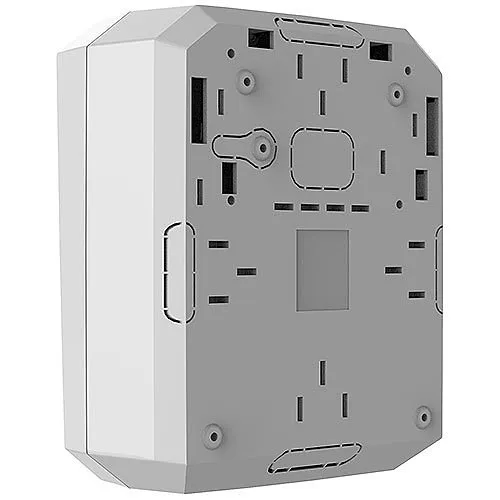

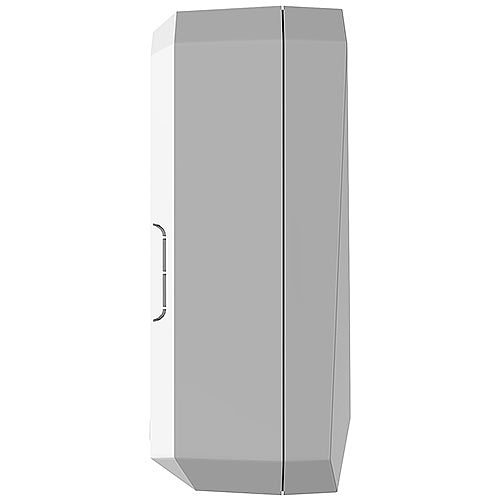

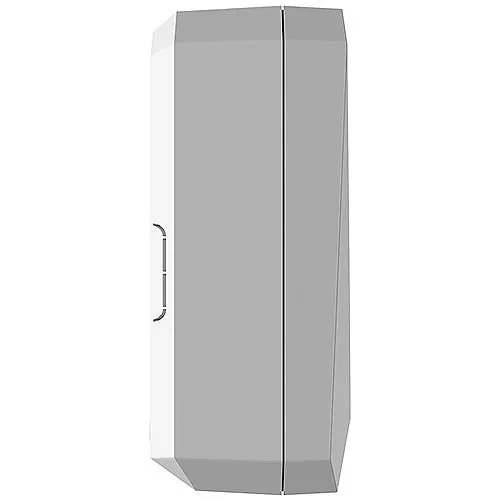

AJAX 42830.62.WH3 Module for Integrating Wired Third-Party Devices into Ajax, White
Image of 4
Key Features
- Seamlessly integrate up to 18 wired detectors and devices into an Ajax security system for centralized monitoring and faster response
- Supports long cable runs (up to 400 m) to simplify wiring in large sites and reduce installation costs
- Built‑in tamper protection and 9 configurable alarm types per zone minimize false alarms and improve site security reliability
- Hybrid installation-ready: mains powered (100–240 V~) with a 12 V⎓ backup battery to ensure uninterrupted surveillance and alarm reporting
- Supplies 10.5–15 V⎓ to connected detectors, eliminating the need for separate power supplies and speeding up deployments
- Ideal for retrofits and third‑party device integration — convert existing wired sensors into a modern monitored control panel module quickly
Quick Specifications
- Product Model
- 42830.62.WH3
- Brand Name
- AJAX
- Product Name
- Integration Module
- Product Type
- Integration Module
Explore the details
Product information
42830.62.WH3
Overview
Bring legacy wired detectors into a modern Ajax alarm ecosystem with the AJAX 42830.62.WH3 integration module — a control panel module designed to centralize security, surveillance and monitoring for commercial and residential sites. This AJAX integration module accepts 18 wired zones and supports a range of contact configurations (NC, NO, EOL, 2EOL, 3EOL), so you can reuse existing sensors and expand coverage without ripping out wiring. With support for cable runs up to 400 m, installers can connect distant devices without additional repeaters, while the unit’s 10.5–15 V⎓ output powers connected detectors directly to simplify installations. Dual tamper protection and nine alarm types per input reduce false alerts and help maintain system integrity. Powered from 100–240 V~ mains with a 12 V⎓ backup battery, the module ensures continuous operation and reliable alarm delivery. Designed for hybrid setups and third‑party integrations, this control panel module is perfect for retrofits, multi‑site deployments, and mixed surveillance environments. Add the AJAX 42830.62.WH3 to your next security specification to streamline monitoring and protect assets with fewer changes to existing infrastructure.
Features
- Seamlessly integrate up to 18 wired detectors and devices into an Ajax security system for centralized monitoring and faster response
- Supports long cable runs (up to 400 m) to simplify wiring in large sites and reduce installation costs
- Built‑in tamper protection and 9 configurable alarm types per zone minimize false alarms and improve site security reliability
- Hybrid installation-ready: mains powered (100–240 V~) with a 12 V⎓ backup battery to ensure uninterrupted surveillance and alarm reporting
- Supplies 10.5–15 V⎓ to connected detectors, eliminating the need for separate power supplies and speeding up deployments
- Ideal for retrofits and third‑party device integration — convert existing wired sensors into a modern monitored control panel module quickly
| General Information | |
|---|---|
| Brand Name | AJAX |
| Manufacturer | AJAX SYSTEMS CH |
| Product Name | Integration Module |
| Product Type | Integration Module |
| Manufacturer Part Number | 42830.62.WH3 |
| Technical Information | |
| Application/Usage | Security System |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Color | White |
| Product Information | |
| Installation Type | Hybrid |
| Miscellaneous | |
| Country of Origin | UA |
