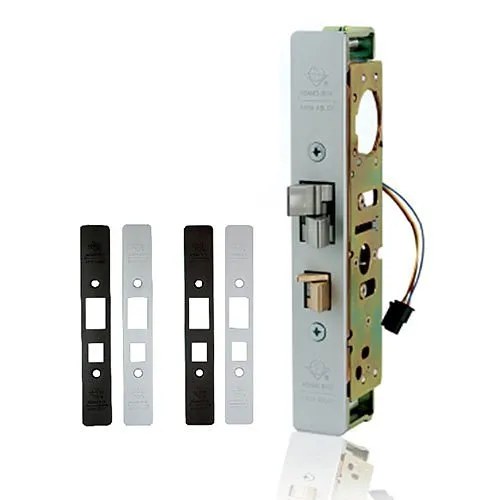

Adams Rite 4300-20-1RP 4300 Steel Hawk Electrified Deadlatch RITE Pack Kit, 31/32" Backset for Surface Mount Strike, Includes (4) Faceplates, Clear and Dark Bronze Anodized
Image of 3
Key Features
- Easy no-cut retrofit to Adams Rite MS® prepped narrow-stile doors — saves installation time and avoids costly door modification
- Field-selectable 12/16/24 VDC operation and quick-connect wiring for fast integration with access control and monitoring systems
- Non-handed design and operable by standard mortise cylinder for simplified stocking and flexible deployment

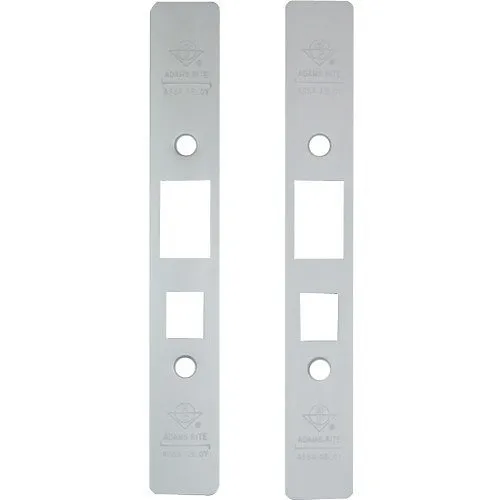

- Includes four faceplates (clear and dark bronze anodized) for clean aesthetics and fast swapping in the field
- All-steel case and metal auxiliary bolt provide robust protection against forced entry, improving perimeter security
Quick Specifications
- Brand Name
- Adams Rite by ASSA ABLOY
- Backset Size
- 0.96"
- Manufacturer
- ASSA ABLOY
- Product Line
- Steel Hawk
Product Information Tabs
Overview
Upgrade narrow-stile aluminum entrances to modern access control quickly and cost-effectively with the Adams Rite Steel Hawk 4300 electrified deadlatch. This electrified deadlatch from Adams Rite by ASSA ABLOY converts existing MS® mechanical deadlocks into integrated, monitored locking points without cutting or drilling — a key benefit for retrofit projects and facilities management. Designed for a 31/32" narrow backset and supplied as a RITE Pack kit with four faceplates (clear and dark bronze anodized), the 4300 delivers a professional finish while supporting ADA and single-motion egress when paired with Adams Rite trim.
Installers and security integrators will appreciate the non-handed design, quick-connect plug, and field-selectable 12/16/24 VDC operation for seamless connection to access control panels, alarm monitoring and building management systems. The all-steel case and all-metal auxiliary bolt resist forced entry, enhancing perimeter security and reducing false alarms. Ideal for schools, healthcare, commercial entrances and retrofit projects where surveillance, monitoring and controlled access are priorities. Specify the Adams Rite 4300 Steel Hawk electrified deadlatch to streamline installation and strengthen security. Contact us to order or configure for your access control system.
Features
- Easy no-cut retrofit to Adams Rite MS® prepped narrow-stile doors — saves installation time and avoids costly door modification
- Field-selectable 12/16/24 VDC operation and quick-connect wiring for fast integration with access control and monitoring systems
- Non-handed design and operable by standard mortise cylinder for simplified stocking and flexible deployment
- Includes four faceplates (clear and dark bronze anodized) for clean aesthetics and fast swapping in the field
- All-steel case and metal auxiliary bolt provide robust protection against forced entry, improving perimeter security
| General Information | |
|---|---|
| Brand Name | Adams Rite by ASSA ABLOY |
| Backset Size | 0.96" |
| Manufacturer | ASSA ABLOY |
| Product Line | Steel Hawk |
| Product Name | Steel Hawk 4300 Electrified Deadlatch |
| Product Type | Electric Deadlatch Lock |
| Product Model | 4300 |
| Product Series | 4300 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 4300-20-1RP |
| Technical Information | |
| Application/Usage | Door |
| Physical Characteristics | |
| Weight | 1.25 lb |
| Package Type | Box |
| Power Description | |
| Input Voltage | 12V DC, 16V DC, 24V DC |
| Product Information | |
| Mount Type | Surface Mount |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Surface Mount |
| Compatibility | Access Control Systems |
| Country of Origin | CN |
