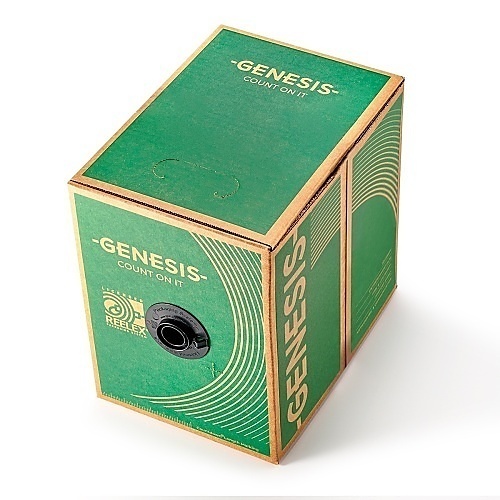

Genesis 43061101 18/2 Solid Unshielded Fire Alarm Cable, Riser, FPLR, 1000' (304.8 m) Pull Box, White
Image of 4
Key Features
- Ensures dependable life-safety signaling: solid 18/2 bare copper conductors deliver consistent, low-loss connections for fire alarm and monitoring systems.
- Built for fast, safe installs: 1000' pull box, durable rip cord and countdown length markings reduce installation time and waste.
- Riser-rated durability: PVC FPLR jacket provides riser-rated protection for vertical runs and building infrastructure, resisting sunlight and everyday wear.
- Code-ready and American-made: UL-listed, RoHS/REACH compliant and manufactured in the USA to meet commercial fire safety requirements.
- Low-maintenance performance: 300V rating and -20 °C to 75 °C operating range support reliable operation in varied building environments.
Quick Specifications
- Product Model
- 43061101
- Brand Name
- Genesis
- Product Name
- 4306-11-01 Control Cable
- Product Type
- Fire Alarm Cable
Explore the details
Product information
43061101
Overview
For reliable life-safety and building protection, the Genesis 43061101 18/2 solid unshielded fire alarm cable delivers consistent, code-ready performance for commercial fire alarm, security and monitoring applications. This Genesis FPLR riser cable features solid 18 AWG bare copper conductors and a riser-rated PVC jacket to ensure low voltage drop and safe vertical routing in riser shafts and conduit. Packaged in a 1000' pull box with countdown length markings and an integrated rip cord, it streamlines installations and minimizes downtime on large projects. UL-listed and Made in the USA, the cable is sunlight resistant, RoHS/REACH compliant and rated for -20 °C to 75 °C, giving engineers and contractors confidence in long-term reliability. Ideal for fire alarm systems, building monitoring, security and surveillance wiring, this cable supports dependable signal transmission where lives and property depend on continuous operation. Specify the Genesis 43061101 for your next life-safety or security installation — order the 1000' pull box to keep projects on schedule.
Features
- Ensures dependable life-safety signaling: solid 18/2 bare copper conductors deliver consistent, low-loss connections for fire alarm and monitoring systems.
- Built for fast, safe installs: 1000' pull box, durable rip cord and countdown length markings reduce installation time and waste.
- Riser-rated durability: PVC FPLR jacket provides riser-rated protection for vertical runs and building infrastructure, resisting sunlight and everyday wear.
- Code-ready and American-made: UL-listed, RoHS/REACH compliant and manufactured in the USA to meet commercial fire safety requirements.
- Low-maintenance performance: 300V rating and -20 °C to 75 °C operating range support reliable operation in varied building environments.
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 4306-11-01 Control Cable |
| Product Type | Fire Alarm Cable |
| Product Model | 43061101 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 43061101 |
| Technical Information | |
| Material | Bare Copper |
| Shielding | No |
| Jacket Type | Riser |
| Cable Rating | Riser |
| Conductor Count | 2 |
| Jacket Material | PVC |
| Number of Pairs | 1 |
| Device Supported | Fire Alarm |
| Solid or Stranded | Solid |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 2 |
| Connector on First End | Bare Wire |
| Core/Cladding Diameter | 18/2 |
| Connector on Second End | Bare Wire |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 14.40 lb |
| Cable Length | 1000' |
| Package Type | Pull Box |
| Insulation Material | PP |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
