DataComm 45-8011-1P Connected Media Box with Power Receptacle
Image of 7
Key Features
- Conceals bulky TV power supplies (like Samsung One Connect Box) for a clean, wireless look behind displays
- Built-in UL listed 15A/125V duplex receptacle and multiple knockouts simplify power and USB access for AV, security, and monitoring gear
- Secure mounting brackets with 18" hook-and-loop straps keep power modules stable during installation and maintenance
- Multiple knockouts for conduit up to 2" and standard 1" x 6" hole pattern streamline structured wiring and networking runs
- Flush, ventilated design (open trim ring) allows airflow to protect components in surveillance and monitoring installations
Quick Specifications
- Product Model
- 45-8011-1P
- Brand Name
- DataComm Electronics
- Product Name
- Mounting Box
- Product Type
- Mounting Box
Explore the details
Product information
45-8011-1P
Overview

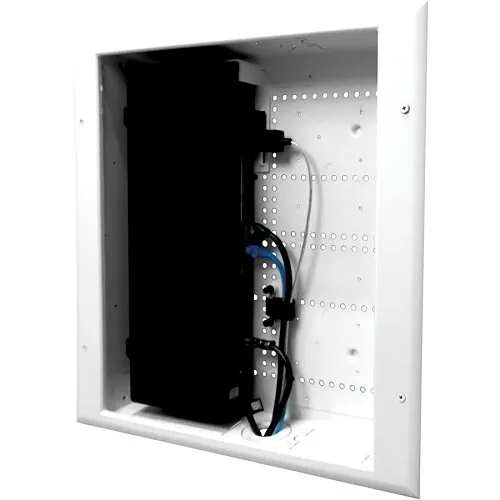

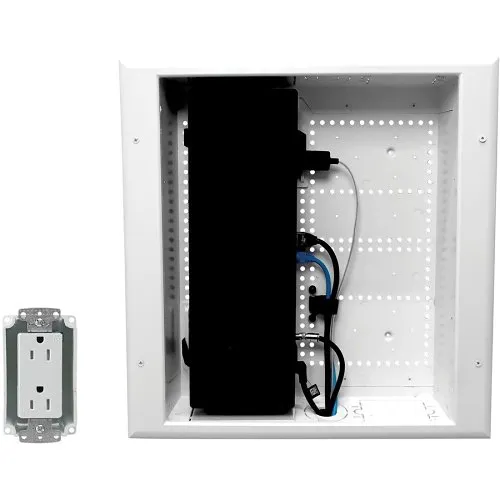

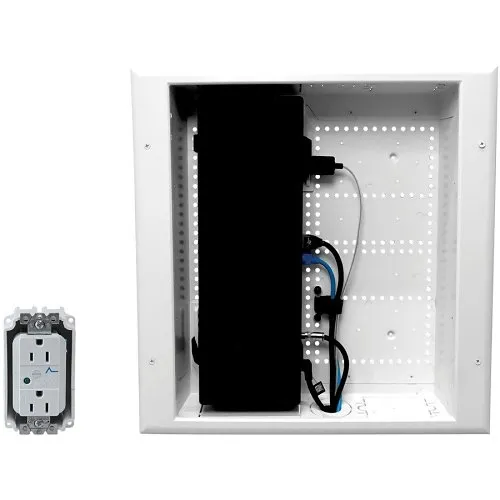

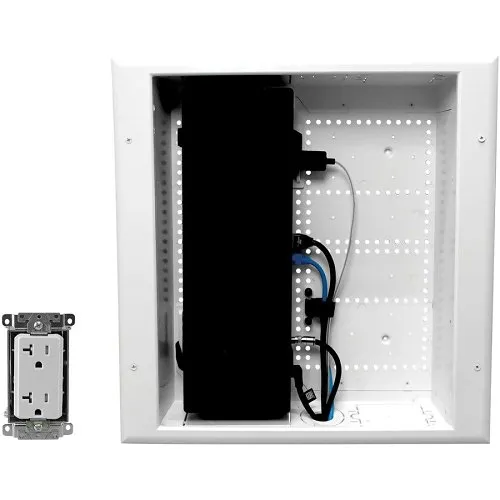

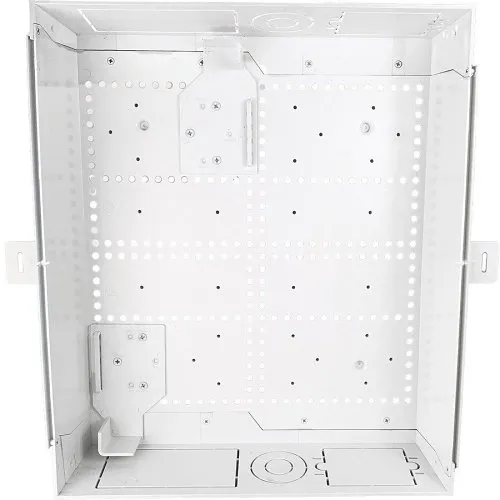

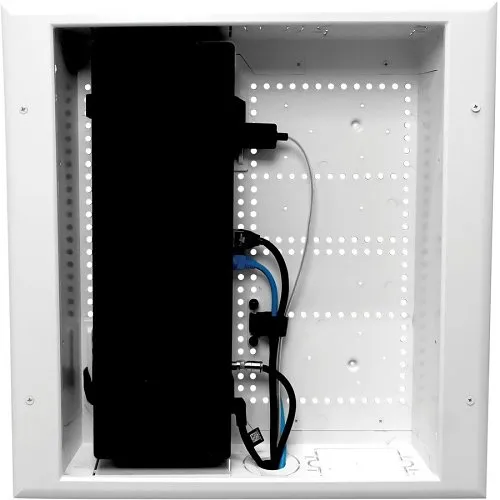

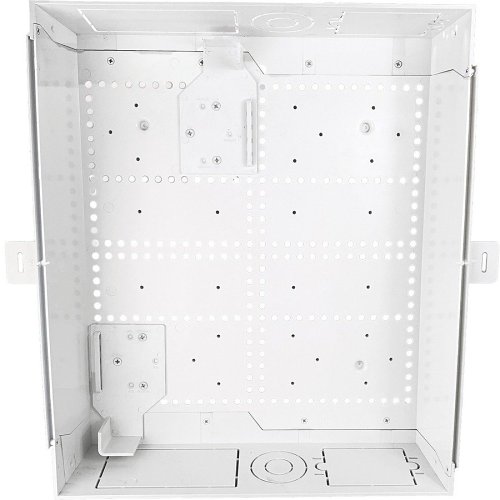

Hide bulky power supplies and simplify installations with the DataComm Electronics Connected Media Box with Power Receptacle. This structured wiring enclosure is designed to tuck large power modules—such as the Samsung One Connect Box—behind a TV or inside a media wall, delivering a clean, wireless appearance while keeping components accessible for service.
Installers benefit from a built-in UL listed 15 amp/125-volt duplex receptacle, multiple knockouts for conduit up to 2" and USB access, and secure mounting brackets with 18" hook-and-loop straps to lock devices in place. The box measures 14.3" W x 17.2" H x 3.4" D, mounts flush to the wall (front or inside of studs), and includes an open trim ring for ventilation to protect AV, security and surveillance equipment from heat buildup.
Ideal for home entertainment, security monitoring rooms, and structured wiring closets, this DataComm Electronics mounting box streamlines network and power routing while improving aesthetics and safety. Add the 45-8011-1P to your next installation for cleaner, code-friendly power management and better cable organization.
Features
- Conceals bulky TV power supplies (like Samsung One Connect Box) for a clean, wireless look behind displays
- Built-in UL listed 15A/125V duplex receptacle and multiple knockouts simplify power and USB access for AV, security, and monitoring gear
- Secure mounting brackets with 18" hook-and-loop straps keep power modules stable during installation and maintenance
- Multiple knockouts for conduit up to 2" and standard 1" x 6" hole pattern streamline structured wiring and networking runs
- Flush, ventilated design (open trim ring) allows airflow to protect components in surveillance and monitoring installations
| General Information | |
|---|---|
| Brand Name | DataComm Electronics |
| Manufacturer | DataComm Electronics, Inc |
| Product Name | Mounting Box |
| Product Type | Mounting Box |
| Manufacturer Part Number | 45-8011-1P |
| Technical Information | |
| Device Supported | Media Box, Power Supply |
| Physical Characteristics | |
| Width | 14.3" |
| Height | 17.2" |
| Weight | 4.27lb |
| Product Information | |
| Length | 3.4" |
| Miscellaneous | |
| Features | Ventilation |
| Compatibility | Samsung One Connect Box |
| Country of Origin | VN |
