Genesis 45061006 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Blue

SKU: 45061006 Genesis

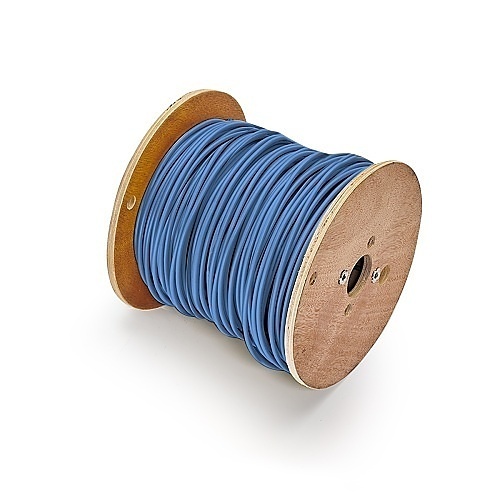

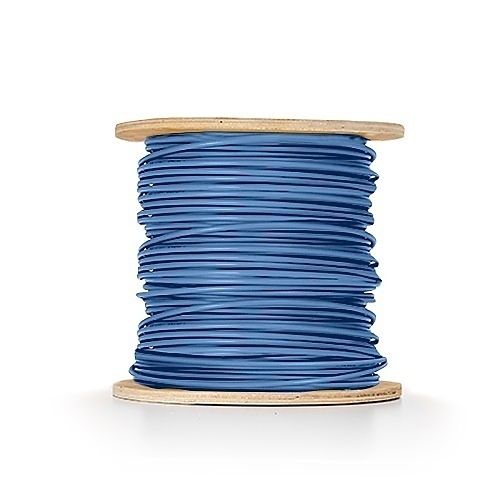

Product images for Genesis 45061006 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Blue. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Plenum-rated FPLP construction reduces smoke and toxic fumes for safer installation in air-handling spaces
  • 18/2 solid bare copper conductors deliver reliable, low-voltage signal integrity for fire alarm, monitoring and security circuits
  • 1,000' factory reel with countdown markings speeds job-site pulls and minimizes waste on large commercial projects
  • Durable LS-PVC jacket and rip cord enable fast stripping and long-term durability in building systems and data center environments
  • UL-listed, TAA compliant and Made in the USA with a 3-year limited warranty for code confidence and procurement compliance

Quick Specifications

Brand Name
Genesis
Manufacturer
Genesis Cable
Product Name
4506-10-06 Control Cable
Product Type
Fire Alarm Cable
View Full Technical Specifications

Product Information Tabs

Overview

Ensure dependable fire protection and clear signaling across your building systems with the Genesis 45061006 plenum fire alarm cable. This Genesis plenum unshielded cable is engineered for safety-critical applications—offering UL-listed FPLP plenum rating and low-smoke LS-PVC materials to meet air-handling space requirements. The 18/2 solid bare copper conductors provide consistent low-voltage performance for fire alarm, security, surveillance and monitoring circuits, while the 1,000' reel with countdown length markings keeps large installs efficient and organized. Installers benefit from a built-in rip cord for fast jacket removal and a durable plenum jacket designed for commercial environments like hospitals, airports, and office buildings. TAA compliance and a 3-year limited warranty back procurement needs and long-term reliability. Use this cable wherever code-compliant plenum-rated fire alarm or low-voltage security wiring is required. Order the Genesis 45061006 for secure, standards-compliant system wiring and streamline your next installation.

Features

  • Plenum-rated FPLP construction reduces smoke and toxic fumes for safer installation in air-handling spaces
  • 18/2 solid bare copper conductors deliver reliable, low-voltage signal integrity for fire alarm, monitoring and security circuits
  • 1,000' factory reel with countdown markings speeds job-site pulls and minimizes waste on large commercial projects
  • Durable LS-PVC jacket and rip cord enable fast stripping and long-term durability in building systems and data center environments
  • UL-listed, TAA compliant and Made in the USA with a 3-year limited warranty for code confidence and procurement compliance
General Information
Brand Name Genesis
Manufacturer Genesis Cable
Product Name 4506-10-06 Control Cable
Product Type Fire Alarm Cable
Product Model 45061006
Packaged Quantity 1
Manufacturer Part Number 45061006
Technical Information
Material Bare Copper
Shielding No
Jacket Type Plenum
Cable Rating Plenum
Conductor Count 2
Jacket Material LS PVC
Number of Pairs 1
Device Supported Fire Alarm
Solid or Stranded Solid
Conductor Material Bare Copper
American Wire Gauge 18AWG
Number of Conductors 2
Connector on First End Bare Wire
Core/Cladding Diameter 18/2
Connector on Second End Bare Wire
Certifications
TAA Compliant Yes
Physical Characteristics
Color Blue
Cable Length 1000'
Package Type Reel
Insulation Material LS-PVC
Warranty
Limited Warranty 3-Year
Miscellaneous
Indoor/Outdoor Indoor
Country of Origin US
Environmental Certification RoHS
