Genesis 45061104 18/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Pull Box, Red
Image of 4
Key Features
- Provides dependable life-safety performance with solid 18 AWG bare copper conductors for consistent signal integrity and low voltage drop
- Plenum-rated FPLP jacket and low-smoke PVC minimize toxic fumes for safe installation in air-handling spaces

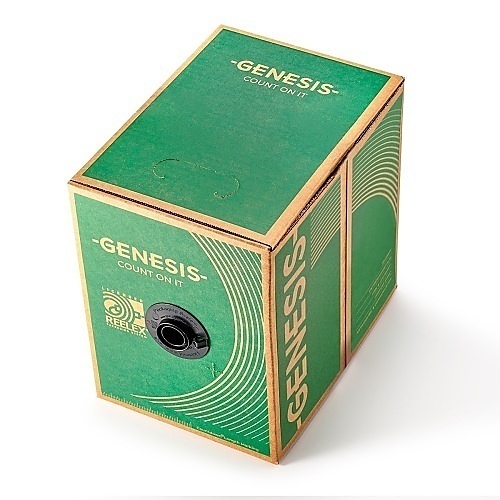

- 1000' pull box packaging reduces joins and speeds installation on commercial jobsites
- Countdown length markings and rip cord accelerate cable measurement and jacket removal, saving labor time
- UL-listed, RoHS/REACH compliant and Made in USA for code confidence and procurement reliability
- 3-year limited warranty supports long-term system uptime and reduces project risk
Quick Specifications
- Product Model
- 45061104
- Brand Name
- Genesis
- Product Name
- 18 AWG 2C SOL Plenum, Red, 1000 ft. Pull Box
- Product Type
- Fire Alarm Cables
Explore the details
Product information
45061104
Overview
Ensure reliable detection and continuous monitoring of fire and life-safety systems with the Genesis 45061104 18/2 Solid Unshielded Fire Alarm Cable. This Genesis plenum fire alarm cable is engineered for commercial security and monitoring applications where signal integrity and safety matter most. The solid 18 AWG, 2-conductor design delivers consistent conductivity for long runs, while the plenum-rated (FPLP) LS-PVC jacket and low‑smoke insulation reduce toxic emissions in air-handling spaces to meet stringent building codes.
Packaged in a 1000' pull box with countdown markings and a durable rip cord, this cable speeds installation and minimizes labor on large projects like schools, hospitals, and office buildings. It’s UL-listed, RoHS/REACH compliant, TAA friendly, and backed by a 3-year limited warranty—giving contractors and specifiers confidence in system reliability and code compliance. Ideal for fire alarm, security, and monitoring systems in plenum environments, this cable simplifies procurement and installs. Order the Genesis 18/2 plenum fire alarm cable for your next low-voltage life-safety or security deployment.
Features
- Provides dependable life-safety performance with solid 18 AWG bare copper conductors for consistent signal integrity and low voltage drop
- Plenum-rated FPLP jacket and low-smoke PVC minimize toxic fumes for safe installation in air-handling spaces
- 1000' pull box packaging reduces joins and speeds installation on commercial jobsites
- Countdown length markings and rip cord accelerate cable measurement and jacket removal, saving labor time
- UL-listed, RoHS/REACH compliant and Made in USA for code confidence and procurement reliability
- 3-year limited warranty supports long-term system uptime and reduces project risk
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 18 AWG 2C SOL Plenum, Red, 1000 ft. Pull Box |
| Product Type | Fire Alarm Cables |
| Product Model | 45061104 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 45061104 |
| Technical Information | |
| Armored | No |
| Shielding | No |
| Jacket Type | Plenum |
| Cable Rating | Plenum |
| Conductor Count | 2 |
| Jacket Material | LS-PVC |
| Number of Pairs | 1 |
| Solid or Stranded | Solid |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 2 |
| Core/Cladding Diameter | 18/2 |
| Certifications | |
| TAA Compliant | Yes |
| Others | |
| Model Number Replaces | 45062104 |
| Physical Characteristics | |
| Color | Red |
| Weight | 15.50 lb |
| Cable Length | 1000' |
| Package Type | REELEX Pull Box |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmental Certification | RoHS |
