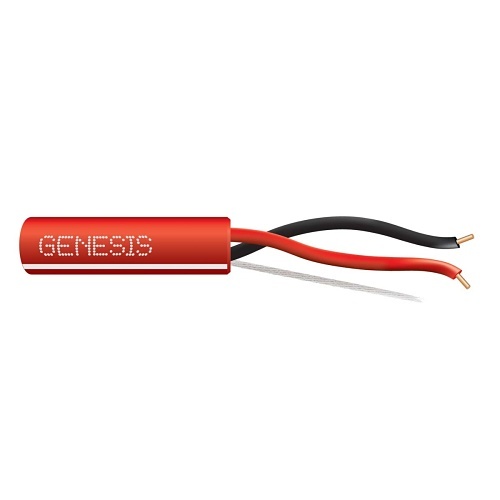

Genesis 4513104K 14/2 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, Red w/ Black Stripe
Image of 1
Key Features
- Ensures dependable life‑safety signaling for fire alarm and monitoring systems with UL-listed construction
- Plenum-rated FPLP jacket and low-smoke LS‑PVC reduce toxic fumes in air-handling spaces for safer installations
- Solid 14 AWG bare copper conductors deliver low voltage drop and consistent performance over long runs
- 1000' reel with countdown length markings and built-in rip cord speeds installation and reduces waste
- TAA and RoHS/REACH compliance plus a 3-year limited warranty support procurement and regulatory needs
- Ideal for commercial security, surveillance and building monitoring applications where code-compliant wiring is required
Quick Specifications
- Product Model
- 4513104K
- Brand Name
- Genesis
- Product Name
- 4513104K - 14 AWG 2C Sol Plenum, Red w Black Stripe, 1000 ft. Reel
- Product Type
- Fire Alarm Cable
Explore the details
Product information
4513104K
Overview
Put reliable life-safety performance at the center of your next installation with the Genesis 4513104K plenum unshielded fire alarm cable. This Genesis fire alarm cable is engineered for commercial security and monitoring systems, offering solid 14 AWG, 2-conductor bare copper for low voltage drop and consistent signal integrity to alarm control panels and detectors. The FPLP plenum-rated jacket and low-smoke LS‑PVC insulation protect air-handling spaces and minimize toxic emissions during a fire, helping you meet stringent building and fire codes. Supplied on a 1000' reel with convenient countdown length markings and a durable rip cord, the cable streamlines pulls and terminations for faster, cleaner installs. TAA and RoHS compliant and backed by a 3-year limited warranty, this cable supports procurement requirements and long-term reliability. Choose Genesis 4513104K for code-compliant wiring in schools, hospitals, data centers, and commercial spaces — order now to complete your security, surveillance, and fire monitoring projects with confidence.
Features
- Ensures dependable life‑safety signaling for fire alarm and monitoring systems with UL-listed construction
- Plenum-rated FPLP jacket and low-smoke LS‑PVC reduce toxic fumes in air-handling spaces for safer installations
- Solid 14 AWG bare copper conductors deliver low voltage drop and consistent performance over long runs
- 1000' reel with countdown length markings and built-in rip cord speeds installation and reduces waste
- TAA and RoHS/REACH compliance plus a 3-year limited warranty support procurement and regulatory needs
- Ideal for commercial security, surveillance and building monitoring applications where code-compliant wiring is required
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 4513104K - 14 AWG 2C Sol Plenum, Red w Black Stripe, 1000 ft. Reel |
| Product Type | Fire Alarm Cable |
| Product Model | 4513104K |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 4513104K |
| Technical Information | |
| Material | Bare Copper |
| Shielding | No |
| Jacket Type | Plenum |
| Cable Rating | Plenum |
| Conductor Count | 2 |
| Jacket Material | LS PVC |
| Number of Pairs | 1 |
| Device Supported | Fire Alarm |
| Solid or Stranded | Solid |
| Conductor Material | Bare Copper |
| American Wire Gauge | 14AWG |
| Number of Conductors | 2 |
| Connector on First End | Bare Wire |
| Core/Cladding Diameter | 14/2 |
| Connector on Second End | Bare Wire |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Red with Black Stripe |
| Weight | 32.60 lb |
| Cable Length | 1000' |
| Package Type | Reel |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
