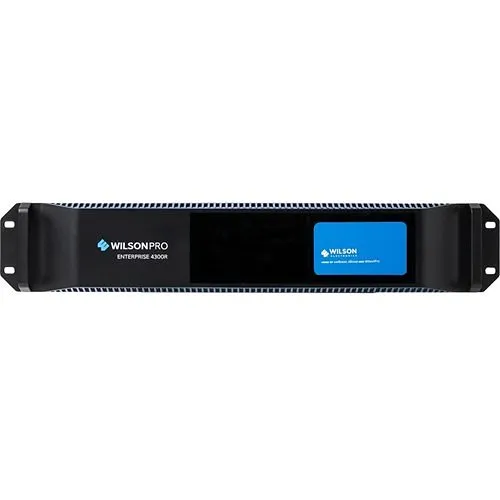

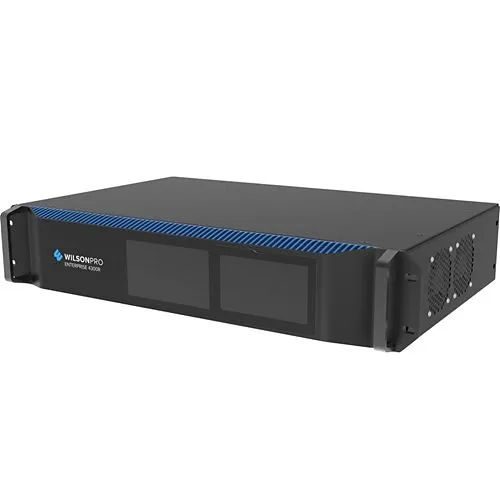

Wilson 460153 Enterprise 4300 Industrial-Grade, In-Building Cellular Repeater, 50 Ohms, N-Female
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Extends reliable cellular coverage across large commercial spaces (up to 100,000 sq. ft.), keeping staff, security, and monitoring systems online
- Three outdoor antenna ports allow targeting of multiple carrier towers to maximize reception in complex site layouts
- Four independently controlled indoor antenna ports provide zone-specific coverage for surveillance, POS, and operational areas
- Remote management via WilsonPro Cloud (wired or LTE) with real-time alerts and diagnostics simplifies maintenance for IT and facilities teams
- Industrial-grade performance with up to 26 dBm uplink and 17 dBm downlink, N-Female 50Ω connectors, and rack-mount design for robust, long-range operation
Quick Specifications
- Product Model
- 460153
- Brand Name
- Wilson Electronics
- Product Line
- WilsonPro Enterprise
- Product Name
- 460153 Cellular Phone Signal Booster
Product Information Tabs
Overview
Keep critical communications, security, and monitoring systems connected across large commercial buildings with the Wilson Electronics Enterprise 4300 in-building cellular repeater. Engineered for integrators and facility managers, this industrial-grade cellular signal booster supports multi-antenna configurations (three outdoor ports) to pull signals from multiple towers and four independently controlled indoor ports to tailor coverage for surveillance, POS, and operations. With up to 26 dBm uplink power and 17 dBm downlink power, the Enterprise 4300 maintains stable connections to distant towers and reliably distributes amplified signals across up to 100,000 sq. ft. Remote access via WilsonPro Cloud (wired or LTE modem) enables centralized monitoring, firmware updates, and instant alerts for oscillation or system faults—ideal for security and networking teams that need proactive monitoring. Rack-mountable, TAA-compliant, and built with N-Female 50Ω RF connectors, this repeater integrates cleanly into commercial IT and physical security deployments. For secure, scalable in-building cellular coverage that supports surveillance cameras, guard radios, and mobile staff, choose the Wilson Enterprise 4300—contact us to design your deployment or request a quote.
Features
- Extends reliable cellular coverage across large commercial spaces (up to 100,000 sq. ft.), keeping staff, security, and monitoring systems online
- Three outdoor antenna ports allow targeting of multiple carrier towers to maximize reception in complex site layouts
- Four independently controlled indoor antenna ports provide zone-specific coverage for surveillance, POS, and operational areas
- Remote management via WilsonPro Cloud (wired or LTE) with real-time alerts and diagnostics simplifies maintenance for IT and facilities teams
- Industrial-grade performance with up to 26 dBm uplink and 17 dBm downlink, N-Female 50Ω connectors, and rack-mount design for robust, long-range operation
| General Information | |
|---|---|
| Brand Name | Wilson Electronics |
| Manufacturer | Wilson Electronics |
| Product Line | WilsonPro Enterprise |
| Product Name | 460153 Cellular Phone Signal Booster |
| Product Type | Cellular Phone Signal Booster |
| Product Model | 460153 |
| Product Series | 4300 |
| Manufacturer Part Number | 460153 |
| Technical Information | |
| Impedance | 50 ohms |
| Antenna Type | Directional Antenna |
| Maximum Gain | 70dB |
| Minimum Gain | 70dB |
| Frequency Range | 1700 MHz to 2100 MHz, 1900 MHz to 1900 MHz, 700 MHz to 700 MHz, 850 MHz to 850 MHz |
| Application/Usage | Commercial Building |
| Maximum Coverage Area | 100000 Sq. ft. |
| Certifications | |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| RF Connector Type | N-Type |
| Physical Characteristics | |
| Color | Blue |
| Depth | 3.8" |
| Width | 12" |
| Height | 17.5" |
| Weight | 9.86lb |
| Power Description | |
| Input Voltage | 120V AC |
| Product Information | |
| Mount Type | Rack Mount |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Country of Origin | US |
