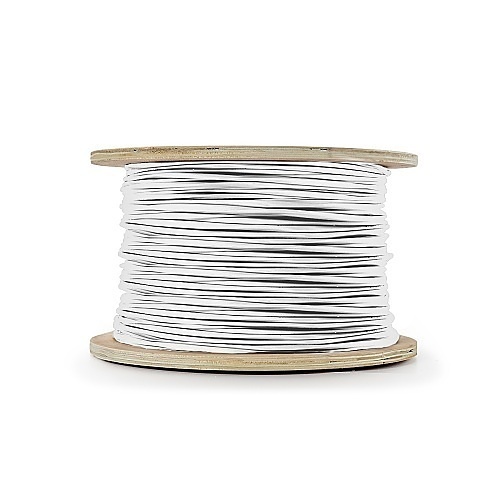

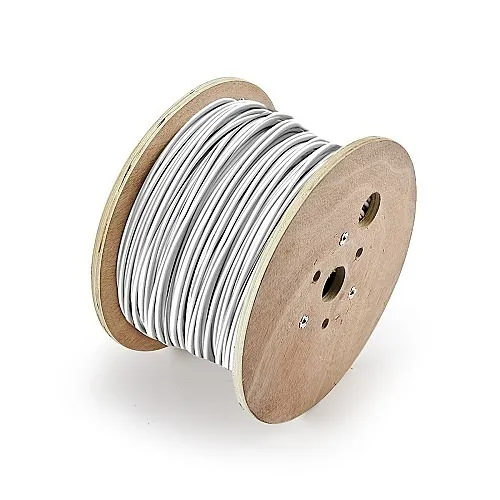

Genesis 46021001 18/2 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Reel, White
Image of 3
Key Features
- Ensures reliable fire detection and security monitoring in plenum spaces, reducing false alarms and downtime
- UL-listed, bare-copper 18/2 solid conductors for consistent conductivity and low voltage drop across long runs
- Foil shield and plenum-rated LS-PVC jacket protect signals from EMI/RFI and meet building air-handling safety requirements
- 1000' reel with countdown length markings and durable rip cord for fast pulls and efficient termination on job sites
- RoHS/REACH compliant and Made in the USA with a 3-year limited warranty for peace-of-mind in commercial installations
Quick Specifications
- Product Model
- 46021001
- Brand Name
- Genesis
- Product Name
- 46021001 - 18 AWG 2C Sol Shielded Plenum, White, 1000 ft. Reel
- Product Type
- Fire Alarm Cable
Explore the details
Product information
46021001
Overview
Deliver code-compliant, dependable fire protection and secure monitoring in plenum air spaces with the Genesis 46021001 18/2 Solid Shielded Fire Alarm Cable. Designed for contractors and security integrators, this plenum-rated (FPLP) fire alarm cable combines bare copper 18 AWG solid conductors and a full foil shield to provide consistent conductivity, low voltage drop, and reliable immunity to EMI/RFI — critical for life-safety and security systems. The 1000 ft reel with countdown length markings and a rip cord speeds installation, reduces waste, and helps teams meet tight project schedules.
Genesis builds this cable to support fire alarm, security, surveillance, and monitoring applications where plenum performance and code compliance matter. The LS-PVC plenum jacket meets stringent building safety requirements while the cable’s temperature and voltage ratings support long-term reliability. Ideal for commercial, institutional, and multi-tenant environments, the cable is UL-listed and RoHS/REACH compliant for modern installation standards. Order Genesis 18/2 Shielded Plenum Fire Alarm Cable for safer, cleaner, and faster fire and security installations — contact us for volume pricing or add to your next project order.
Features
- Ensures reliable fire detection and security monitoring in plenum spaces, reducing false alarms and downtime
- UL-listed, bare-copper 18/2 solid conductors for consistent conductivity and low voltage drop across long runs
- Foil shield and plenum-rated LS-PVC jacket protect signals from EMI/RFI and meet building air-handling safety requirements
- 1000' reel with countdown length markings and durable rip cord for fast pulls and efficient termination on job sites
- RoHS/REACH compliant and Made in the USA with a 3-year limited warranty for peace-of-mind in commercial installations
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 46021001 - 18 AWG 2C Sol Shielded Plenum, White, 1000 ft. Reel |
| Product Type | Fire Alarm Cable |
| Product Model | 46021001 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 46021001 |
| Technical Information | |
| Material | Bare Copper |
| Shielding | Yes |
| Jacket Type | Plenum |
| Cable Rating | Plenum |
| Conductor Count | 2 |
| Jacket Material | LS PVC |
| Number of Pairs | 1 |
| Device Supported | Alarm, Fire Alarm |
| Solid or Stranded | Stranded |
| American Wire Gauge | 18AWG |
| Number of Conductors | 2 |
| Connector on First End | Bare Wire |
| Core/Cladding Diameter | 18/2 |
| Connector on Second End | Bare Wire |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 17.80 lb |
| Cable Length | 1000' |
| Package Type | Reel |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
