Genesis 46021104 18/2 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Pull Box, Red
Image of 4
Key Features
- Plenum-rated FPLP construction protects life-safety circuits in air-handling spaces for code-compliant installations
- Foil shield and 18 AWG solid bare copper conductors reduce interference for reliable security, surveillance and monitoring signals

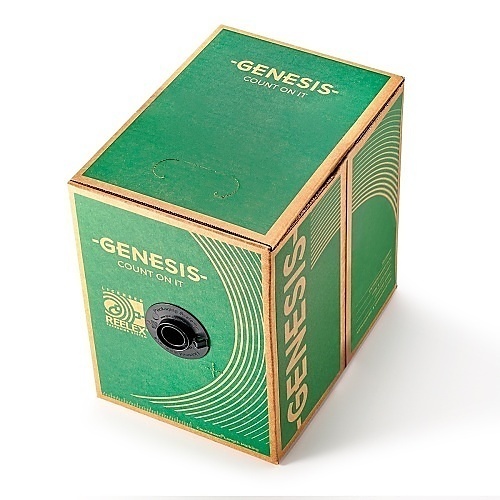

- 1000' pull-box with countdown markings and rip cord speeds installation and reduces labor on long runs
- Low-smoke PVC jacket and LS-PVC insulation minimize toxic fumes in a fire, improving occupant safety
- Made in the USA and TAA compliant for government and commercial projects, backed by a 3-year limited warranty
Quick Specifications
- Product Model
- 46021104
- Brand Name
- Genesis
- Package Type
- REELEX Pull Box
- Product Name
- 46021104 - 18 AWG 2C Sol Shielded Plenum, Red, 1000 ft. Pull Box
Explore the details
Product information
46021104
Overview
Ensure dependable fire protection and uninterrupted alarm signaling with the Genesis 46021104 18/2 solid shielded plenum fire alarm cable. Designed specifically for life-safety and low-voltage security applications, this plenum-rated FPLP cable combines solid 18 AWG bare copper conductors with a full foil shield to deliver consistent conductivity and minimize EMI for surveillance, monitoring and alarm circuits. The 1000' pull box includes countdown length markings and a durable rip cord to streamline pulls and reduce installation time on long runs in commercial buildings and data/air-handling spaces. Low-smoke PVC jacket and LS-PVC insulation meet demanding fire-safety expectations, helping limit toxic emissions during an event. Ideal for contractors and systems integrators specifying cable for fire alarm, access control, security and monitoring systems, this Genesis plenum shielded cable is TAA compliant, made in the USA, and backed by a 3-year limited warranty. Specify Genesis 46021104 for code-compliant, interference-resistant life-safety wiring — order now for reliable performance on your next security or fire alarm installation.
Features
- Plenum-rated FPLP construction protects life-safety circuits in air-handling spaces for code-compliant installations
- Foil shield and 18 AWG solid bare copper conductors reduce interference for reliable security, surveillance and monitoring signals
- 1000' pull-box with countdown markings and rip cord speeds installation and reduces labor on long runs
- Low-smoke PVC jacket and LS-PVC insulation minimize toxic fumes in a fire, improving occupant safety
- Made in the USA and TAA compliant for government and commercial projects, backed by a 3-year limited warranty
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Package Type | REELEX Pull Box |
| Product Name | 46021104 - 18 AWG 2C Sol Shielded Plenum, Red, 1000 ft. Pull Box |
| Product Type | Fire Alarm Cables |
| Product Model | 46021104 |
| Country of Origin | US |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 46021104 |
| Technical Information | |
| Armored | No |
| Shielding | Yes |
| Jacket Type | Plenum Duplex Zip |
| Cable Rating | Plenum |
| Conductor Count | 2 |
| Number of Pairs | 1 |
| Solid or Stranded | Solid |
| Conductor Material | Bare Copper |
| American Wire Gauge | 18AWG |
| Number of Conductors | 2 |
| Core/Cladding Diameter | 18/2 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Red |
| Weight | 17.80lb |
| Cable Length | 1000.00' |
| Jacket Material | LS-PVC |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmental Certification | RoHS |
