Genesis 46061104 16/2 Solid Shielded Fire Alarm Cable, Plenum, FPLP, 1000' (304.8 m) Pull Box, Red
Image of 4
Key Features
- Ensures continuous, interference-free fire detection: foil shield and solid 16 AWG conductors maintain clear signals for reliable security and monitoring systems
- Plenum-rated LS-PVC jacket for safe use in air-handling spaces, minimizing smoke and toxic emission risks during a fire

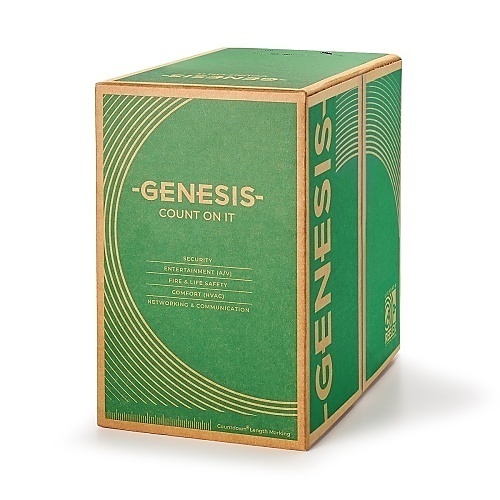

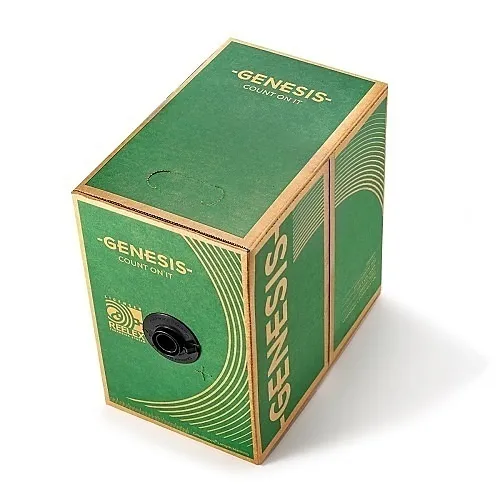

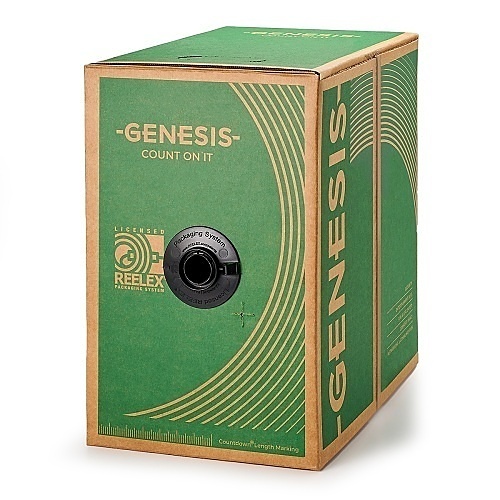

- Time-saving installation: 1000' pull box with countdown length markings and durable rip cord speeds routing and termination on large projects
- Built for code compliance and confidence: UL listed, TAA compliant and Made in the USA to meet public-sector and commercial requirements
- Durable, low-voltage performance: solid bare copper conductors reduce voltage drop and support long runs for alarm, surveillance, and control circuits
Quick Specifications
- Product Model
- 46061104
- Brand Name
- Genesis
- Package Type
- REELEX Pull Box
- Product Name
- 46061104 - 16 AWG 2C Sol Shielded Plenum, Red, 1000 ft. Pull Box
Explore the details
Product information
46061104
Overview
For dependable life-safety performance in commercial and institutional environments, the Genesis 46061104 16/2 Solid Shielded Fire Alarm Cable delivers consistent, code-compliant signal integrity for fire alarm, security and monitoring applications. This plenum-rated fire alarm cable features solid 16 AWG bare copper conductors and a full-coverage foil shield to reduce electromagnetic interference—critical for accurate alarm transmission and surveillance system reliability. The low-smoke PVC (LS-PVC) plenum jacket allows safe installation in air-handling spaces while meeting UL and TAA compliance standards. Supplied in a 1000' pull box with countdown length markings and a built-in rip cord, it speeds large installations and minimizes downtime for contractors and integrators. Rated for -20 °C to 75 °C and backed by a 3-year limited warranty, Genesis plenum shielded cable is ideal for new builds, retrofits, and multi-zone monitoring systems that demand dependable, low-voltage performance. Choose Genesis 46061104 for secure, code-ready fire alarm and surveillance cabling — order now for your next project.
Features
- Ensures continuous, interference-free fire detection: foil shield and solid 16 AWG conductors maintain clear signals for reliable security and monitoring systems
- Plenum-rated LS-PVC jacket for safe use in air-handling spaces, minimizing smoke and toxic emission risks during a fire
- Time-saving installation: 1000' pull box with countdown length markings and durable rip cord speeds routing and termination on large projects
- Built for code compliance and confidence: UL listed, TAA compliant and Made in the USA to meet public-sector and commercial requirements
- Durable, low-voltage performance: solid bare copper conductors reduce voltage drop and support long runs for alarm, surveillance, and control circuits
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Package Type | REELEX Pull Box |
| Product Name | 46061104 - 16 AWG 2C Sol Shielded Plenum, Red, 1000 ft. Pull Box |
| Product Type | Fire Alarm Cables |
| Product Model | 46061104 |
| Country of Origin | US |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 46061104 |
| Technical Information | |
| Armored | No |
| Shielding | Yes |
| Jacket Type | Plenum Duplex Zip |
| Cable Rating | Plenum |
| Conductor Count | 2 |
| Number of Pairs | 1 |
| Solid or Stranded | Solid |
| Conductor Material | Bare Copper |
| American Wire Gauge | 16AWG |
| Number of Conductors | 2 |
| Core/Cladding Diameter | 16/2 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Red |
| Weight | 27.40lb |
| Cable Length | 1000.00' |
| Jacket Material | LS-PVC |
| Insulation Material | LS-PVC |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmental Certification | RoHS |
