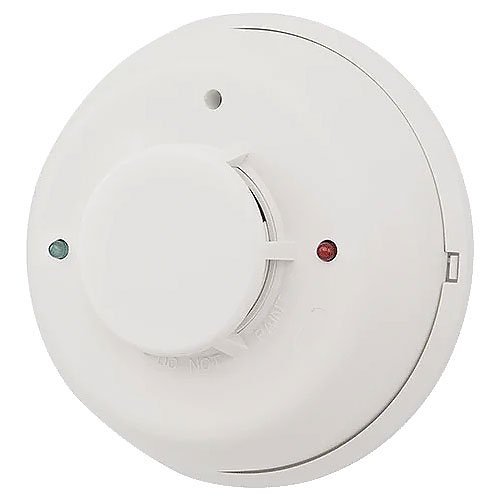

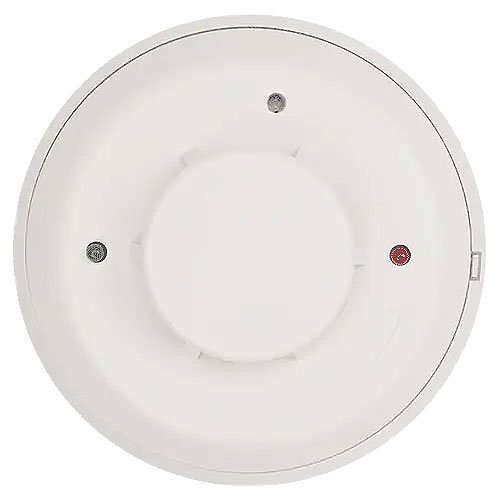

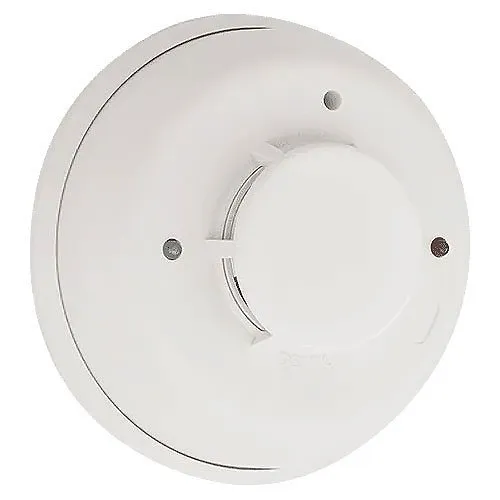

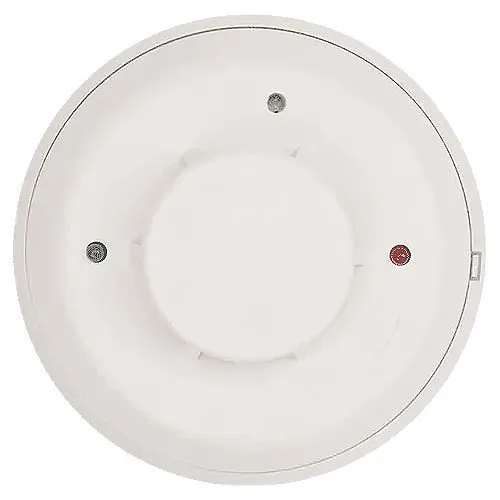

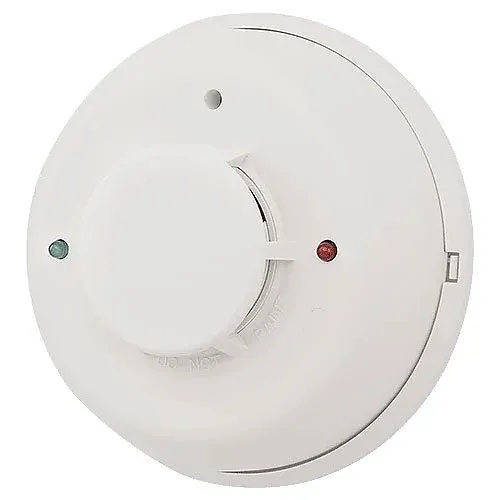

System Sensor 4WTR-B Photoelectric i3 Series Smoke Detector, 4-Wire, Thermal Sensor, Form Relay, White
Image of 4
Key Features
- Fast, reliable dual detection: photoelectric smoke sensor plus isolated thermal sensor reduces false alarms and improves life-safety accuracy
- Plug-in i3 base with Stop-Drop 'N Lock mounting for fast, installer-friendly wiring and reduced labor
- Form C relay and 4-wire design enable direct integration with alarm panels, building automation and remote monitoring
- Built-in 85 dB sounder for clear occupant notification and rapid response during an event
- Maintenance-focused features—remote maintenance signaling, drift compensation and simplified sensitivity measurement—to lower service time and costs
Quick Specifications
- Brand Name
- System Sensor
- Manufacturer
- Honeywell International, Inc
- Product Name
- i3 4WTR-B Smoke Detector
- Product Type
- Smoke Detector
Frequently Bought Together
System Sensor 4WTR-B Photoelectric i3 Series Smoke Detector, 4-Wire, Thermal Sensor, Form Relay, White
$93.05
4 items selected
Total: $260.93
Product Information Tabs
Overview
Protect occupants and property with dependable, installer-friendly detection crafted for commercial security and fire monitoring. The System Sensor 4WTR-B is a 4-wire, photoelectric combination detector with an isolated thermal sensor and Form C relay that delivers early smoke recognition and added heat detection to reduce nuisance alarms and improve overall system reliability. Its photoelectric sensing chamber targets smoldering fires while the thermal element provides backup in high-draft or high-heat areas.
Designed for efficiency, the i3 series plug-in base and Stop-Drop 'N Lock mounting simplify installation and support neat pre-wiring; inline terminals and ample base space speed up commissioning. The 85 dB built-in sounder provides strong local alerting, and maintenance features such as remote maintenance signaling, drift compensation, and simplified sensitivity measurement minimize service visits and lifecycle costs. Operating on 35 V DC and backed by a 3-year limited warranty, the 4WTR-B integrates smoothly into security, surveillance and building automation systems for continuous monitoring.
Ideal for offices, retail, healthcare and institutional environments, the System Sensor 4WTR-B improves detection accuracy and lowers total cost of ownership—add it to your life-safety system or contact us for configuration assistance.
Features
- Fast, reliable dual detection: photoelectric smoke sensor plus isolated thermal sensor reduces false alarms and improves life-safety accuracy
- Plug-in i3 base with Stop-Drop 'N Lock mounting for fast, installer-friendly wiring and reduced labor
- Form C relay and 4-wire design enable direct integration with alarm panels, building automation and remote monitoring
- Built-in 85 dB sounder for clear occupant notification and rapid response during an event
- Maintenance-focused features—remote maintenance signaling, drift compensation and simplified sensitivity measurement—to lower service time and costs
| General Information | |
|---|---|
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Product Name | i3 4WTR-B Smoke Detector |
| Product Type | Smoke Detector |
| Product Model | 4WTR-B |
| Package Length | 5.700000000 |
| Product Series | i3 |
| Manufacturer Part Number | 4WTR-B |
| Technical Information | |
| Sensor Type | Photoelectric |
| Detectable Medium | Smoke |
| Sensing Technology | Photoelectric |
| Connectivity Technology | Wired |
| Controls/Indicators | |
| Status Indicators | Yes |
| Environmental Conditions | |
| Operating Relative Humidity (H-H) | 0-95% |
| Physical Characteristics | |
| Color | White |
| Height | 2" |
| Weight | 7.05oz |
| Form Factor | Ceiling Mount |
| Power Description | |
| Input Voltage | 35V DC |
| Product Information | |
| Diameter | 5.3" |
| Mount Type | Ceiling Mount |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 85 dB sounder, Drift compensation and smoothing algorithms, Dual-color LEDs, Flexible mounting options, Form C relay, In-line terminals, Isolated thermal sensor, Plug-in design (base included), Remote maintenance signaling, Removable cover and chamber, Simplified sensitivity measurement, Stop-Drop N Lock attachment to the base |
| Country of Origin | MX |
