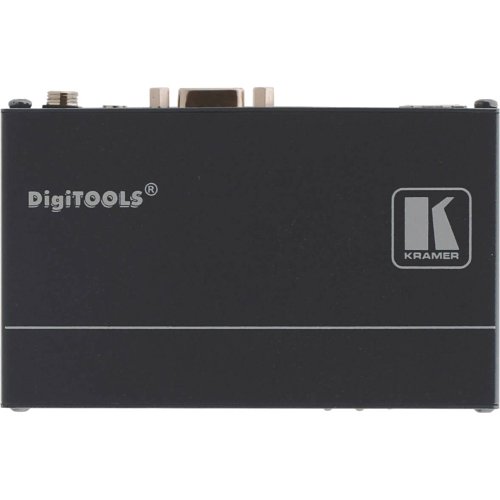

Kramer 50-80022190 TP-580Rxr 4K60 4:2:0 HDMI HDCP 2.2 Receiver with RS-232 and IR over Extended-Reach HDBaseT
Image of 4
Key Features
- Extends 4K@60Hz (4:2:0) HDMI over CAT cabling up to 100m (330ft) to deliver reliable long‑reach video for pro AV and security installations.
- Carries up to 32 channels of uncompressed digital audio for studio‑grade surround sound and accurate monitoring.
- Bidirectional RS-232 and IR pass-through enable centralized control and remote device management for surveillance and control rooms.
- HDMI 2.0 and HDCP 2.2 compliant with I-EDIDPro™ for plug‑and‑play compatibility and simplified multi‑source integration.
- Compact, fanless DigiTOOLS enclosure supports dropped‑ceiling or rack mounting to save space and reduce maintenance.
Quick Specifications
- Product Model
- TP-580Rxr
- Brand Name
- Kramer Electronics
- Product Line
- DigiTOOLS
- Product Name
- DigiTOOLS TP-580Rxr Video Extender Receiver
Explore the details
Product information
50-80022190
Overview
Deliver dependable long‑reach 4K video and centralized control across your facility with the Kramer Electronics TP-580Rxr Pro Receiver. This HDBaseT receiver extends HDMI 2.0 with HDCP 2.2 and 4K@60Hz (4:2:0) video up to 100m (330ft) over standard CAT copper cabling while transporting up to 32 channels of uncompressed audio. Bidirectional RS-232 and IR support streamline device control and automation—ideal for conference rooms, control rooms, security, surveillance and monitoring installations that require remote management of displays and decoders. Kramer’s I-EDIDPro™ intelligent EDID handling ensures plug‑and‑play compatibility across mixed-source environments, reducing commissioning time and avoiding display handshake issues. The compact, fanless DigiTOOLS enclosure mounts in dropped ceilings or side‑by‑side in 1U racks with the optional RK-3T adapter, minimizing rack footprint and maintenance. Specify the TP-580Rxr when you need a rugged, HDBaseT‑compliant receiver that preserves 4K quality and simplifies system control—contact us for pricing and deployment recommendations.
Features
- Extends 4K@60Hz (4:2:0) HDMI over CAT cabling up to 100m (330ft) to deliver reliable long‑reach video for pro AV and security installations.
- Carries up to 32 channels of uncompressed digital audio for studio‑grade surround sound and accurate monitoring.
- Bidirectional RS-232 and IR pass-through enable centralized control and remote device management for surveillance and control rooms.
- HDMI 2.0 and HDCP 2.2 compliant with I-EDIDPro™ for plug‑and‑play compatibility and simplified multi‑source integration.
- Compact, fanless DigiTOOLS enclosure supports dropped‑ceiling or rack mounting to save space and reduce maintenance.
| General Information | |
|---|---|
| Brand Name | Kramer Electronics |
| Manufacturer | Kramer Electronics LTD |
| Product Line | DigiTOOLS |
| Product Name | DigiTOOLS TP-580Rxr Video Extender Receiver |
| Product Type | IR Receiver |
| Product Model | TP-580Rxr |
| Manufacturer Part Number | 50-80022190 |
| Technical Information | |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 590.55' |
| Number of Output Devices Supported | 1 |
| Display & Graphics | |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Physical Characteristics | |
| Depth | 2.81" |
| Width | 4.72" |
| Height | 0.96" |
| Product Information | |
| Mount Type | Rack Mount |
| Video | |
| Graphics Mode | 4K UHD |
