Kramer 50-80249090 PT-120xl Computer Graphics Video over Twisted Pair Receiver
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Extends computer graphics and HDMI-quality video over standard CAT-5/UTP/STP cabling for cleaner, longer runs and simplified infrastructure
- Delivers crisp WUXGA (1920x1200) and 1080p video up to 250m (820') to support high-resolution monitoring and surveillance applications

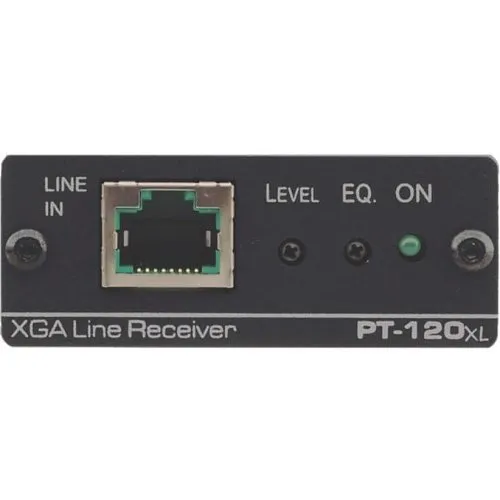

- Built-in Level (Gain) and EQ (Peaking) controls let integrators fine-tune image quality on-site for critical control-room displays
- Power Connect System powers both transmitter and receiver from one adapter when units are within 50m (150'), reducing cabling and installation time

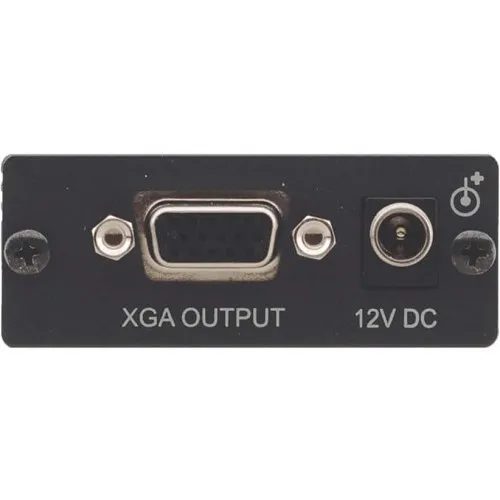

- Compact receiver with VGA output and RJ-45 networking port for simple integration into existing AV and security networks
- Reliable wired connectivity designed for security, surveillance, and monitoring deployments where stable, low-latency video is required
Quick Specifications
- Product Model
- PT-120xl
- Brand Name
- Kramer Electronics
- Product Name
- Computer Graphics Video over Twisted Pair Receiver
- Product Type
- Video Extender Receiver
Frequently Bought Together
Kramer 50-80249090 PT-120xl Computer Graphics Video over Twisted Pair Receiver
$149.10
2 items selected
Total: $174.05
Explore the details
Product information
50-80249090
Overview
Optimize long-distance computer-graphics and monitoring displays with the Kramer Electronics PT-120xl Computer Graphics Video over Twisted Pair Receiver. Purpose-built for security, surveillance and AV monitoring environments, this video extender receiver converts a twisted-pair feed back to a high-quality VGA/graphics output so you can locate displays away from source equipment. The PT-120xl supports up to WUXGA (1920x1200) and full 1080p, maintaining clarity for detailed surveillance feeds and control-room graphics over distances up to 250m (820'). Installation is straightforward over CAT-5/UTP/STP cabling, and on-board Level (Gain) and EQ controls let technicians optimize picture fidelity without changing source settings. The Power Connect System can power both the transmitter and receiver from a single adapter when units are within 50m (150'), cutting power cabling costs and simplifying deployments. Compact, robust and designed for professional AV and security networks, the PT-120xl is ideal for command centers, monitoring stations, and distributed digital signage. Contact your Kramer reseller to specify the PT-120xl for your next surveillance or monitoring installation.
Features
- Extends computer graphics and HDMI-quality video over standard CAT-5/UTP/STP cabling for cleaner, longer runs and simplified infrastructure
- Delivers crisp WUXGA (1920x1200) and 1080p video up to 250m (820') to support high-resolution monitoring and surveillance applications
- Built-in Level (Gain) and EQ (Peaking) controls let integrators fine-tune image quality on-site for critical control-room displays
- Power Connect System powers both transmitter and receiver from one adapter when units are within 50m (150'), reducing cabling and installation time
- Compact receiver with VGA output and RJ-45 networking port for simple integration into existing AV and security networks
- Reliable wired connectivity designed for security, surveillance, and monitoring deployments where stable, low-latency video is required
| General Information | |
|---|---|
| Brand Name | Kramer Electronics |
| Manufacturer | Kramer Electronics LTD |
| Product Name | Computer Graphics Video over Twisted Pair Receiver |
| Product Type | Video Extender Receiver |
| Product Model | PT-120xl |
| Manufacturer Part Number | 50-80249090 |
| Technical Information | |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 820.00' |
| Number of Output Devices Supported | 1 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| VGA Out | Yes |
| Network (RJ-45) | Yes |
| Number of VGA Outputs | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Physical Characteristics | |
| Depth | 2.56" |
| Height | 1.00" |
| Video | |
| Graphics Mode | WUXGA |
