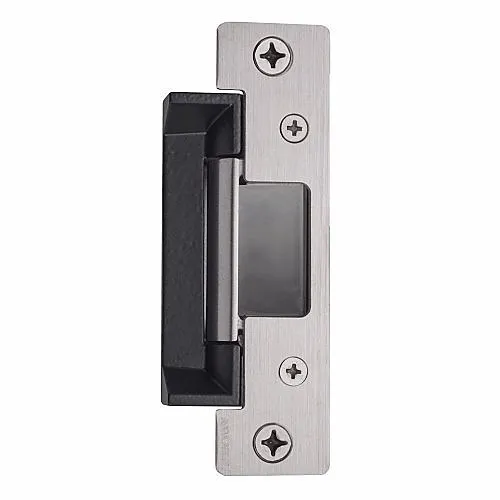

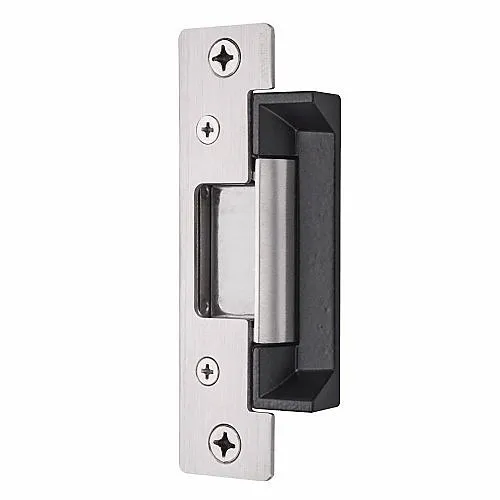

HES 5300C-630-LBM 5300 Series Universal Electric Strike, Includes 501 and 501A Faceplates, Latchbolt Monitor, Stainless Steel

Designed for demanding access control environments, the HES by ASSA ABLOY 5300 Series electric strike provides secure, code-compliant performance where fire-rating and limited jamb depth are critical. This universal electric strike delivers dependable security for commercial entrances, server rooms, healthcare and education facilities by supporting up to a 3-hour fire rating and accommodating latchbolts up to 5/8" throw. Constructed from stainless steel with a tamper-resistant keeper-pin design, the 5300C-630-LBM exceeds the strength of typical frames and locks while offering a compact 1-1/16" body depth for tight installations.

Installers benefit from non-handed hardware, plug-in connectors and field-selectable fail-safe/fail-secure operation to speed deployments and reduce on-site changes. Dual-voltage compatibility (12/24V) and PoE-friendly features make the strike easy to integrate with modern access control, security and surveillance systems. A built-in latchbolt monitor enables real-time monitoring and improves alarm/event reporting. For reliable, long-life operation this strike is endurance-rated for 1 million cycles and provides robust static strength—ideal for high-traffic, mission-critical doors. Specify the HES 5300 Series electric strike for secure, monitored access control—contact us for ordering or integration support.

• Fire-rated, compact design protects openings in up to 3-hour rated doors while fitting tight jambs for retrofit and new installations
• Heavy-duty stainless steel construction and tamper-resistant keeper pin deliver reliable security and long service life
• Field-selectable fail-safe/fail-secure operation and non-handed design simplify installation and reduce inventory needs
• Dual-voltage (12/24V) and PoE-friendly compatibility for flexible integration with access control and surveillance systems
• Built-in latchbolt monitor provides real-time monitoring for access control events and security reporting
• Endurance-tested to 1 million cycles with 1,500 lb static strength for high-traffic commercial and institutional applications
