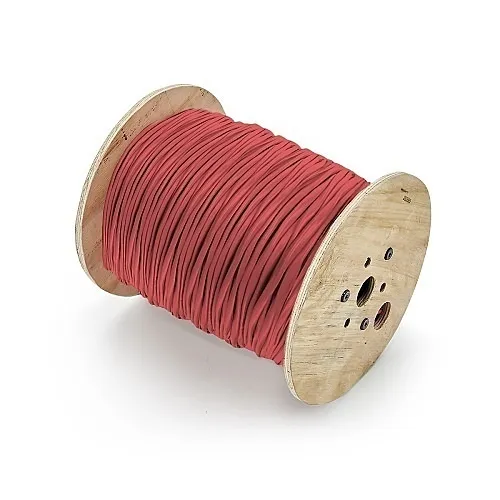

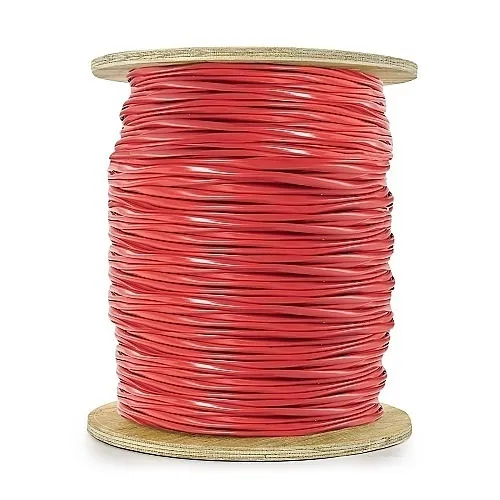

Genesis 55031004 16/2-Pair Solid Unshielded Fire Alarm Cable, NYC Certified, FPLP, 1000' (304.8 m) Reel, Red
Image of 3
Key Features
- NYC-certified FPLP plenum construction ensures code-compliant installation in air-handling spaces for reliable fire protection
- Solid 16 AWG, 2-pair bare copper conductors deliver low-voltage stability for consistent alarm signaling and monitoring
- Fluoropolymer (PVDF) insulation and jacket provide UV/sunlight resistance and a wide temperature range for long-term durability
- 1000' reel with countdown length markings streamlines installation, reduces waste, and speeds deployment on large projects
- Made in the USA with RoHS compliance and a 3-year limited warranty for dependable performance and procurement confidence
Quick Specifications
- Product Model
- 55031004
- Brand Name
- Genesis
- Product Name
- 55031004 - 16 Awg 2P Sol Nyc Ll5, Red, 1000 FT. Reel
- Product Type
- Fire Alarm Cables
Explore the details
Product information
55031004
Overview
When building or upgrading life-safety systems, dependable signal integrity and code compliance are essential. The Genesis 55031004 16/2-pair solid unshielded fire alarm cable is designed for exactly that—providing consistent, low-voltage transmission for fire alarm, security, surveillance, and monitoring systems. As an NYC-certified FPLP plenum cable, this 1000' reel meets strict New York City fire-safety requirements and is suitable for use in plenum (air-handling) spaces. Solid 16 AWG bare copper conductors with fluoropolymer (PVDF) insulation and jacket deliver low voltage drop, sunlight resistance, and a wide operating temperature range (-20 °C to 150 °C), ensuring long-term reliability in commercial installations. Countdown length markings and a convenient reel format speed installation and inventory control on projects of any scale. UL-listed construction and domestic manufacturing provide added assurance for contractors and facility managers. Ideal for fire alarm circuits, security panels, and integrated building monitoring, this Genesis fire alarm cable helps you meet code while keeping systems responsive. Order the 55031004 reel for your next installation and streamline deployment of critical life-safety and surveillance infrastructure.
Features
- NYC-certified FPLP plenum construction ensures code-compliant installation in air-handling spaces for reliable fire protection
- Solid 16 AWG, 2-pair bare copper conductors deliver low-voltage stability for consistent alarm signaling and monitoring
- Fluoropolymer (PVDF) insulation and jacket provide UV/sunlight resistance and a wide temperature range for long-term durability
- 1000' reel with countdown length markings streamlines installation, reduces waste, and speeds deployment on large projects
- Made in the USA with RoHS compliance and a 3-year limited warranty for dependable performance and procurement confidence
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 55031004 - 16 Awg 2P Sol Nyc Ll5, Red, 1000 FT. Reel |
| Product Type | Fire Alarm Cables |
| Product Model | 55031004 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 55031004 |
| Technical Information | |
| Armored | No |
| Shielding | No |
| Jacket Type | Plenum |
| Cable Rating | Plenum |
| Conductor Count | 4 |
| Jacket Material | PVDF |
| Number of Pairs | 2 |
| Solid or Stranded | Solid |
| Conductor Material | Bare Copper |
| American Wire Gauge | 16AWG |
| Number of Conductors | 4 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Red |
| Weight | 58 lb |
| Cable Length | 1000' |
| Package Type | Reel/Spool |
| Insulation Material | PVDF |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmental Certification | RoHS |
