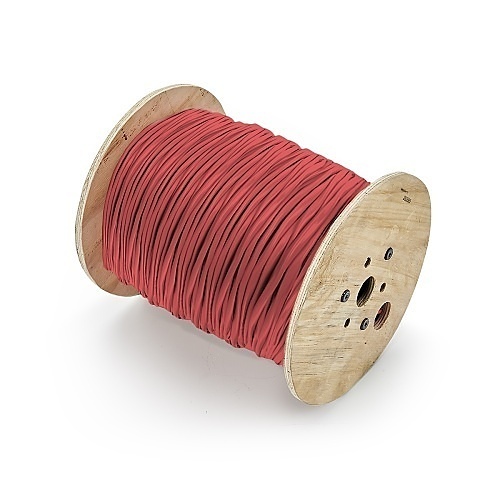

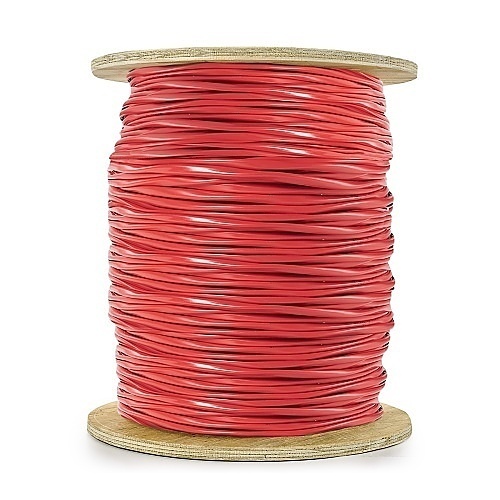

Genesis 55041004 14/1-Pair Solid Unshielded Fire Alarm Cable, NYC Certified, FPLP, 1000' (304.8 m) Reel, Red
Image of 3
Key Features
- Ensures continuous, code-compliant fire protection in NYC installations, reducing rework and inspection delays
- Solid 14AWG bare copper conductors deliver reliable low-voltage signaling for fire, security and monitoring systems
- Plenum-rated FPLP jacket (PVDF) allows safe installation in air-handling spaces and protects signal integrity
- 1000' reel with countdown markings speeds installation and inventory management on large projects
- UL-listed and TAA-compliant, Made in the USA with a 3-year limited warranty for long-term reliability
Quick Specifications
- Brand Name
- Genesis
- Manufacturer
- Genesis Cable
- Product Name
- 55041004 - 14 Awg 1P Sol Nyc Ll5, Red, 1000 FT. Reel
- Product Type
- Fire Alarm Cables
Product Information Tabs
Overview
Built to keep life-safety systems performing, the Genesis 55041004 14/1-Pair Solid Unshielded Fire Alarm Cable is an NYC-certified solution for commercial fire alarm, security and monitoring applications. This Genesis fire alarm cable combines solid 14 AWG bare copper conductors with a plenum-rated PVDF (FPLP) jacket to provide consistent low-voltage signal transmission and durable protection in air-handling spaces. The 1000' reel format with clear countdown length markings streamlines runs and reduces installation time on multi-floor projects. Rated for -20 °C to 150 °C and 300V, the cable meets rigorous UL standards and New York City code requirements, helping you pass inspections and maintain compliance. Ideal for fire alarm panels, supervised detection loops and integrated security or surveillance systems, this cable supports dependable monitoring and fast fault response. Choose Genesis for a professional-grade, code-compliant cable that minimizes downtime and simplifies large-scale deployments. Order the 1000' reel today or contact our sales team to specify this cable for your next fire alarm, security, or building management system installation.
Features
- Ensures continuous, code-compliant fire protection in NYC installations, reducing rework and inspection delays
- Solid 14AWG bare copper conductors deliver reliable low-voltage signaling for fire, security and monitoring systems
- Plenum-rated FPLP jacket (PVDF) allows safe installation in air-handling spaces and protects signal integrity
- 1000' reel with countdown markings speeds installation and inventory management on large projects
- UL-listed and TAA-compliant, Made in the USA with a 3-year limited warranty for long-term reliability
| General Information | |
|---|---|
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Product Name | 55041004 - 14 Awg 1P Sol Nyc Ll5, Red, 1000 FT. Reel |
| Product Type | Fire Alarm Cables |
| Product Model | 55041004 |
| Packaged Quantity | 1 |
| Manufacturer Part Number | 55041004 |
| Technical Information | |
| Armored | No |
| Shielding | No |
| Jacket Type | Plenum |
| Cable Rating | Plenum |
| Conductor Count | 2 |
| Jacket Material | PVDF |
| Number of Pairs | 1 |
| Solid or Stranded | Solid |
| Conductor Material | Bare Copper |
| American Wire Gauge | 14AWG |
| Number of Conductors | 2 |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Color | Red |
| Weight | 45.20 lb |
| Cable Length | 1000' |
| Package Type | Reel/Spool |
| Insulation Material | PVDF |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | US |
| Environmental Certification | RoHS |
