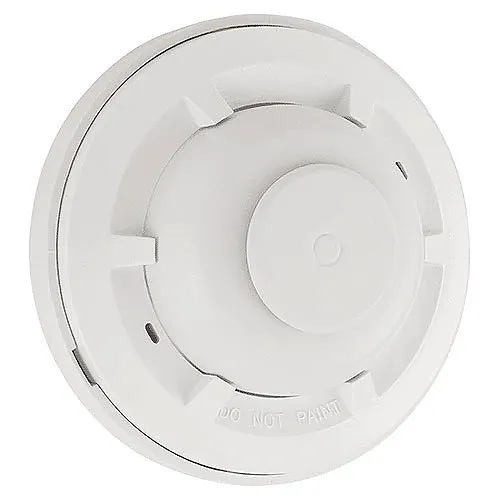

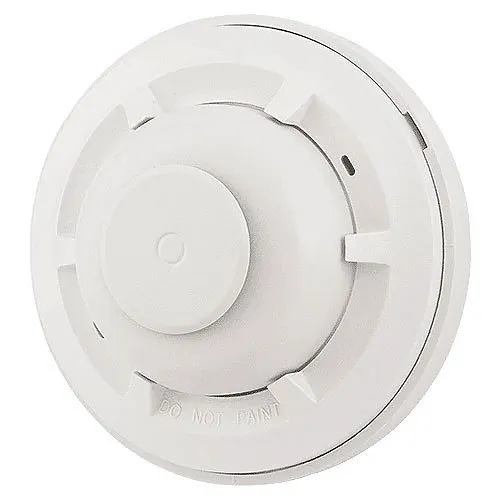

System Sensor 5601P 135F Fixed Temp/Rate-of-Rise, Single-Circuit Mechanical Heat Detector with Plain Housing
Image of 3
Key Features
- Reliable early fire detection with both 135°F fixed-temperature and restorable rate-of-rise (15°F/min) elements for faster response to fast-developing fires
- Simple, cost-effective installation: single-circuit mechanical design with reversible bracket that mounts to single-gang, octagonal or 4-square back boxes
- Discreet white plain housing to blend into residential or light-commercial environments while supporting wired monitoring and security systems
- Visual post-activation collector clearly indicates triggered units for faster inspection and maintenance after an event
- Field-testable ROR element and easy-to-use terminal screws reduce service time and minimize downtime
- Backed by a 3-year limited warranty for long-term reliability in life-safety and fire protection applications
Quick Specifications
- Product Model
- 5601P
- Brand Name
- System Sensor
- Product Name
- 5601P Temperature and Humidity Sensor with Alarm
- Product Type
- Temperature and Humidity Sensor
Frequently Bought Together
System Sensor 5601P 135F Fixed Temp/Rate-of-Rise, Single-Circuit Mechanical Heat Detector with Plain Housing
$21.34
2 items selected
Total: $28.66
Explore the details
Product information
5601P
Overview
Designed for reliable, low-maintenance fire protection, the System Sensor 5601P is a single-circuit mechanical heat detector that combines a 135°F fixed-temperature element with a restorable rate-of-rise (ROR) sensor. This hybrid design gives facilities dependable protection against slowly developing smoldering fires and rapid temperature spikes — improving alarm accuracy for security and monitoring systems. The ROR activates at approximately 15°F (8.3°C) rise per minute and can be reset for routine field testing, reducing service calls and keeping your life-safety infrastructure online.
The 5601P installs easily into single-gang, octagonal or 4-square back boxes (with adapter) and features a reversible mounting bracket for flush or surface-mount applications. Its plain white housing blends into residential and light-commercial interiors while offering a visible post-activation collector for quick identification of activated units. Compatible with wired alarm networks and backed by a 3-year limited warranty, the 5601P is ideal for fire protection, security, and building monitoring projects. Add the System Sensor 5601P to your next installation for dependable heat detection—contact us for availability and bulk pricing.
Features
- Reliable early fire detection with both 135°F fixed-temperature and restorable rate-of-rise (15°F/min) elements for faster response to fast-developing fires
- Simple, cost-effective installation: single-circuit mechanical design with reversible bracket that mounts to single-gang, octagonal or 4-square back boxes
- Discreet white plain housing to blend into residential or light-commercial environments while supporting wired monitoring and security systems
- Visual post-activation collector clearly indicates triggered units for faster inspection and maintenance after an event
- Field-testable ROR element and easy-to-use terminal screws reduce service time and minimize downtime
- Backed by a 3-year limited warranty for long-term reliability in life-safety and fire protection applications
| General Information | |
|---|---|
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Product Name | 5601P Temperature and Humidity Sensor with Alarm |
| Product Type | Temperature and Humidity Sensor |
| Product Model | 5601P |
| Product Series | 5600 |
| Country of Origin | CN |
| Heat Detector Type | Combination (Fixed Temperature and Rate-of-Rise) |
| Manufacturer Part Number | 5601P |
| Technical Information | |
| Connectivity Technology | Wired |
| Physical Characteristics | |
| Color | White |
| Height | 1.70" |
| Weight | 6.00oz |
| Form Factor | Box |
| Power Description | |
| Input Voltage | 120V AC, 230V AC, 28V DC |
| Product Information | |
| Installation Type | Residential |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Additional Information | 50 Feet Space CoverSelf Restoring Rate-of-Rise (ROR) SensorRate-of-Rise Threshold 15°F (8.3°C) rise per minute, Maximum Installation Temperature 100°F |
