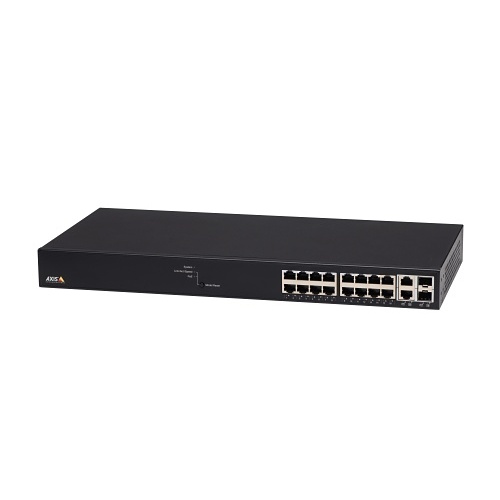

AXIS T8516 T85 Series 16-Port PoE+ Network Switch, Black
Image of 3
Key Features
- Simplifies surveillance deployments with integrated DHCP and automatic Axis device discovery for faster, error-free installs
- Powers up to 16 PoE cameras with 30 W per port and 240 W total PoE budget to eliminate separate power supplies
- Managed Gigabit switching with 2 SFP/RJ45 combo ports for flexible uplinks and reliable network performance
- Intuitive graphical topology and admin interface for quick system overview, status monitoring and troubleshooting
- Compact, metal desktop design with TAA/NDAA compliance and a 3-year warranty for secure, long-term installations
Quick Specifications
- Product Model
- T8516
- Brand Name
- AXIS Communications
- Product Line
- T
- Product Name
- AXIS T8516 POE+ NETWORK SWITCH US
Frequently Bought Together
AXIS T8516 T85 Series 16-Port PoE+ Network Switch, Black
$884.42
5 items selected
Total: $1,851.64
Explore the details
Product information
5801-694
Overview
Built for surveillance and monitoring professionals, the AXIS T8516 from Axis Communications is a managed network switch that streamlines installation and keeps your camera network reliable. This 16-port PoE+ network switch delivers 30 W per port (240 W total) so you can power up to 16 PoE cameras without external injectors, reducing cabling and installation time. An integrated DHCP server and automatic Axis device discovery speeds up setup, while the intuitive graphical topology provides a clear system overview for rapid troubleshooting and ongoing monitoring. With Gigabit performance and two SFP/RJ45 combo ports, the T8516 supports high-bandwidth video streams and flexible fiber uplinks for resilient, scalable security networks. Built in a rugged metal chassis and backed by TAA/NDAA compliance and a 3-year warranty, it’s ideal for commercial, government and enterprise surveillance deployments. Choose AXIS T8516 to simplify your network infrastructure and accelerate project delivery — add it to your security installation or monitoring solution today.
Features
- Simplifies surveillance deployments with integrated DHCP and automatic Axis device discovery for faster, error-free installs
- Powers up to 16 PoE cameras with 30 W per port and 240 W total PoE budget to eliminate separate power supplies
- Managed Gigabit switching with 2 SFP/RJ45 combo ports for flexible uplinks and reliable network performance
- Intuitive graphical topology and admin interface for quick system overview, status monitoring and troubleshooting
- Compact, metal desktop design with TAA/NDAA compliance and a 3-year warranty for secure, long-term installations
| General Information | |
|---|---|
| Brand Name | AXIS Communications |
| Manufacturer | Axis Communications |
| Product Line | T |
| Product Name | AXIS T8516 POE+ NETWORK SWITCH US |
| Product Type | Network Switches |
| Product Model | T8516 |
| Product Series | T85 |
| Country of Origin | TW |
| Manufacturer Part Number | 5801-694 |
| Technical Information | |
| Power Consumption | 30.0000W |
| Network Switch Type | Managed |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Certifications | |
| TAA Compliant | Yes |
| Certifications | EN 55024, EN 55032 Class A, EN 55035, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| NDAA Compliant | Yes |
| Environmental Conditions | |
| Operating Temperature (T-T) | 0-50°C |
| I/O Expansions | |
| Shared SFP Slot | Yes |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Number of Total Expansion Slots | 2 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | No |
| Total Number of Network Ports | 16 |
| Management & Protocols | |
| Manageable | Yes |
| Security Features | IEC/EN 60950-1, IEC/EN 62368-1, S-Mark, UL 60950-1 |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T, 1000Base-X |
| Network & Communication | |
| Layer Supported | 2 |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Physical Characteristics | |
| Color | Black |
| Depth | 8.30" |
| Width | 17.40" |
| Height | 1.70" |
| Weight | 6.61lb |
| Material | Metal |
| Power Description | |
| Frequency | 50Hz |
| PoE Budget | 30W |
| Power Source | AC Power |
| Input Voltage | 100-240V AC |
| Maximum Power Consumption | 45.00W |
| Product Information | |
| Mount Type | Desktop Mount |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH, RoHS, WEEE |
