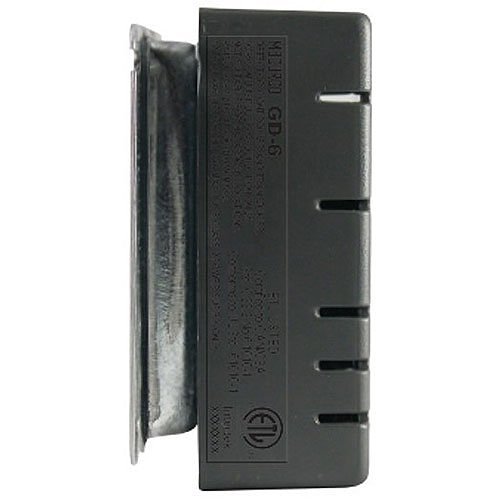

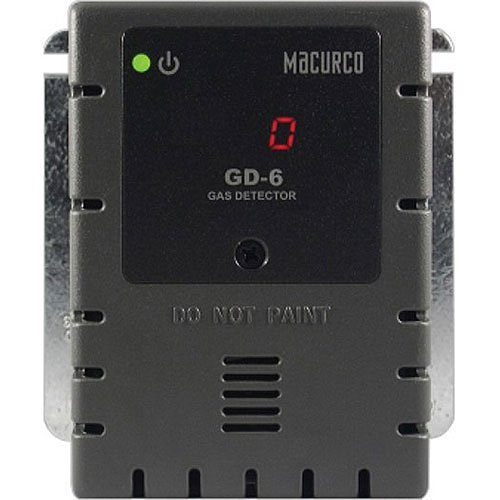

Macurco GD-6 Series Combustible Gas Fixed Gas Detector, Propane (LP) Methane (NG) Hydrogen (H2), 12-24VAC or 12-32VDC, Gray
Image of 5
Key Features
- Continuous protection against combustible leaks with selectable Methane, Propane or Hydrogen sensing to safeguard personnel and property.
- Automatic ventilation and alarm control via 5 A fan relay, 0.5 A alarm relay and 4-20mA output to reduce exposure and speed response.
- Simple integration with building security and monitoring systems, including Macurco DVP-120 compatibility for centralized surveillance.
- Factory-calibrated catalytic sensor with optional field calibration and UL/ETL listing for dependable, code-ready performance.
- Easy installation to standard 4" x 4" electrical boxes and supervised design that signals detector faults to maintain system reliability.
Quick Specifications
- Product Model
- GD-6
- Brand Name
- Macurco
- Product Line
- Commercial
- Product Name
- Combustible Gas Detector
Explore the details
Product information
70-0716-0802-3
Overview
Protect personnel and infrastructure with continuous, code-ready combustible gas monitoring. The Macurco GD-6 Series combustible gas detector delivers reliable detection for Methane (NG), Propane (LP) or Hydrogen (H2) with catalytic sensing engineered for commercial environments. Designed for fast response, the GD-6 provides a 4-20mA current loop plus a 5 A fan relay and 0.5 A alarm relay to trigger ventilation, shutoff valves or warning devices automatically and limit hazardous concentrations.

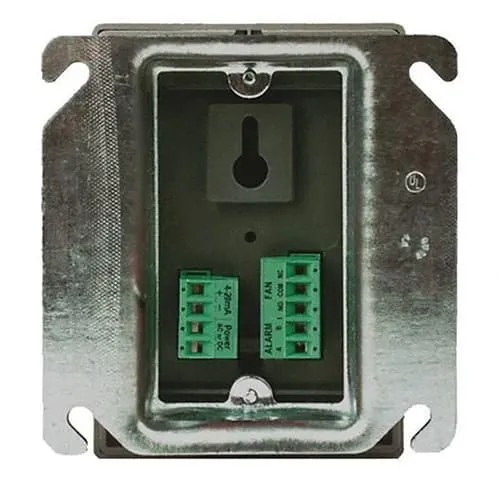

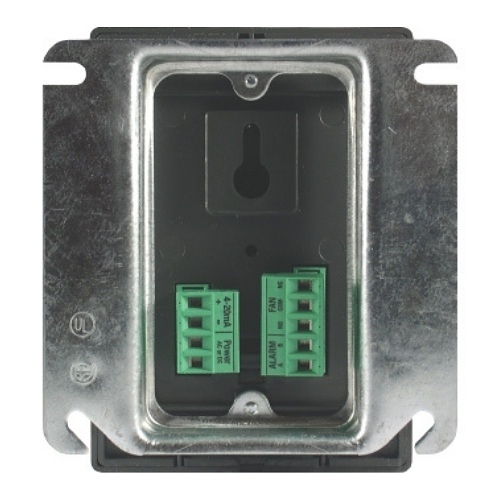

Installation is straightforward — mount to a standard 4" x 4" electrical box and configure via the simple two-button interface. The unit accepts 12–24 VAC or 12–32 VDC power, is factory-calibrated with optional field calibration, and is ETL listed to UL 61010-1 for reliable, code-compliant operation. Integration with building security and monitoring systems is seamless, including compatibility with the Macurco DVP-120 control panel for centralized surveillance and alarm management.
Ideal for parking garages, battery rooms, maintenance bays and other high-risk areas where safety and uptime matter, the GD-6 helps you detect leaks early and automate responses. Contact sales to specify the GD-6 for your facility or add it to your next safety upgrade.
Features
- Continuous protection against combustible leaks with selectable Methane, Propane or Hydrogen sensing to safeguard personnel and property.
- Automatic ventilation and alarm control via 5 A fan relay, 0.5 A alarm relay and 4-20mA output to reduce exposure and speed response.
- Simple integration with building security and monitoring systems, including Macurco DVP-120 compatibility for centralized surveillance.
- Factory-calibrated catalytic sensor with optional field calibration and UL/ETL listing for dependable, code-ready performance.
- Easy installation to standard 4" x 4" electrical boxes and supervised design that signals detector faults to maintain system reliability.
| General Information | |
|---|---|
| Brand Name | Macurco |
| Manufacturer | Aerionics, Inc |
| Product Line | Commercial |
| Product Name | Combustible Gas Detector |
| Product Type | Gas Detector |
| Product Model | GD-6 |
| Product Series | 6 |
| Application/Usage | Commercial |
| Country of Origin | US |
| Manufacturer Part Number | 70-0716-0802-3 |
| Technical Information | |
| Detectable Gas | Hydrogen, Methane, Propane |
| Detectable Medium | Gas |
| Sensing Technology | Catalytic |
| Connectivity Technology | Wired |
| Certifications | |
| UL Listed | Yes |
| Certifications | UL 61010-1 |
| Controls/Indicators | |
| Status Indicators | Yes |
| Physical Characteristics | |
| Color | Gray |
| Depth | 2.10" |
| Width | 4.00" |
| Height | 4.50" |
| Form Factor | Flush Mount, Surface Mount |
| Power Description | |
| Power Source | Battery |
| Input Voltage | 48V DC |
| Product Information | |
| Mount Type | Flush Mount, Surface Mount |
| Miscellaneous | |
| Compatibility | Macurco DVP-120 Control Panel |
