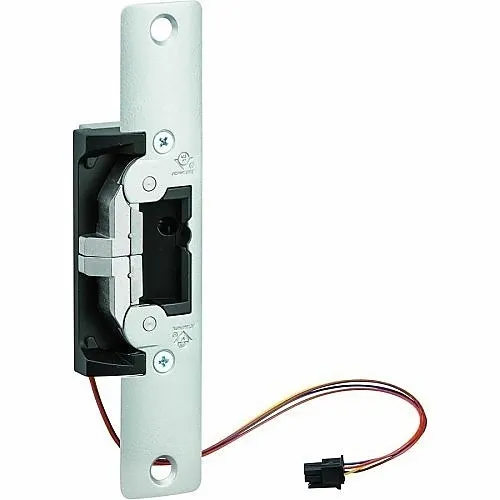

Adams Rite 7431-130 UltraLine 7400 Series Electric Strike for Aluminum Styles, Clear Aluminum
Image of 2
Key Features
- High-security holding: Adjustable stainless-steel keeper delivers over 1,500 lb holding force to protect entrances and reduce forced-entry risk.
- Reliable low-preload operation: Electrically releases with up to 25 lbs of door preload to ensure consistent operation on warped or pressurized doors.
- Flexible power options: Compatible with 12V/16V/24V AC or DC for easy integration into existing access control systems and surveillance setups.
- Ultra-compact, non-handed design: Slim UltraLine profile fits narrow stile aluminum doors and simplifies installation across multiple door types.
- Grade 1 certified durability: ANSI/BHMA A156.31 Grade 1 construction for long service life in commercial and institutional security applications.
Quick Specifications
- Product Model
- 7431
- Brand Name
- Adams Rite by ASSA ABLOY
- Product Name
- UltraLine 7431 Electric Strike
- Product Type
- Electric Strike
Explore the details
Product information
7431-130
Overview
Ideal for secure remote access control of narrow-stile aluminum doors, the Adams Rite by ASSA ABLOY 7431-130 UltraLine electric strike delivers dependable performance where security and reliability matter most. This electric strike is purpose-built for Adams Rite deadlatches and compatible cylindrical locksets, providing over 1,500 lb of holding force in fail-secure mode and electrical release under up to 25 lbs of door preload. With a compact, non-handed aluminum body and adjustable stainless-steel keeper, it minimizes cutout and retrofit work on aluminum, hollow metal, or wood frames.
The 7431 supports 12V/16V/24V AC or DC operation for straightforward integration with access control panels, intercoms, and surveillance monitoring systems. ANSI/BHMA A156.31 Grade 1 certification ensures enterprise-grade durability for high-traffic entries in commercial, healthcare, or education environments. Whether you’re upgrading perimeter security or standardizing entry hardware across a portfolio of buildings, this UltraLine electric strike simplifies installation while maintaining rigorous security standards. Order the Adams Rite 7431-130 today or contact our sales team to specify it for your next access control or surveillance integration project.
Features
- High-security holding: Adjustable stainless-steel keeper delivers over 1,500 lb holding force to protect entrances and reduce forced-entry risk.
- Reliable low-preload operation: Electrically releases with up to 25 lbs of door preload to ensure consistent operation on warped or pressurized doors.
- Flexible power options: Compatible with 12V/16V/24V AC or DC for easy integration into existing access control systems and surveillance setups.
- Ultra-compact, non-handed design: Slim UltraLine profile fits narrow stile aluminum doors and simplifies installation across multiple door types.
- Grade 1 certified durability: ANSI/BHMA A156.31 Grade 1 construction for long service life in commercial and institutional security applications.
| General Information | |
|---|---|
| Brand Name | Adams Rite by ASSA ABLOY |
| Manufacturer | ASSA ABLOY |
| Product Name | UltraLine 7431 Electric Strike |
| Product Type | Electric Strike |
| Product Model | 7431 |
| Manufacturer Part Number | 7431-130 |
| Technical Information | |
| Material | Aluminum |
| Door Handling | Non Handed |
| Holding Strength | 1500 lb |
| Application/Usage | Deadlatch, Door Lock |
| Security Configuration | Fail Safe, Fail Secure |
| Compatible Door Lock Type | Cylindrical |
| Compatible Door Frame Type | Aluminum, Metal, Wood |
| Physical Characteristics | |
| Color | Clear |
| Depth | 0.1" |
| Width | 1.25" |
| Height | 6.87" |
| Power Description | |
| Input Current | 230mA, 440mA, 460mA |
| Input Voltage | 12V AC, 12V DC, 16V DC, 24V AC, 24V DC |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Latch Projection |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Certifications & Standards | UL 1034 ANSI/BHMA A156.31 |
| Environmental Certification | UL |
