Honeywell Home 7939-2WH Surface Mount Contact, 1" Gap, SPDT, White

SKU: 7939-2WH Honeywell Home
SURF MOUNT CONTACT SPDT WH
Product images for Honeywell Home 7939-2WH Surface Mount Contact, 1" Gap, SPDT, White. 2 image(s) available. Click on image to view full size.

Key Features

  • Reliable perimeter protection: surface-mount contact provides consistent door and window monitoring to reduce false alarms and improve site security.
  • Ready-to-install hardware: includes cover, screws and spacers for quick surface or optional flush mounting—minimizes labor on retrofits and new installs.
  • Clean, professional wiring: concealed end-of-line (EOL) resistor cover simplifies circuit termination for wired alarm panels.
  • Durable in harsh conditions: rated to operate down to -40°F and backed by a 2-year limited warranty for long-term reliability.
  • Wide compatibility: Form C (SPDT) reed switch and 1" standard gap work with most wired security, access control and monitoring systems.

Quick Specifications

Product Model
7939
Brand Name
Honeywell Home
Product Name
7939-2 Magnetic Contact
Product Type
Magnetic Contact
View Full Technical Specifications

Explore the details

Product information

7939-2WH

Overview

Keep every entry point monitored reliably with the Honeywell Home 7939-2WH surface-mount magnetic contact. Built for commercial and residential security applications, this compact white sensor delivers dependable door/window detection with a standard 1" gap and a Form C (SPDT) reed switch for versatile wired integration. Installers benefit from included cover, screws and spacers for fast surface or optional flush mounting, while the concealed end-of-line (EOL) resistor keeps wiring neat and compliant with common alarm panels. Rated to operate down to -40°F and supporting a 100 mA contact rating at 28 VDC, the 7939-2WH performs in demanding environments and integrates seamlessly into surveillance, monitoring and access control systems. Its low-profile design minimizes visual impact on door and window frames, helping maintain aesthetics without compromising perimeter protection. Ideal for retrofit projects, multi-site rollouts, and new builds that require dependable wired sensors. Order the Honeywell Home 7939-2WH to streamline installations and strengthen your security monitoring—perfect for alarm contractors and facility managers looking for proven reliability.

Features

  • Reliable perimeter protection: surface-mount contact provides consistent door and window monitoring to reduce false alarms and improve site security.
  • Ready-to-install hardware: includes cover, screws and spacers for quick surface or optional flush mounting—minimizes labor on retrofits and new installs.
  • Clean, professional wiring: concealed end-of-line (EOL) resistor cover simplifies circuit termination for wired alarm panels.
  • Durable in harsh conditions: rated to operate down to -40°F and backed by a 2-year limited warranty for long-term reliability.
  • Wide compatibility: Form C (SPDT) reed switch and 1" standard gap work with most wired security, access control and monitoring systems.
19 of 19 specifications
Technical specifications for Honeywell Home 7939-2WH Surface Mount Contact, 1" Gap, SPDT, White
General Information
Brand Name Honeywell Home
Manufacturer Resideo
Product Name 7939-2 Magnetic Contact
Product Type Magnetic Contact
Product Model 7939
Application/Usage Security System Sensors
Country of Origin MX
Manufacturer Part Number 7939-2WH
Technical Information

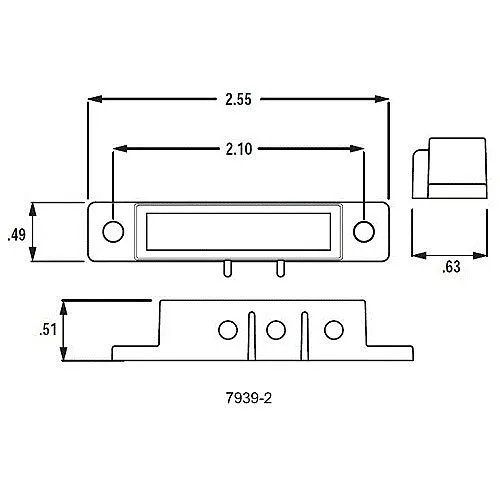

Standard Gap 1.00"
Connectivity Technology Wired
Environmental Conditions
Minimum Operating Temperature -40.0°F
Physical Characteristics
Color White
Power Description
Power Source DC Power
Product Information
Length 2.10"
Mount Type Surface Mount
Switch Type SPDT (Single Pole Double Throw), SPST (Single Pole Single Throw)
Contact Type SPDT (Single Pole Double Throw)
Installation Type Residential
Warranty
Limited Warranty 2-Year
