Resideo 7939WG-BR MPS20 Surface Mount Magnetic Contact with Terminals, 1-1/4" Gap, SPST, Brown
Image of 2
Key Features
- Reliable perimeter detection with a Normally Closed SPST reed switch for consistent security monitoring
- Surface-mount design with included spacers, cover and screws for fast, tool-friendly installation
- 1-1/4" standard gap gives flexible placement on doors and windows for residential and light-commercial sites
- Concealed end-of-line (EOL) resistor simplifies wiring and maintains a clean, tamper-resistant appearance
- Durable operation down to -40°F and a discreet brown finish that blends with wood frames and trim
Quick Specifications
- Product Model
- 7939WG
- Brand Name
- Resideo
- Product Name
- 7939WG Magnetic Contact
- Product Type
- Magnetic Contact
Explore the details
Product information
7939WG-BR
Overview
Protect doors and windows with a dependable, easy-to-install magnetic contact designed for everyday security monitoring. The Resideo 7939WG-BR magnetic contact provides reliable closed-circuit detection using a SPST (Normally Closed) reed switch and a roomy 1-1/4" standard gap—ideal for varied mounting offsets on residential or light-commercial openings. Its surface-mount form factor ships with spacers, cover and screws so you can deploy sensors quickly, using screws or double-sided adhesive for hybrid installation. The cover conceals the end-of-line (EOL) resistor for neat wiring and improved tamper resistance, and the brown finish blends into wood doors and frames for discreet surveillance. Rated to operate to -40°F and built for wired security systems, this contact supports series wiring on a single zone and integrates easily with alarm panels for perimeter protection and monitoring. Choose the Resideo 7939WG-BR when you need a low-voltage sensor that balances reliability, simplicity and a clean aesthetic—order now to strengthen your security and surveillance setup.
Features
- Reliable perimeter detection with a Normally Closed SPST reed switch for consistent security monitoring
- Surface-mount design with included spacers, cover and screws for fast, tool-friendly installation
- 1-1/4" standard gap gives flexible placement on doors and windows for residential and light-commercial sites
- Concealed end-of-line (EOL) resistor simplifies wiring and maintains a clean, tamper-resistant appearance
- Durable operation down to -40°F and a discreet brown finish that blends with wood frames and trim
| General Information | |
|---|---|
| Brand Name | Resideo |
| Manufacturer | Resideo |
| Product Name | 7939WG Magnetic Contact |
| Product Type | Magnetic Contact |
| Product Model | 7939WG |
| Manufacturer Part Number | 7939WG-BR |
| Technical Information | |
| Contact Form | Form A |
| Standard Gap | 1.26" |
| Application/Usage | Security System Sensors |
| Connectivity Technology | Wired |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F |
| Physical Characteristics | |
| Color | Brown |

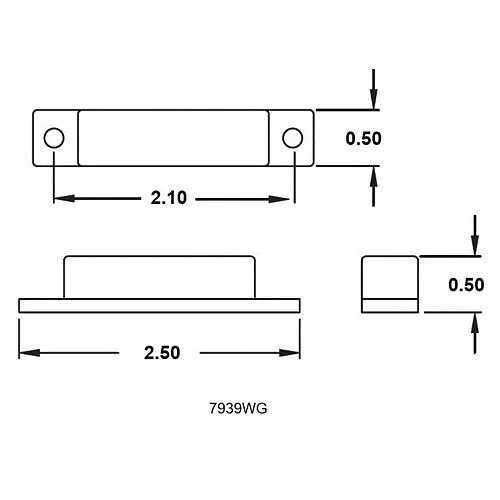

| Width | 0.5" |
| Height | 0.5" |
| Power Description | |
| Power Source | DC Adapter |
| Input Current | 300mA |
| Input Voltage | 30V DC |
| Product Information | |
| Length | 2.5" |
| Mount Type | Surface Mount |
| Switch Type | Reed Switch |
| Contact Type | Normally Closed, SPST |
| Installation Type | Hybrid |
| Miscellaneous | |
| Features | Ideal for residential or commercial use |
