Bose Professional 794042-6650 Speaker, Arenamatch AM10/80 Outdoor Loudspeaker
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 5
Key Features
- Precise, consistent coverage across large outdoor venues using DeltaQ array technology to target audiences and reduce hot spots
- High-impact audio with a 14-inch neodymium woofer and six titanium-diaphragm drivers for clear vocal intelligibility and musical detail at high SPLs
- Weather‑rated construction and three-layer stainless steel grille for reliable, low-maintenance outdoor operation in stadiums and arenas
- Fewer modules required for full coverage lowers installation time, rigging complexity, and overall system cost
- EN54-24 certified compatibility for voice-alarm, public-safety, and monitoring integrations, simplifying security and emergency communications
Quick Specifications
- Product Model
- AM10/80
- Brand Name
- Bose Professional
- Product Line
- ArenaMatch
- Product Name
- ArenaMatch AM10 DeltaQ Array Loudspeaker
Product Information Tabs
Overview

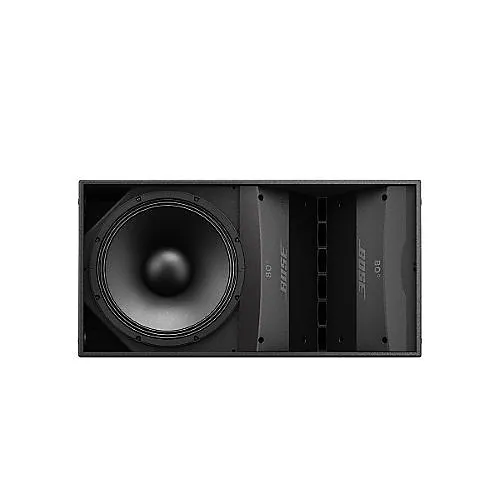

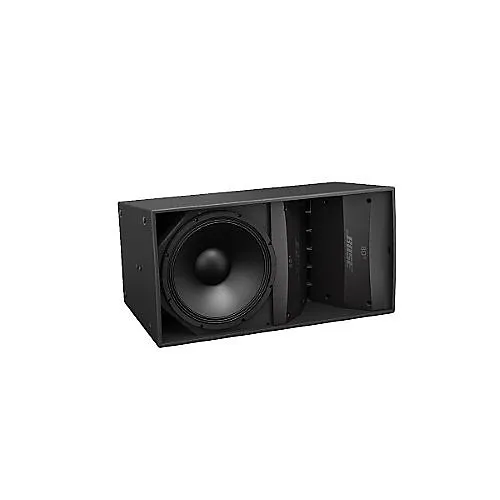

Deliver intelligible, high-SPL audio to every seat in your venue with the Bose Professional ArenaMatch AM10/80 outdoor loudspeaker. Designed for stadiums, arenas, and large open-air environments, this pro speaker uses DeltaQ array technology to precisely shape coverage so you get consistent sound with fewer modules. The AM10/80 pairs a 14-inch neodymium woofer with six titanium-diaphragm compression drivers and is rated at 600W RMS, producing clear vocals and full musical reproduction across a 65 Hz to 16 kHz range.
Built for durability, the ArenaMatch AM10/80 features water-resistant components, an industrial polyurethane finish, and a three-layer stainless steel grille to withstand direct-exposure outdoor installations. It also carries EN54-24 certification, making it suitable for voice-alarm systems and integration with security, surveillance, and monitoring infrastructures for reliable emergency messaging. Installers benefit from interchangeable waveguides and standard M12 mounting points to speed deployment and simplify array configuration.
Specify the Bose ArenaMatch AM10/80 when you need dependable, high-performance outdoor sound and seamless public-safety integration. Contact our systems specialists to design a stadium or venue audio solution tailored to your project.
Features
- Precise, consistent coverage across large outdoor venues using DeltaQ array technology to target audiences and reduce hot spots
- High-impact audio with a 14-inch neodymium woofer and six titanium-diaphragm drivers for clear vocal intelligibility and musical detail at high SPLs
- Weather‑rated construction and three-layer stainless steel grille for reliable, low-maintenance outdoor operation in stadiums and arenas
- Fewer modules required for full coverage lowers installation time, rigging complexity, and overall system cost
- EN54-24 certified compatibility for voice-alarm, public-safety, and monitoring integrations, simplifying security and emergency communications
| General Information | |
|---|---|
| Brand Name | Bose Professional |
| Manufacturer | Bose Corporation |
| Product Line | ArenaMatch |
| Product Name | ArenaMatch AM10 DeltaQ Array Loudspeaker |
| Product Type | Speaker |
| Product Model | AM10/80 |
| Product Series | AM |
| Manufacturer Part Number | 794042-6650 |
| Technical Information | |
| Material | Neodymium |
| Impedance | 8 ohms |
| Sensitivity | 106dB |
| Crossover Type | 2-way |
| Application/Usage | Arena, Entertainment Center, Fire Alarm, Stadium |
| Audio | |
| RMS Output Power | 600W |
| Maximum Frequency Response | 16 kHz |
| Minimum Frequency Response | 65Hz |
| Physical Characteristics | |
| Size | 14" |
| Color | Black |
| Depth | 16.54" |
| Width | 30.8" |
| Height | 16.1" |
| Weight | 80.03lb |
| Durability | Water Resistant |
| Miscellaneous | |
| Features | Adapt to a variety of configurations � all models ship standard with bi-amp capability, passive crossover, and 70/100V transformer inputs, Deliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose Professional EMB2S titanium-diaphragm neodymium compression drivers, Easily customize horizontal coverage with replaceable waveguides that allow you to further customize coverage and even form asymmetrical patterns for improved acoustic performance in left/right arrays, EN 54-24 certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings, refer to the installation guide for specifics, Improve sound quality, consistency, and vocal clarity with DeltaQ array technology, which allows directivity, or Q, to vary in each module to more precisely match coverage to audience area, Provide full coverage with fewer modules � 10 deg, 20 deg, and 40 deg modules allow you to create arrays that improve sight lines, reduce weight, and lower system costs by requiring fewer modules compared to conventional arrays, Rated for direct-exposure outdoor installations, three-layer stainless steel grille, woofer cone coating, industrial polyurethane exterior coating, and molded input cover, Reduce commissioning time by using 40 deg modules for point-source applications and 10 deg, 20 deg and 40 deg modules for line arrays all with the same transducers for consistent tonal balance, Save time during installation using Bose Professional accessory mounting hardware or use the standard M12 threaded inserts to interface with custom array frames, Streamline the design process by combining with complementary Bose Professional products, such as ArenaMatch Utility zone-fill loudspeakers, PowerMatch amplifiers, and ControlSpace DSP |
| Indoor/Outdoor | Outdoor |
